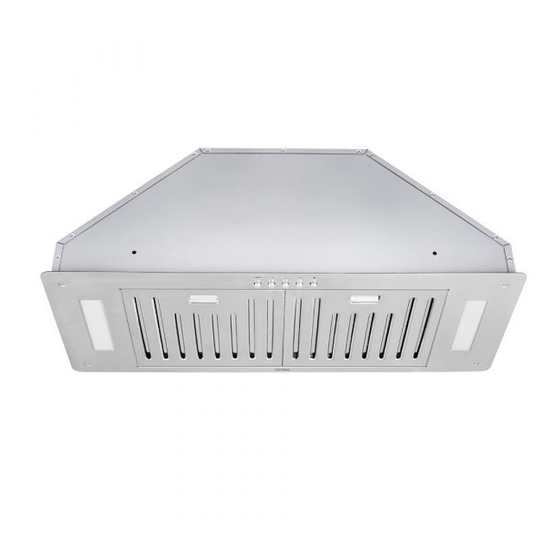

- Page 1 KOBE Range Hoods Brillia Series INX28 SQ-700-1 Series INX2830SQB-700-1 (30”) Model No.: INX2830SQH-700-1 (30”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL...
- Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of packages. 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/ electrician test the unit before installation. IF THERE IS ANY PROBLEM: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTRUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 5 OPERATING INSTRUCTIONS ....................7 MAINTENANCE ......................... 8 SPECIFICATIONS ........................9 MEASUREMENTS & DIAGRAMS .....................10 PART LIST ..........................11 CIRCUIT DIAGRAM ........................13 TROUBLE SHOOTING ......................14 WARRANTY ..........................15 WARRANTY INFORMATION FORM ..................17... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS authorized agents will automatically void the warranty. KOBE RANGE HOODS will not held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What to Do In The Event Of a Range Top Grease Fire 1) SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) MODEL NO.: INX2830SQB-700-1 (30”) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Quick Reference Guide {D} Baffle Filter – 2pcs for 30” {E} Aluminum Filter – 2pcs for 30”... - Page 7 (Must keep all material for returns or refunds) MODEL NO.: INX2830SQH-700-1 (30”) Range Hood Box {H} KOBE Range Hood Warranty Registration Card {J} Quick Reference Guide {K} Honeycomb Filter – 2pcs for 30” {L} Aluminum Filter – 2pcs for 30”...
-
Page 8: Installation
1. Read any provided document(s). 2. Test the range hood by temporarily connecting it to an outlet and turning ON the fan and lights. 3. If you run into any problems, contact KOBE Range Hoods. Venting Requirements 4. The range hood has top 6” round exhaust (default). - Page 9 Clearance 8. Clearance is the distance between the cooktop and the bottom of the range hood. The recommended minimum clearance for this model is 26” and the maximum clearance is 30”. 9. It is important to install the hood at the recommended clearance. Installing too low could result in damage and/or fire hazard while installing too high may result in reduced performance and efficiently.
-
Page 10: Operating Instructions
OPERATING INSTRUCTIONS 3-Speed Mechanical Control Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as needed. To operate the fan function • Press button to choose from speed o Q = QuietMode™... -
Page 11: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and filters regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 12: Specifications
SPECIFICATIONS INX2830SQB-700-1 / 30” MODEL / SIZE INX2830SQH-700-1 / 30” COLOR 20-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 240W / 2.0A NUMBER OF BLOWERS DESIGN Seamless / Satin Finish BLOWER TYPE Single Horizontal Squirrel Cage Top 6” Round EXHAUST... -
Page 13: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All inch measurements are converted from millimeters. Inch measurements are estimated. ***All measurements in ( ) are millimeters. INX2830SQB-700-1 (30”) MODEL NO.: INX2830SQH-700-1 (30”) Bottom View Front View... -
Page 14: Part List
PART LIST MODEL NO.: INX2830SQB-700-1 (30”) DESCRIPTION MODEL / SIZE PART NO. 6” Exhaust Vent 02-003 LED Light Driver 02-001 Capacitor (12uF, 250 VAC) 02-004 LED Light (3W) x 2 02-013 Control Switch 02-015 Blower System YYC-148-3 Aluminum Filter 02-017... - Page 15 MODEL NO.: INX2830SQH-700-1 (30”) DESCRIPTION MODEL / SIZE PART NO. 6” Exhaust Vent 02-003 LED Light Driver 02-001 Capacitor (12uF, 250 VAC) 02-004 LED Light (3W) x 2 02-013 Control Switch 02-015 Blower System YYC-148-3 Aluminum Filter 02-017 (238mm x 225mm) Honeycomb Filter 02-014 (238mm x 225mm)
-
Page 16: Circuit Diagram
CIRCUIT DIAGRAM INX2830SQB-700-1 (30”) MODEL NO.: INX2830SQH-700-1 (30”) -
Page 17: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a voltage meter Installation, both motors to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 18: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original invoice from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 19 THIS WARRANTY WILL BE VOIDED BY: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alternation, modification not authorized by KOBE. 3. Duct alternation, modification and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercial, outdoor or other usage other than residential indoor usage.
-
Page 20: Warranty Information Form
3. Serial No. :_______________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 21 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
