Page 1: Kobe Range Hood

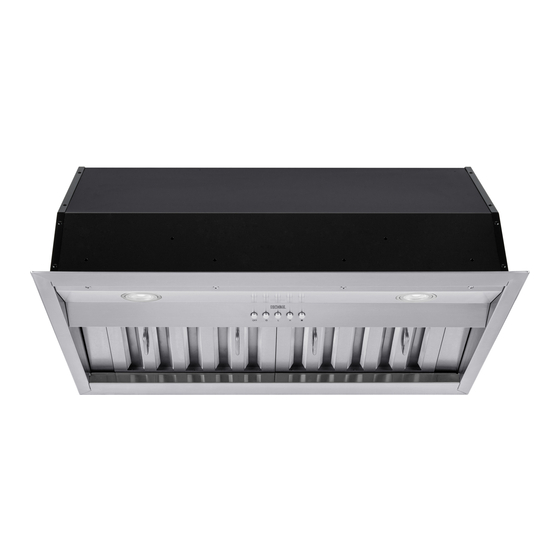

KOBE Range Hood Brillia Series INX26 SQB-700-3 Series Model No.: INX2630SQB-700-3 (30”) INSTALLATION INSTRUCTIONS AND OPERATION MANUAL... - Page 2 IMPORTANT READ THIS FIRST READ BEFORE INSTALLATION 1. Carefully check all contents of package(s). 2. Thoroughly inspect the unit for any shipping damages, cosmetic damages or defects. 3. Have a certified contractor/electrician test the unit before installation. IF THERE IS ANY PROBLEM: 1.
-
Page 3: Table Of Contents
[ENGLISH] - READ AND SAVE THESE INSTUCTIONS - CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..................1 COMPONENTS OF PACKAGE ....................3 INSTALLATION ......................... 4 OPERATING INSTRUCTIONS ....................9 MAINTENANCE ........................10 SPECIFICATIONS ........................11 MEASUREMENTS & DIAGRAMS .....................12 PARTS LIST ..........................14 CIRCUIT DIAGRAM ........................16 TROUBLE SHOOTING ......................17 WARRANTY ..........................18 WARRANTY INFORMATION FORM ..................20... -
Page 4: Important Safety Instructions
KOBE RANGE HOODS’ authorized agents will automatically void the warranty. KOBE RANGE HOODS will not be held responsible for any damages to personal property or real estate or any bodily injuries whether caused directly or indirectly by the range hood. - Page 5 What To Do In The Event Of a Range Top Grease Fire 1) SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.
-
Page 6: Components Of Package
COMPONENTS OF PACKAGE (Must keep all material for returns or refunds) Range Hood Box {A} KOBE Range Hood {B} Warranty Registration Card {C} Quick Reference Guide {D} Baffle Filter x 2pcs {E} Oil Tunnel x 1pcs {F} Stainless Steel Spacer x 2pcs {G} 6”... -
Page 7: Installation
INSTALLATION PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING Calculation before Installation To calculate installation, please refer to TABLE 1. (All calculation in inches) - FORE BUILT-IN / INSERT - TABLE 1 A = Height of Floor to Ceiling B = Height of Floor to Counter Top (Standard: 36”) C = Height of Counter Top to Wood Frame Bottom (Recommended 26”... - Page 8 Figure 1 Preparation Before Installation NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT DEBRIS FROM ENTERING THE VENT OPENING. • Decide the location of the venting pipe from the hood to the outside. Refer to Figure 1. • A straight, short vent run will allow the hood to perform more efficiently.
- Page 9 8) For Top 3-1/4” x 10” Rectangular installation only: Figure 5 Remove the pre-installed Round Exhaust Plate (Refer to Figure 5). Keep screws to attach Rectangular Exhaust Plate and Rectangular Exhaust Adapter. Place Rectangular Exhaust Plate over vent and secure with 3 screws (Refer to Figure 6).
- Page 10 Figure 10 Ductwork Installation 11) Determine and make all necessary cuts in the wall or ceiling for the ductwork. NOTE: Install the ductwork before installing the insert. 12) Use steel pipe to connect the exhaust on the hood to the ductwork above.
-
Page 11: Operating Instructions
OPERATING INSTRUCTIONS 3-Speed Mechanical Control NOTE: For best result, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust speed as necessary. To operate the fan function • Press button to choose from speed o Q = QuietMode™... -
Page 12: Maintenance
MAINTENANCE For optimal performance, clean the range hood surface and baffles regularly. To Clean Hood Surface CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS. ***Regular care will help preserve its fine appearance. 1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth. 2. -
Page 13: Specifications
SPECIFICATIONS INX2630SQB-700-3 / 30” MODEL / SIZE COLOR 20-Gauge Commercial Grade Stainless Steel CONSUMPTION / AMPERE 224W / 1.5A VOLTAGE 110V 60Hz NUMBER OF MOTORS DESIGN Seamless / Satin Finish FAN TYPE: CENTRIFUGAL Single Horizontal Squirrel Cage Top – EXHAUST 6”... -
Page 14: Measurements & Diagrams
MEASUREMENTS & DIAGRAMS ***All ( ) are in millimeter. ***All inch measurements are converted from millimeters. Inch measurements are estimated. MODEL NO.: INX2630SQB-700-3 (30”) - Page 15 Side View Bottom View Back View Top View Front View...
-
Page 16: Parts List
PARTS LIST MODEL NO.: INX2630SQB-700-3 (30”) DESCRIPTION MODEL/SIZE PART NO. Rectangular Exhaust Vent Adapter 02-018 Rectangular Exhaust Plate 02-019 Round Exhaust Plate 02-020 LED Light (3W) x2 02-005 Control Switch 02-006 LED Light Driver 02-001 Capacitor (12uF) x1 02-004 Blower System 02-021 Stainless Steel Spacer 02-022... - Page 17 MODEL NO.: INX2630SQB-700-3 (30”)
-
Page 18: Circuit Diagram
CIRCUIT DIAGRAM MODEL NO.: INX2630SQB-700-3 (30”) -
Page 19: Trouble Shooting
TROUBLE SHOOTING Issue Possible Cause Solution After The power is not on. Make sure the circuit breaker and the unit’s power is ON. Use a voltage Installation, both motors meter to check the power supply. and lights are The wire connection is not secure. Check and tighten wire connection. -
Page 20: Warranty
ONE-YEAR LIMITED LABOR WARRANTY ON KOBE BRILLIA SERIES: For one year from the date of your original from a KOBE authorized dealer, we will repair any parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to replace, rather than repair the product free of charge at our sole discretion. - Page 21 THIS WARRANTY WILL BE VOIDED WHEN: 1. Improper installation and failure to follow installation instructions. 2. Any repair, alteration, modification not authorized by KOBE. 3. Duct alteration, modification and connection. 4. Incorrect electric current, voltage or wiring. 5. Improper usage of the product such as commercially, outdoor or other usage other than its intended purpose which is residential indoor usage only.
-
Page 22: Warranty Information Form
3. Serial No. : __________________________ For warranty service or spare parts purchase in US, contact: KOBE Service Center Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880 Toll Free: 1-877-BUY-KOBE (289-5623) For warranty service or spare parts purchase in Canada, contact: Email (best): customer.service@koberangehoods.com Phone: 1-626-775-8880... - Page 23 Arcadia, CA 91006 USA www.koberangehoods.com This KOBE hood is made for use in the USA and CANADA only. We do not recommend using this hood overseas as the power supply may not be compatible and may violate the electrical code of that country. Using a KOBE hood overseas is at your own risk and will void your warranty.
Need help?
Do you have a question about the INX26 SQB-700-3 Series and is the answer not in the manual?
Questions and answers

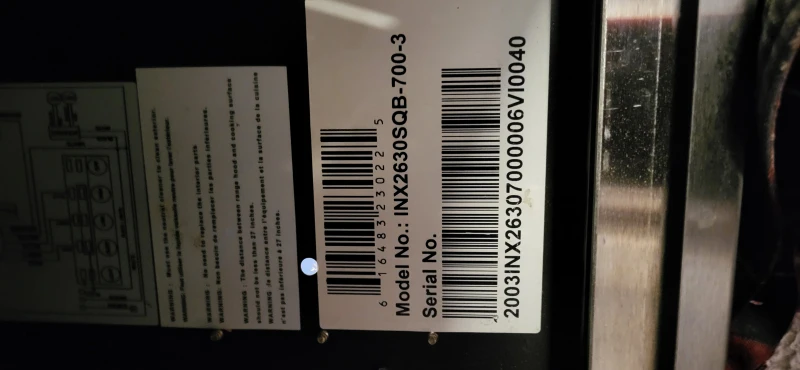

I **** repairing a customers vent hood and the control switch seems to be bad
The manual does not provide specific instructions for replacing the control switch. However, it mentions that if the control switch is defective, it should be replaced. To replace the control switch on a KOBE INX26 SQB-700-3 Series vent hood, follow these general steps:
1. Turn off power – Ensure the range hood is unplugged or the circuit breaker is switched off.
2. Access the control panel – Remove any screws or panels necessary to reach the control switch.
3. Disconnect the switch – Carefully disconnect the wiring from the defective control switch.
4. Install the new switch – Connect the new control switch, ensuring all wiring is secure.
5. Reassemble the unit – Replace any panels or screws removed earlier.
6. Restore power and test – Turn the power back on and test the switch to ensure proper operation.
If unsure, consult a certified electrician or KOBE customer service.
