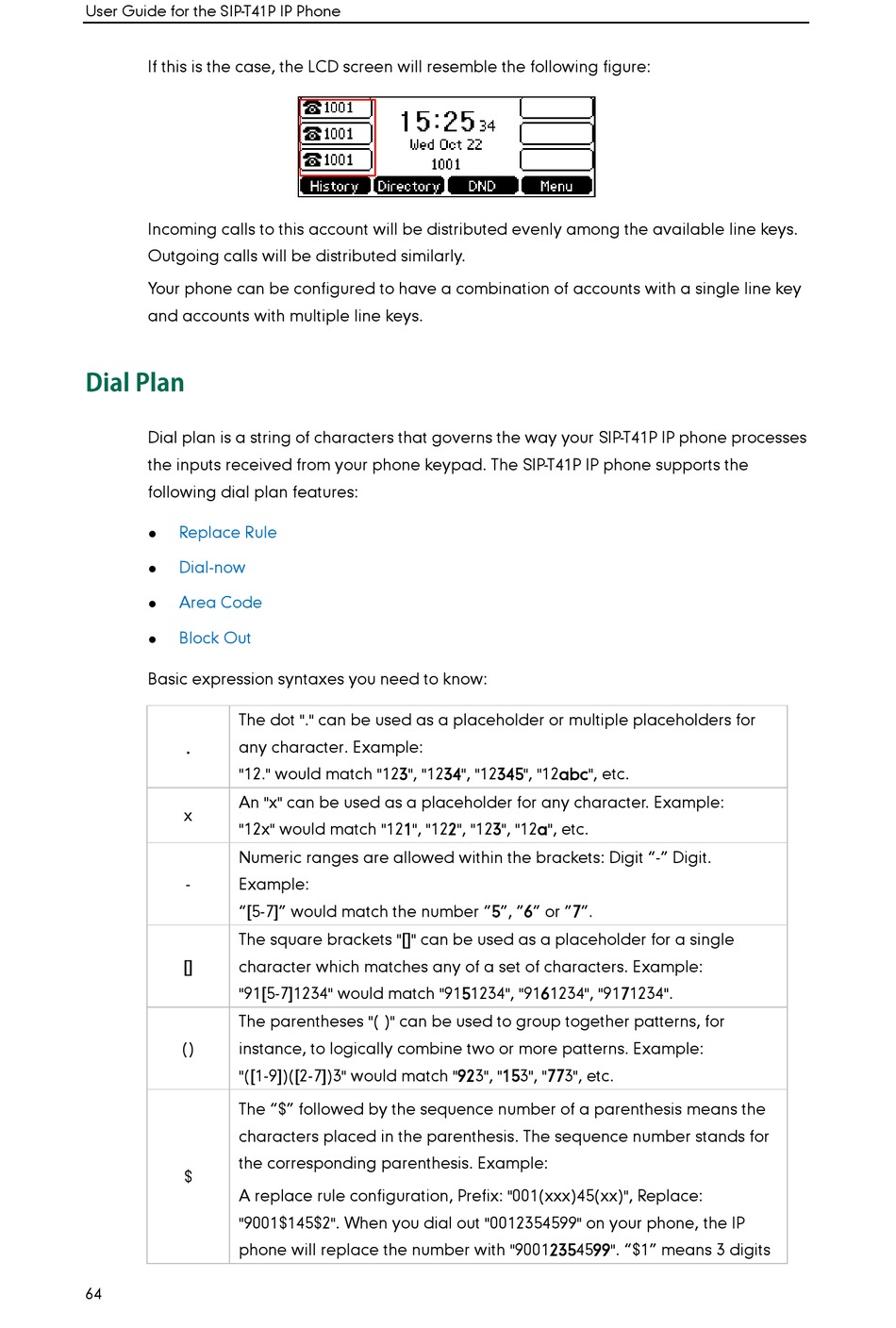

Yealink SIP-T41P User Manual page 76

User Guide for the SIP-T41P IP Phone
If this is the case, the LCD screen will resemble the following figure:
Incoming calls to this account will be distributed evenly among the available line keys.
Outgoing calls will be distributed similarly.
Your phone can be configured to have a combination of accounts with a single line key
and accounts with multiple line keys.
Dial plan is a string of characters that governs the way your SIP-T41P IP phone processes
the inputs received from your phone keypad. The SIP-T41P IP phone supports the
following dial plan features:
Replace Rule

Dial-now

Area Code

Block Out

Basic expression syntaxes you need to know:
The dot "." can be used as a placeholder or multiple placeholders for
any character. Example:
.
"12." would match "123", "1234", "12345", "12abc", etc.
An "x" can be used as a placeholder for any character. Example:
x
"12x" would match "121", "122", "123", "12a", etc.
Numeric ranges are allowed within the brackets: Digit "-" Digit.
- Example:
"[5-7]" would match the number "5", "6" or "7".
The square brackets "[]" can be used as a placeholder for a single
[] character which matches any of a set of characters. Example:
"91[5-7]1234" would match "9151234", "9161234", "9171234".
The parentheses "( )" can be used to group together patterns, for
() instance, to logically combine two or more patterns. Example:
"([1-9])([2-7])3" would match "923", "153", "773", etc.
The "$" followed by the sequence number of a parenthesis means the
characters placed in the parenthesis. The sequence number stands for
the corresponding parenthesis. Example:
$
A replace rule configuration, Prefix: "001(xxx)45(xx)", Replace:
"9001$145$2". When you dial out "0012354599" on your phone, the IP
phone will replace the number with "90012354599". "$1" means 3 digits
64
