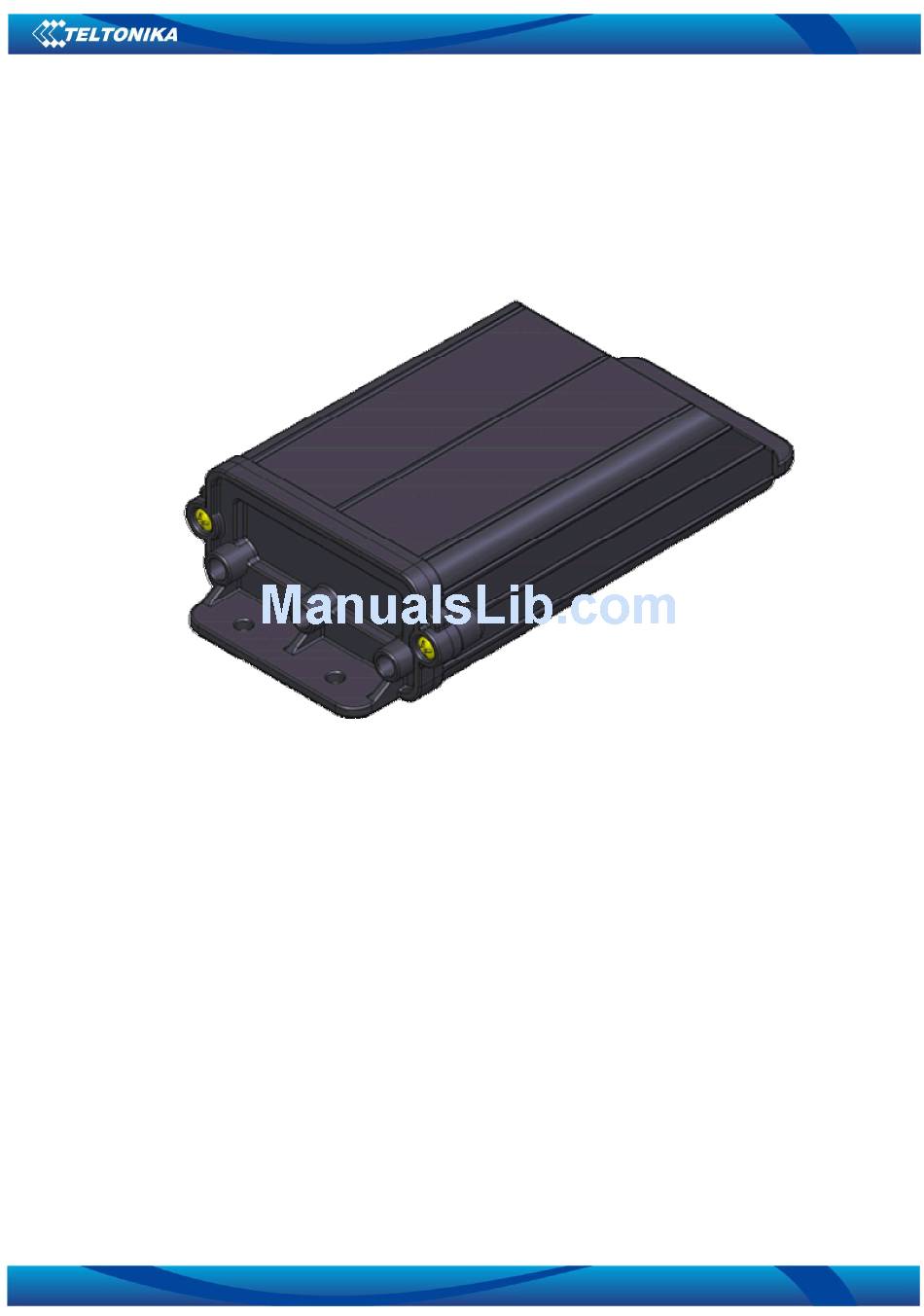

- Page 1 AT1000 Quick Start Guide V1.0...
- Page 2 INTRODUCTION AT1000 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. Device operates using internal batteries only and its main applications are tracking of objects which do not have onboard power supply.
- Page 3 The device uses a 5V...7.2V DC batteries. To avoid mechanical damage, it is advised to transport the AT1000 device in an impact-proof package. The device is designed to be mounted in a zone of limited access. All related devices must meet the requirements of standard EN 60950-1.
- Page 4 Package contents The AT1000 device is supplied to the customer in a cardboard box containing all the equipment that is necessary for operation. The package contains: 1. The AT1000 device. 2. Micro USB cable. 3. 2 x 3.6V batteries 4. AT1000 drivers download link paper...
-
Page 5: Preparation Of The Device
Open AT1000 device REMOVE INULATING TAPES Open SIM card lid and insert the SIM card Close SIM card lid Push SIM card lid in the shown direction to lock it and assemble AT1000 ... - Page 6 Connecting AT1000 to PC Figure 1. Connecting micro USB cable to AT1000 When AT1000 is connected for the first time to PC, you will be prompted with 'Found New Hardware' window. Click 'Cancel' to stop automatic installation process. Figure 2. Found New Hardware window...
- Page 7 Extract and launch VCPDriver_V1.1_Setup.exe. This driver is used to detect AT1000 device connected to the computer. Click 'Next' in driver installation window. Figure 3. Driver installation window Installation wizard will prompt you with several windows telling that software did not pass Windows Logo test.
- Page 8 PC and reinstall the drivers. Batteries AT1000 is autonomous device which uses two R14 (ANSI standard) batteries. Batteries used in this device are single charge Li based type and should have the following parameters: Voltage: 3.6V...
- Page 9 IMEI number with it. Please download latest version of AT1000 Configurator from Teltonika webpage: http://avl1.teltonika.lt/downloads/AT1000/. To use Configurator with AT1000, make sure that batteries are inserted in the device and it is connected to PC. In the configurator please choose correct COM port used by device. To find out which COM port is used follow these steps: ...
- Page 10 Save to File: click this button to save manually entered setting to a file. Read from flash: reads settings that are already stored in AT1000 device. Write to flash: saves the settings to AT1000 memory. Note, that you have to load these settings from file or enter them manually first.
-
Page 11: Updating Firmware To The Latest Version
Teltonika is constantly working on improvement of the functionality of the devices, and strongly recommends using last versions of the firmware. AT1000 Updater is software used to update the device with the latest firmware (FW) version. Please download the latest version of AT1000 Updater from Teltonika webpage: http://avl1.teltonika.lt/downloads/AT1000/.
