https://wiki.teltonika-gps.com/view/FMB641_General_description
FMB641 General description
Main Page
>
Professional Trackers

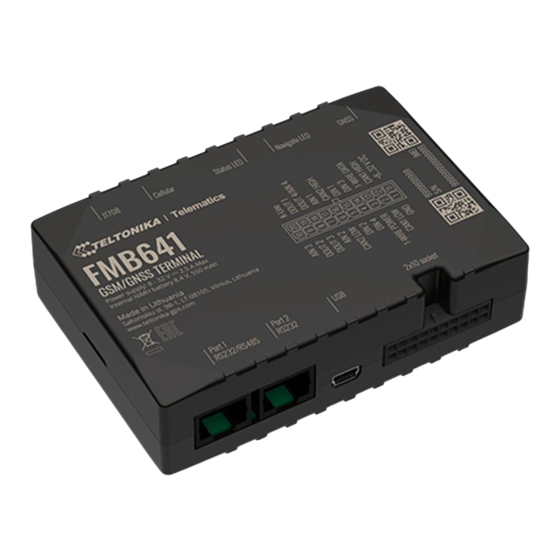

Teltonika FMB641 is an updated version of the current most popular GNSS, GSM terminal for
PROFESSIONAL applications FMB640. Compared to FMB640 - FMB641 has a new processor that
improves the device's computation power therefore it can be tailored to more specific use cases.
Switchable CAN terminators that will allow you to use the device in a CAN network with numerous
nodes. Lastly, it can be powered via USB for an easier configuration process. All the features that
are supported by FMB640 are also supported by FMB641, for the purpose of maximizing your fleet
efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K-
Line), remote tachograph file download, various third party RS232 or RS485 devices support and
Dual-SIM or eSIM compatibility. The terminal is suitable for applications like international logistics,
refrigerated transport, agriculture, construction & mining, security & emergency services, and even
more.
Contents
1 Package contents
2 Basic characteristics
Package contents
Usually, the FMB640 device sample is supplied to the customer in a cardboard box containing all the
equipment that is necessary for operation. The package contains:
FMB640 device;
4 screws for assembling device
GPS/GLONASS antenna
GSM antenna
USB cable
Port 1/2 cable
Ni-MH Rechargeable battery, 8.4V, 550 mA.
Input and output power supply cable with 2x10 connection pins.
Basic characteristics
Cellular:
GSM/GPRS technology
>
FMB641
>
FMB641 Manual
> FMB641 General description

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMB641 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika FMB641

Summary of Contents for Teltonika FMB641

  • Page 1: Table Of Contents

    Lastly, it can be powered via USB for an easier configuration process. All the features that are supported by FMB640 are also supported by FMB641, for the purpose of maximizing your fleet efficiency with features like FMS CAN data (J1939), fuel CAN data (J1708), tachograph live data (K- Line), remote tachograph file download, various third party RS232 or RS485 devices support and Dual-SIM or eSIM compatibility.
  • Page 2 2G bands: Quad-band 800/850/900/1900 MHz GPRS Mobile Station Class B GPRS Multi-Slot class 12 (up to 240 kbps) SMS (text, data) GNSS features: Tracking: 33/ 99 acquisition channels -165 dBM sensitivity Hot start <1s Warm Start < 25s Cold start < 35s NMEA-183 protocol GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS Accuracy <...

  • Page 3: Technical Features

    Smart data acquisition based on: Time; Speed; Angle; Distance; Ignition or any other I/O event; Sending acquired data via GPRS; GPRS and SMS I/O events; Virtual odometer; Jamming detection; Configurable using Secured SMS Commands; 2x SIM card; 1x eSIM; Switchable CAN terminators Overvoltage protection (compatible with pulse 5b);...

  • Page 4: Technical Information About Internal Battery

    GPRS: average 67 mA Nominal: average 39 rms GNSS sleep: average 24 2 W max. Current consumption at 12 V Deep Sleep: average 7,5 Online Deep Sleep: average 2,4 mA GPRS: average 35 mA Nominal: average 20 mA GNSS sleep: average 2 W max.

  • Page 5: Electrical Characteristics

    following internal test results in different modes and sending frequencies: Min Period (data Send Period Starting Cut off Mode: saving (data sending Time achieved Voltage Voltage frequency) frequency) Operatin 471 min (7 hours 10 seconds 60 seconds 10,1V 8,3V 51 minutes) Operatin 546 min (9 hours 60 seconds...

  • Page 6: Absolute Maximum Ratings

    Input voltage (Recommended Operating Conditions), Range 2 Input resistance, Range 2 kΩ Output Supply Voltage 1-Wire: Supply voltage +4.5 +4.7 Output inner resistance Ω Output current (U > 3.0 V) Short circuit current (U = 0) CAN Interface: 120/6 Internal terminal resistors CAN bus Ω...
