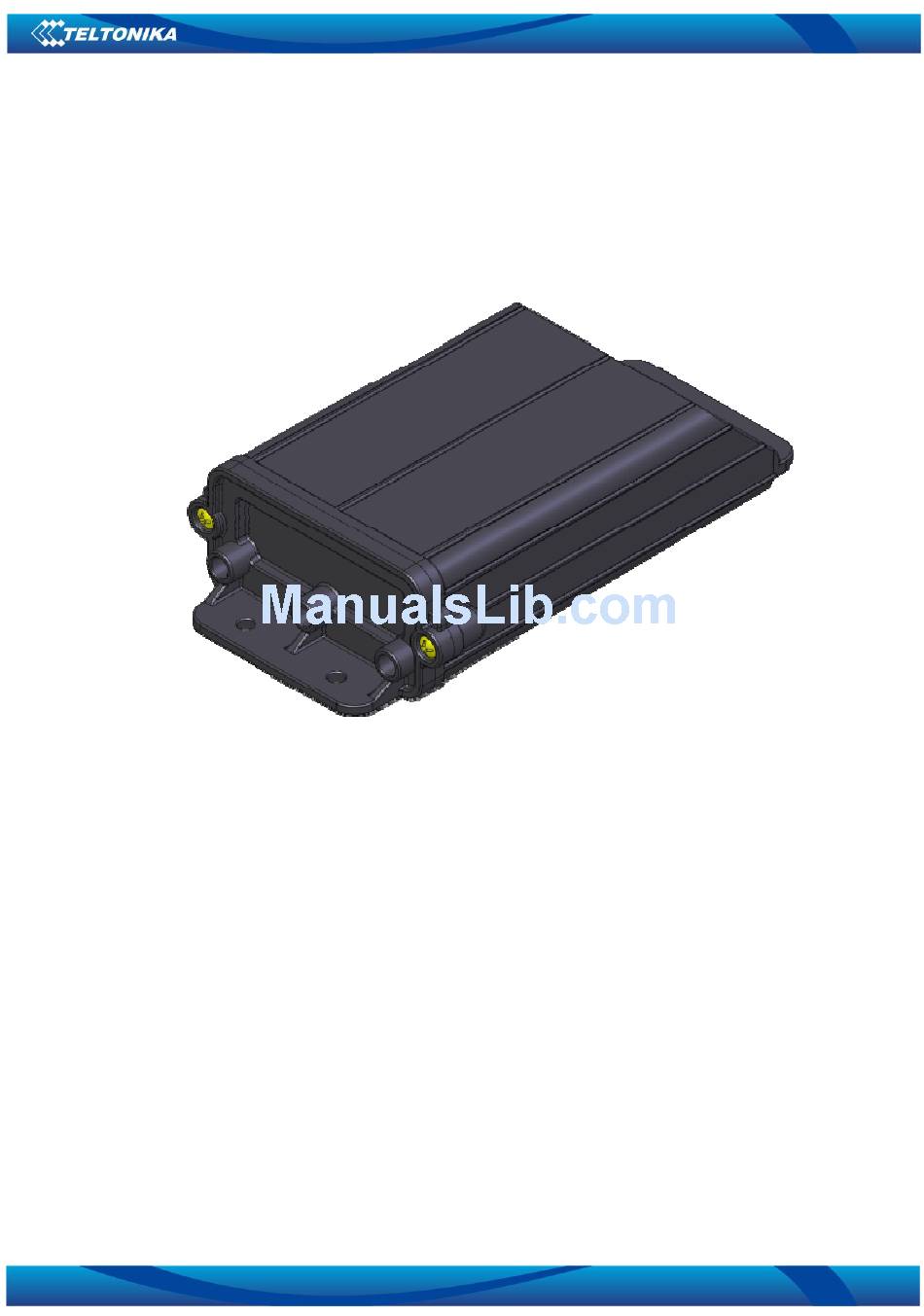

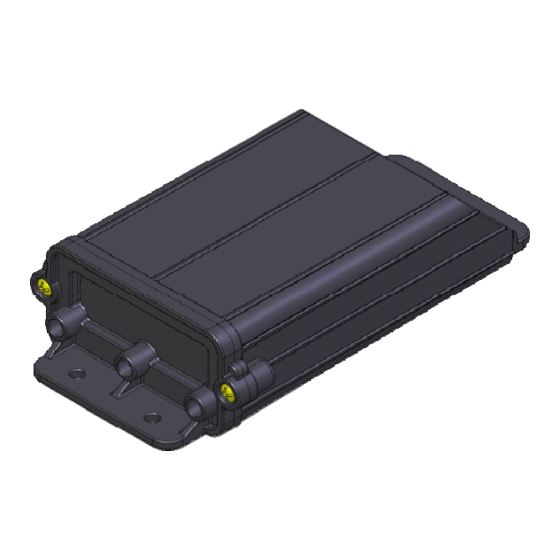

- Page 1 AT1000 User Manual V1.3...
-
Page 2: Table Of Contents
ECHANICAL CHARACTERISTICS ........................7 LECTRICAL CHARACTERISTICS ..............................7 CCESSORIES PREPARATION OF THE DEVICE...................8 ............................8 NSERTING CARD ..........................9 NSERTING THE BATTERIES AT1000 PC ........................10 ONNECTING AT1000 :....................... 10 LOSING DEVICE COVER CONFIGURATOR ......................11 OPERATIONAL BASICS ....................12 ................................12 ROFILES ................................13 VENTS CONFIGURATION...................... - Page 3 UPDATING FIRMWARE TO THE LATEST VERSION..........28 MOUNTING RECOMMENDATIONS ................29 CHANGES LOG......................30...
-
Page 4: Introduction
1. INTRODUCTION AT1000 is a terminal with GPS and GSM connectivity, which is able to determine the object’s coordinates and transfer them via the GSM network. This device is perfectly suitable for applications where location acquirement of remote objects is needed. Device operates using internal batteries only and its main applications are tracking of objects which do not have onboard power supply. -
Page 5: Instructions Of Safety
The device uses a 5V...7.2V DC batteries. To avoid mechanical damage, it is advised to transport the AT1000 device in an impact-proof package. The device is designed to be mounted in a zone of limited access. All related devices must meet the requirements of standard EN 60950-1. -
Page 6: About Document
• AC/DC – Alternating Current/Direct Current. (check out new album Black Ice!) • Record – AVL data stored in AT1000 memory. AVL data contains GPS and I/O information • AVL packet - Data packet that is being sent to server during data transmission. AVL packet contains from 1 to 25 records. -
Page 7: Characteristics
2. CHARACTERISTICS Basic characteristics GSM / GPRS features: • Teltonika TM1Q quad band module (850, 900, 1800, 1900 MHz) • GPRS class 10 • SMS (text, data) GPS features: • No less than 20 channel receiver • No less than -160 dBm sensitivity Special features: •... -
Page 8: Electrical Characteristics
• Max pulse current not less than 2000mA The lifetime of AT1000 is subject to configuration and coverage of GPS and GSM signals. According to recommended default configuration expected lifetimes: • 6 months - GPS acquire every 1 hour and data sending every 24 hour. -
Page 9: Preparation Of The Device
3. PREPARATION OF THE DEVICE Inserting SIM card Open AT1000 device Open SIM card lid and insert the SIM card Close SIM card lid Push SIM card lid in the shown direction to lock it and assemble AT1000... -
Page 10: Inserting The Batteries
Inserting the batteries Figure 3. Inserting the batteries. AT1000 is autonomous device which uses two R14 (IEC 60086 standard) batteries. Batteries used in this device are single charge Li based type and should have the following parameters: • Voltage: 3.6V •... -
Page 11: Connecting At1000 To Pc
When AT1000 is connected for the first time to PC, you will be prompted with 'Found New Hardware' window. Click 'Cancel' to stop automatic installation process. It is required to install AT1000 drivers before connecting device to PC. More details on how to install the driver can be found in the paragraph above (2.3 Intalling the... -
Page 12: Configurator
IMEI number with it. Please download the latest version of AT1000 Configurator from Teltonika webpage: http://avl1.teltonika.lt/downloads/AT1000/. To use Configurator with AT1000, make sure that batteries are inserted in the device and it is connected to PC. In the configurator please choose correct COM port used by the device. You may find out which COM port is used by following these steps below: •... -
Page 13: Operational Basics
5. OPERATIONAL BASICS Profiles In order to preserve the battery, AT1000 is designed to stay in a sleep mode as long as possible. Device periodically (each 2 seconds) wakes up for a very short time and checks states of IO events. If IO event(s) state has changed, profile manager changes to profile according to logical sentences. -
Page 14: Events
“Hysteresis” is selected, events will be generated as it is shown in the illustration below: Figure 8. Event generation according hysteresis algorithm AT1000 uses this method to calculate those IO element events that have Delta parameters: GPS speeding, GSM signal level and Analog input. -
Page 15: Configuration
• Save to File: click this button to save manually entered setting to a file. • Read from flash: reads settings that are already stored in AT1000 device. • Write to flash: saves the settings to AT1000 memory. Note, that you have to load these settings from file or enter them manually first. -
Page 16: Global Parameters
GPS satellites. After coordinates are received, data is sent to server as defined in global parameters. • COM port: click this drop-down list to choose which COM port is used by AT1000 to connect to PC. See chapter 4 to find out number of the port. -
Page 17: General Settings
Figure 10. Authorized numbers window General settings • Movement sensor: these parameters combined with onboard vibration sensor are used to define if device is moving. While measuring (during Scan time) device captures Vibration Count, after the end decision is done accord to equation (Scan Time / Average Time to Impulses) ≤... - Page 18 Figure 13. Geofence border working principle (1) Figure 14. Geofence border working principle (2) Geofence Shape: Individual Geofencing Zone shape selection. There are two shapes available: Circular or Rectangular. Geofence Event Priority: Reserved for future uses, leave 0. Geofence Enter Event: Individual Geofencing Zone Entering event generation functionality. If enabled –...
- Page 19 Figure 15. Geofence settings window • IO events: according to these settings device will respond changing circumstances and include certain information to records. Low Battery: information that device battery is low. Critical Battery: information that device battery is critically low. Roaming: information that device is in roaming state.
- Page 20 Level field and delta indicate a value level – when it exits or enters value +- delta/2, device generates an event. I.e. to generate speeding event when speed reaches 80 km/h enter level value 40 and delta value 80. This would make low level of speed 0 km/h (40 – 80/2) and high level 80 km/h (40 + 80/2).
-
Page 21: Profiles Parameters
This set of parameters applies for device only when it is operating in appropriate profile. To choose a profile click on 'P1', 'P2', 'P3', 'P4' or 'P5' and enter desired values. Refer to profile switching logic chapter to find out correct settings for your AT1000 device. -
Page 22: Sleep
• Min. Period: time interval in seconds, when device is trying to establish its location and make a record. • Save week time: if 'Min. Period' value is 0, then AT1000 uses this table when to make records. You can set the time in 10 minute intervals and choose weekdays to do it. -
Page 23: Data Send
• Send week time: if 'Send Period' value is 0, then AT1000 uses this table to send records. You can set the time in 10 minute intervals and choose weekdays to do it. The table is same as for data recording ('Save week time' table). -
Page 24: Scenario #2
Scenario #2 Designed for customs/shipment transit tracking: • While moving collect data every 1 hour, send data every 12 hours; • While idle collect and send data every 24 hours; • If geofence zone crossed: collect data every 5 minutes and GSM modem always online. Expected battery lifetime is 6 months with no alarm captured. - Page 25 Table 3. Property ID of I/O elements. Property ID in Property Name Bytes Description packet Battery level 0-100 % Analog Input 0 – 3300 mV GSM Signal Strength Signal strength level 0 (lowest) – 5 (highest) Current profile Profile Number 1-5 Alarm button 0 - OFF;...
-
Page 26: Sms Command List
'<space>getgps' when password field is blank. Figure 21. SMS password settings Also AT1000 accepts commands only from authorized and/or server modem numbers. If 'Authorized Numbers' table is left blank, then AT1000 accepts commands from any number. SMS commands are: • getver – gets firmware version;... -
Page 27: Getstatus
getstatus Response details Description Data Link Indicate module connection to server at the moment: 0 – Not connected, 1 – connected GPRS Indicate if GPRS is available at the moment Phone Voice Call status: 0 – ready, 1 – unavailable, 2 – unknown, 3 – ringing, 4 – call in progress, 5 –... -
Page 28: Getgps
getgps Response details Description Count of currently available satellites Latitude (Last good Latitude) Long Longitude (Last good Longitude) Altitude, m Speed Ground speed, km/h Ground direction, degrees Date Current date Time Current GMT time Example: Sat:7 Lat:54.71473 Long:25.30304 Alt:147 Speed:0 Dir:77 Date: 2007/8/24 Time: 13:4:36... -
Page 29: Updating Firmware To The Latest Version
Figure 22. Updater application Steps to update FW version successfully: 1. Insert the batteries into AT1000. Connect the device to the PC using the USB cable provided with AT1000 device. 2. Launch the Updater. Select COM port that is using AT1000. Press Connect button. -
Page 30: Mounting Recommendations
9. MOUNTING RECOMMENDATIONS Attach AT1000 to a surface in a vertical position with GPS antenna facing upper part of case. Make sure device gets as much of clear view of the sky as possible. Use screws or plastic tie strap... -
Page 31: Changes Log
10. CHANGES LOG Date New version No. Comments 100323 First release 100514 Minor changes applied and screenshots updated 100826 Accessories description added 120217 Minor changes applied and screenshots updated...
