Summary of Contents for Teltonika MH2000
-

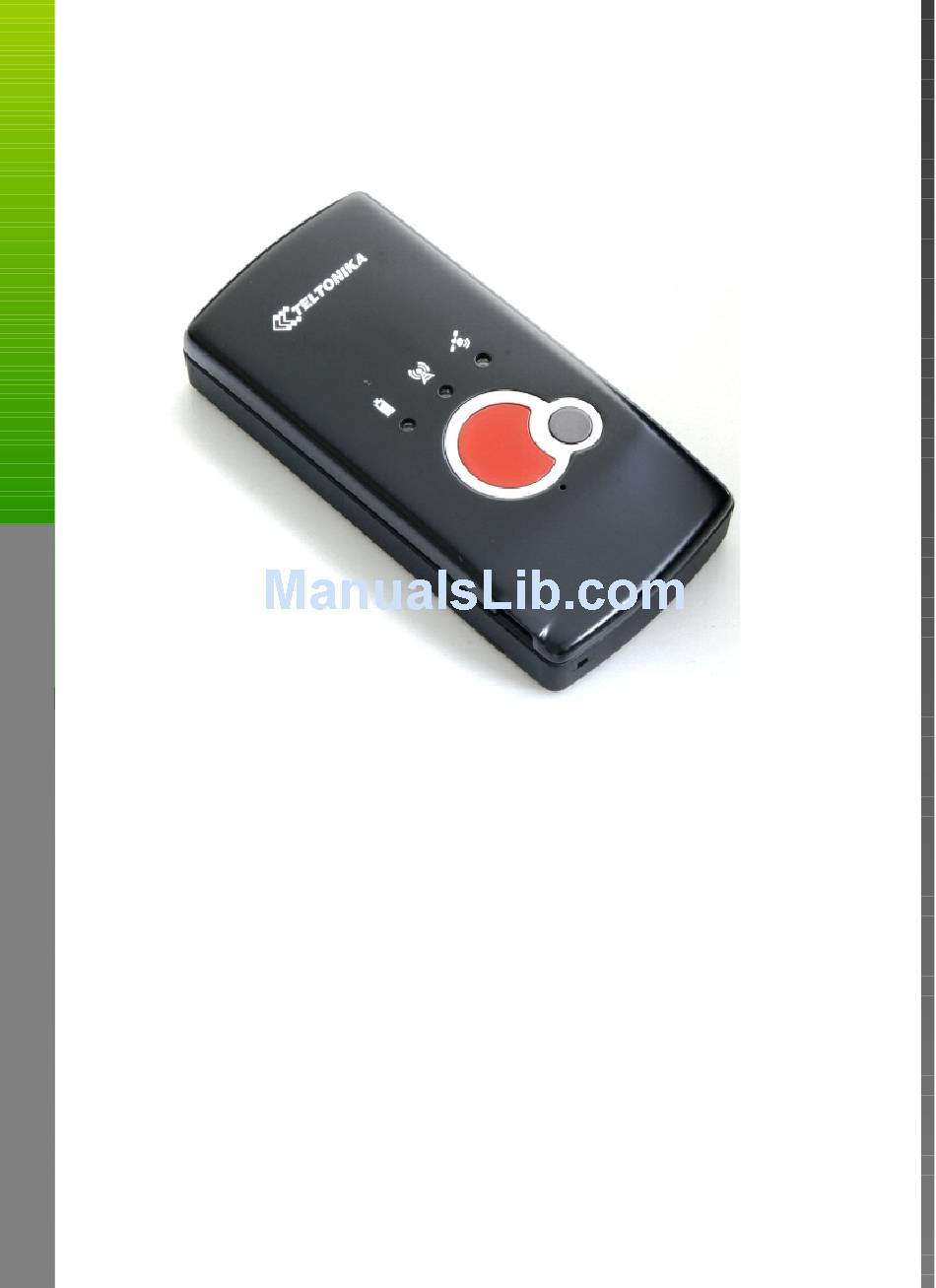

Page 1: Quick Start
Handheld GPS/GSM Tracker MH2000 Quick Start USER MANUAL Version 1.04 Release date: 2010 07 02... - Page 2 Teltonika reserves a right to modify the functionality of the device without any prior notice.
-
Page 3: Standard Package Content
Handheld GPS/GSM Tracker STANDARD PACKAGE CONTENT 1 x MH2000 Handheld Tracker 1 x Mini screwdriver 1 x Battery 1 x Neck strap 1 x Quick start User Manual 1 x 230V Charger NOTE: The manufacturer's set does not include any SIM card which is necessary to connect to the GSM network. -
Page 4: Device Preparation
PC. NOTE: Connecting the cable which is not provided by company Teltonika you will fall in the risk to damage the device. Version 1.04 Release date: 2010 07 02... -
Page 5: Panic Button
Handheld GPS/GSM Tracker GETTING TO KNOW THE DEVICE 1 – LED indicators 2 – Panic Button 3 – Turn ON/OFF Button 4 – Micro USB LED INDICATORS LED indicators indicate the status that the device is in at the time. TURN ON/OFF BUTTON PANIC BUTTON To turn on the device press the... - Page 6 Handheld GPS/GSM Tracker DEVICE CONFIGURATION THROUGH THE SMS SMS TEXT THE MEANING AD – Alarm Data -This message will CFG_AD_CELL+GPS configures the device to collect all available data in the memory while in panic mode. AD – Alarm Data – Collect data with GSM CFG_AD_CELL base station information only.
- Page 7 Handheld GPS/GSM Tracker with GPS coordinates only. DTZ – Device Time Zone – set up the time CFG_DTZ_<Time zone> zone if you want to get your current i.e. CFG_DTZ_+3 location time in SMS. CFG_CBN_<Battery level CBN – Charge Battery Notification – Set up %>_<Phone number>...
-
Page 8: Factory Defaults
Set time (if there was no fix, default Time: time is 2007.01.01 00:00:00) Given name to the device. Default is Device_name: MH2000 Alarm duration time. Time how long the device works in alarm mode (shown in ADT: seconds) Default: 300sec. Minimal available duration time is 30sec. -
Page 9: Battery Life Time
Handheld GPS/GSM Tracker Shown in seconds. Default is 60. PLD: The same as in AD parameter Coordinates logging period. How often the device will save its position in the CLP: memory. Shown in seconds. Default is 3600 sec. 24H_SEND : Default value is not (0). -
Page 10: Maintenance And Repair
Handheld GPS/GSM Tracker RECOMMENDATIONS Recommended operating 0 up to 50ºC temperature Storage temperature -20 up to 60 ºC MAINTENANCE AND REPAIR This device is a high-quality design product; therefore, it should be handled carefully. The following advice will assist you in meeting the guarantee requirements. - Page 11 Handheld GPS/GSM Tracker Do not throw, knock or shake the device. By handling it in this way you can break internal circuit boards and small moving parts. Do not clean the device with strong chemicals, solutions or cleansing agents. Do not paint the device. The paint may block the moving parts and prevent them from operating well.
- Page 12 Handheld GPS/GSM Tracker NOTES Version 1.04 Release date: 2010 07 02...
