Teltonika FMC150 First Start-Up Quick Start Manual

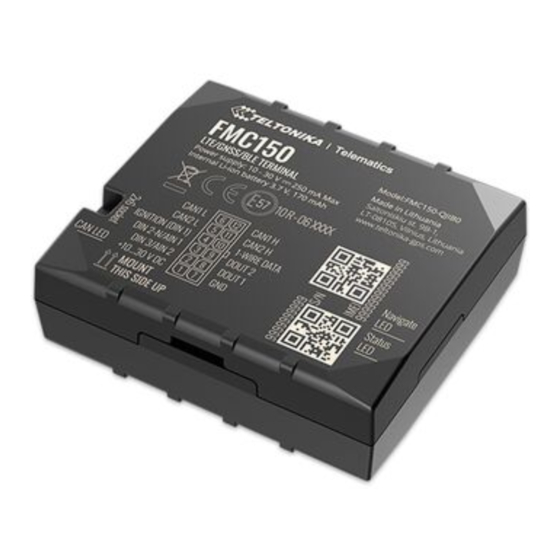

4g cat 1 gnss/gsm/bluetooth tracker with integrated can adapter and internal gnss/gsm antennas and internal battery
Hide thumbs Also See for FMC150:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
https://wiki.teltonika-gps.com/view/FMC150_First_Start
FMC150 First Start
Main Page
>
CAN Trackers & Adapters
4G Cat 1 GNSS/GSM/Bluetooth tracker with integrated CAN adapter and internal
GNSS/GSM antennas and internal battery
Contents
1 How to insert Micro-SIM card
2 Battery placement after complete device disassembling
3 2x6 socket pinout
3.1 FMC150-QJIB0 2x6 socket pinout
3.2 FMC150-QKIB0 2x6 socket pinout
3.3 PC Connection (Windows)
3.4 How to install USB drivers (Windows)
3.5 Configuration (Windows)
3.6 Quick SMS configuration
4 FMC150 Configuration Upload
5 Mounting recommendations
6 Safety information
6.1 Precautions
>
FMC150
> FMC150 First Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMC150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Teltonika FMC150

Summary of Contents for Teltonika FMC150

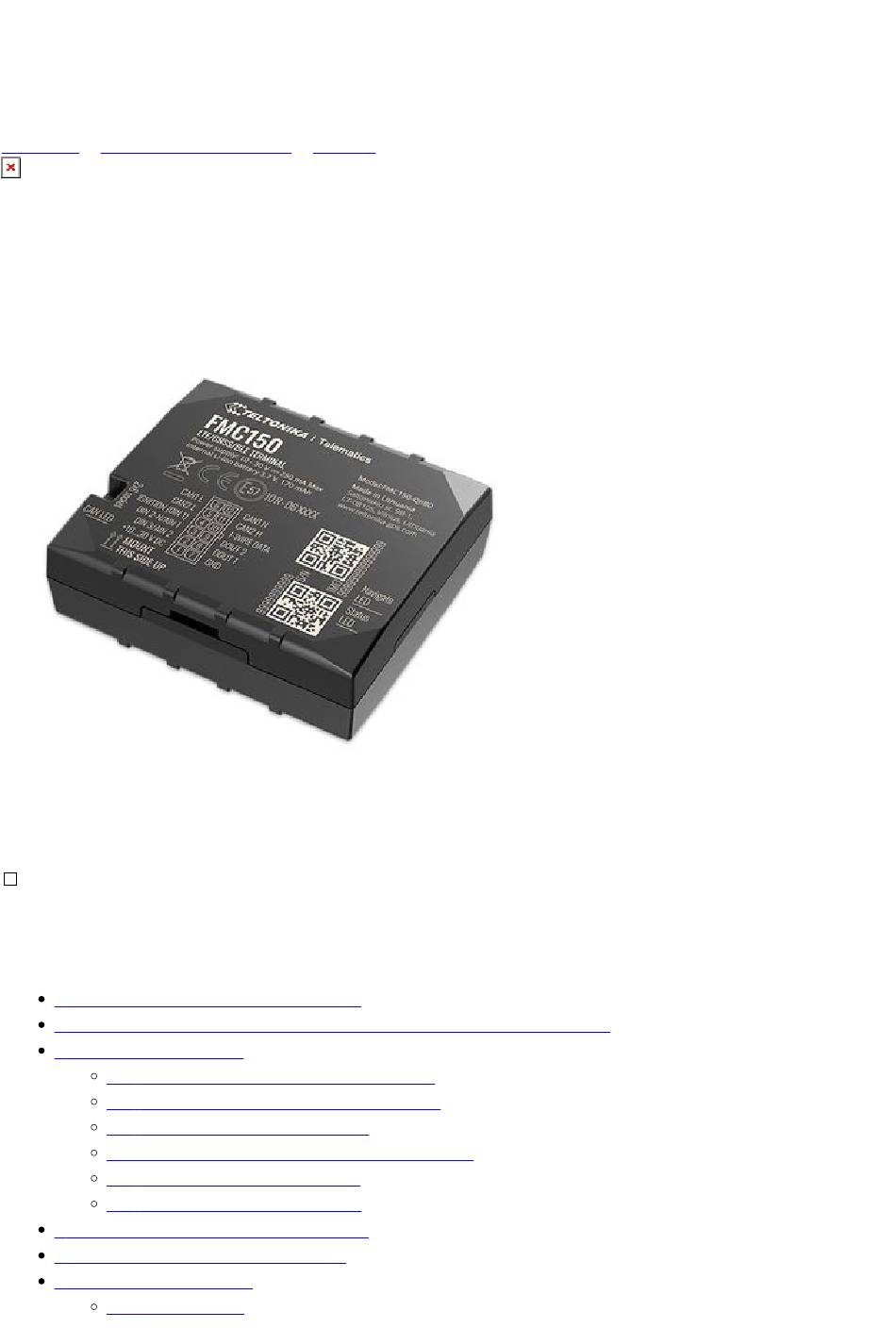

  • Page 1 Contents 1 How to insert Micro-SIM card 2 Battery placement after complete device disassembling 3 2x6 socket pinout 3.1 FMC150-QJIB0 2x6 socket pinout 3.2 FMC150-QKIB0 2x6 socket pinout 3.3 PC Connection (Windows) 3.4 How to install USB drivers (Windows) 3.5 Configuration (Windows) 3.6 Quick SMS configuration...

  • Page 2: How To Insert Micro-Sim Card

    How to insert Micro-SIM card Gently remove FMC150 cover using plastic pry tool from both sides. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.
  • Page 3 Open collector output. Max. 3,3 A DC. 1WIRE DATA Data for 1–Wire devices. CAN2H CAN2 High CAN1H CAN1 High FMC150-QKIB0 2x6 socket pinout PIN NAME DESCRIPTION NUMBER (10-30)V Power supply (+10-30 V DC (+) DIN2 / AIN1 Digital input, channel 2 / Analog input, channel 1.

  • Page 4: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Configuration (Windows) At first FMC150 device will have default factory settings set. These settings should be changed according to the user's needs. Teltonika Configurator Main configuration can be performed via software.

  • Page 5: Quick Sms Configuration

    Maintenance and etc. FMC150 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
  • Page 6 FMC150 CAN configuration can be uploaded Over The Air by using FOTA WEB. In order to download your vehicles CAN configuration please follow a quick and simple step- by-step guide below. FMC150 device, must be registered in FOTA WEB – device‘s model, firmware version, serial number, and other information must be shown.

  • Page 7: Mounting Recommendations

    Once the CAN configuration upload task has been assigned, it can be seen in the main window. Please note, that uploading will start after the next scheduled connection to FOTA WEB (or instant connection, initiated by an SMS command "web_connect"): When the task is completed you can validate if you have uploaded the correct file by checking the "Changes"...

  • Page 8: Safety Information

    GND vehicle computer. Connecting the GND at an arbitrary point to the mass of the car is unacceptable, as static and dynamic potentials on the line GND will be unpredictable, which can lead to unstable FMC150 operation and even its failure.
  • Page 9 The device is designed to be mounted in a zone of limited access, which is inaccessible to the operator. All related devices must meet the requirements of EN 60950-1 standard. The device FMC150 is not designed as a navigational device for boats. Precautions Do not disassemble the device.
