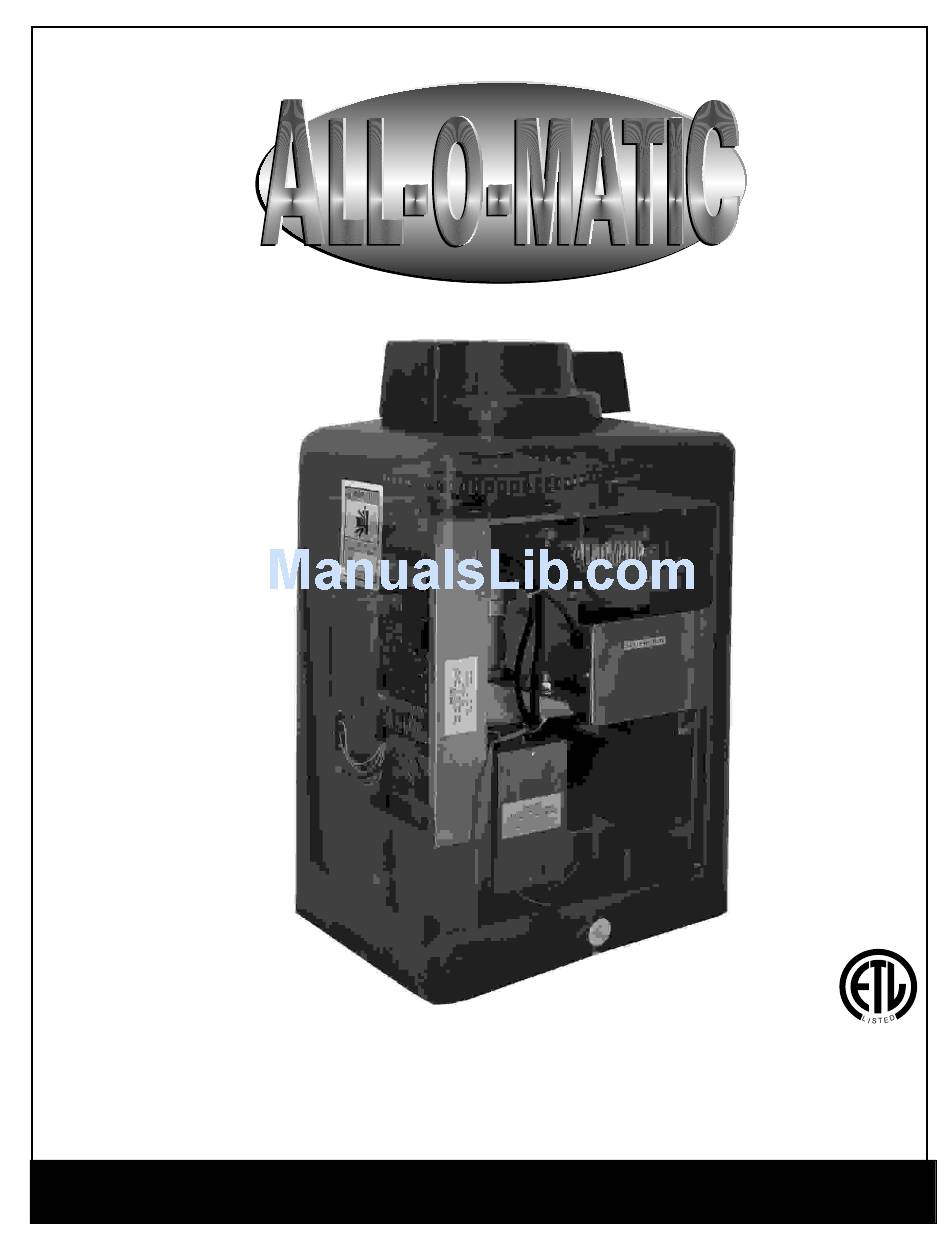

- Page 1 ® ® Pending UL325 compliant UL991 WWW.ALLOMATIC.NET compliant SW-300DC Installation Manual Copyright © 2008 all-o-matic inc. www.allomatic.net...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important safety instructions............2&3 Different UL 325 class types............. Concrete pad Specs................. Operator & Arm Layout.............. 6,7&8 Compact Installation................. Torque limiter & Arm adjustment............Gate travel adjustment..............Directional settings................Electrical power connections............Typical loop layout................General loop installation guidelines..........Accessory connections.............. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of injury: READ THE FOLLOWING DIRECTIONS. DO NOT EVEN THINK OF STARTING UNTIL YOU HAVE READ AND UNDERSTAND THESE DIRECTIONS. IF THERE IS SOMETHING YOU DO NOT UNDERSTAND CALL US. Never let children operate or play with gate controls. Keep the remote control away from children. Always keep people and objects away from the gate. - Page 4 INSTALL THE GATE OPERATOR ONLY WHEN YOU HAVE READ THE FOLLOWING: *Confirm that the gate operator being installed is appropriate for the application. *Confirm that the gate is designed and built according to current published industry standards. *Confirm that all appropriate safety features and safety accessory devices are being incorporated, including both primary and secondary entrapment protection devices.
-
Page 5: Different Ul 325 Class Types
Inherent adjustable clutch or pressure relief valve. Type D: Provision for connection of or provided with and actuation device requiring continuous pressure. Type E: Inherent audio alarm. All of All-O-Matic Inc’s Gate operators conform to the most ridged Class One. -
Page 6: Concrete Pad Specs
CONCRETE PAD FOR SW-300 Four red head Bolts ” ” Operator plastic Cover 24” 13.5” Area for Conduit(s) Operator Concrete Operator frame 9.5” 24” 00 uF 00 uF 2200 uF 2200 uF 2200 uF 2200 uF 2200 u 2200 u 25.5”... -
Page 7: Compact Installation
OPERATOR AND ARM DIMENTIONS HINGE CENTER OUTSIDE POST Refer to This distance is from INSIDE note the gate in open 2” position to edge of the below. pad. Refer to note CONCRETE PAD Dimentions Chart Gate Minimum length Distance Less than 12”... -
Page 8: Operator & Arm Layout
OPERATOR AND ARM LAYOUT Hinge point “A” Point Mark ground under Bracket gate bracket with Bracket gate closed. This will be point Point Mark ground under gate bracket with gate open. This will 14” be point Bracket Hinge point Point Bracket Point Draw a line from point... - Page 9 ARM LAYOUT & OPERATOR PLACEMENT CONTINUED Bracket Hinge point Point Bracket Point Measure distance from the point And point Say distance is 60”, divide this number by 2,which =30”. This is the length of primary PLEASE BE EXACT!!! Center shaft of Operator his ARM section is half the distance between point...
-
Page 10: 6,7&8 Compact Installation
SWINGER COMPACT INSTALLATON To use this installation the gate must be 12’ or less. HINGE CENTER 27” OUTSIDE INSIDE 8” 35” 20” Use these measurements, only if the distance between the wall and the gate in the open position is 20” to 34”. If you have more than 34”... -
Page 11: Torque Limiter & Arm Adjustment
TORQUE LIMITER AND ARM ADJUSTMENT The torque limiter is shipped loose (not adjusted). You must use a 20” pipe wrench to Torque limiter adjust the large torque limiter nut on the operator adjusting nut. as shown in the images below. Tighten torque limiter nut until arm does not slip when the operator is running. -
Page 12: Gate Travel Adjustment
GATE TRAVEL ADJUSTMENT Locate limit switch. Step 1: Turn the power off on operator. Step 2: Use an allen wrench to loosen up the limit cams. Turn the limit Cams to desired direction. Step 3: tighten the allen screw. Step 4: Turn the operator back on. Step 5: Run gate operator. -
Page 13: Directional Settings
OPENING DIRECTION SETTINGS OPEN L/R dipswitch to change the opening direction on the operator. for left hand opening, for right hand opening. 2491 2491 LED’s will show opening or closing directions when gate is running. 10 2 Opening to the right Opening to the left... -
Page 14: Electrical Power Connections
ELECTRICAL CONNECTION OPERATORS MUST BE PROPERLY GROUNDED! Power switch NOTE: When applying 230V to operator make sure voltage GRD LINE 1 LINE 2 switch is flipped to 230V position. 120 Volt Electrical Plug. Power connection | 115VAC | 220VAC Single Phase LINE 1 115V N 220V LINE 1... -
Page 15: Typical Loop Layout
SWINGER LOOP LAYOUT Outside Safety loop Outside Safety loop WIRED IN SERIES Center Phantom loop Center Phantom loop Gate in open Gate in open position position 1/4 IN 1/4 IN TWISTED 6 TURNS PER FOOT Inside Safety loop Inside Safety loop Exit loop Exit loop WHEN USED... -
Page 16: General Loop Installation Guidelines
GENERAL LOOP INSTALLATION GUIDELINES The following loop installation guidelines are for installing typical driveway loops for access control applications (i.e. parking gates, sliding gates, swing gates etc...) Always consult with loop detector manufacturers for specific equipment guidelines. This will confirm that the proper configuration and installation techniques are applied for your application. -
Page 17: Accessory Connections
ACCESSORY CONNECTIONS The circuit board 12-VDC output provides up to mAmps of power for accessories. More than two or three accessories will require a separate power supply. NOTE: 12VDC Accessories only. 10 2 1002 1002 1002 1001 See page 18 for plugin detector Remove wire jumper installation. -
Page 18: Multiple Safety Device Connections
MULTIPLE SAFETY DEVICES CONNECTIONS Multiple SAFETY devices installed together must be connected in series . “ ” Locate the normally closed (N.C.) dry contact from each accessory relay. efore installing the accessory devices, remove the wire jumper from the SAFETY position the control board. -
Page 19: Plugin Detector Installation
LPR-1 LOOP RACK INATALLATION This is a typical loop configuration for a gated driveway . Remember when connecting to an All-O-Matic circuit board the safety (reverse) uses normally closed contacts from loop detector the wire jumper from the safety connector needs to be removed when a safety loop is inatalled. -
Page 20: Leading Edge Installation
LEADING EDGE CONNECTION 2402 1002 10 2 1002 1002 1001 wire to 12VDC BLACK wire to COMMON LEADING EDGE SENSOR Connect one of the wires from leading edge and/or one of the grey wires from a wireless edge receiver to COMMON connector on control board. -
Page 21: Three Button Station
THREE BUTTON STATION SYSTEM See push button connections below. 12 0 1001 1001 1001 1001 0022 A three button station was integrated into the board to make adjustments easier when setting limit switches and adjusting ERDs. 1002 1 02 10 2 1002 1002 PED-SW... -
Page 22: Master/Slave Connections
MASTER/SLAVE CONNECTION Before connecting master/slave gate operators together, test and adjust the limit switches and the ERDs for each operator as “stand alone” machines. All accessories must be installed on the master board, no exception. See page 20 for dip switch settings. Use a two wire shielded cable and run it through a UL listed conduit for master/slave connection. -
Page 23: Magnetic/Solenoid Lock Installation
MAGNETIC/SOLENOID LOCK CONNECTIONS Magnetic lock installation requires a step down transformer with appropriate voltage for the specific lock accessory. Operator will provide a 120VAC outlet for the step down transformer. Connections: Plug the lock device transformer to the 120VAC outlet plug. For Magnetic lock: Connect one wire from transformer directly to one wire of the magnetic lock, the other wire from transformer will be connected to the relay plug input and the... -
Page 24: Radio Receiver Hookup
RADIO RECEIVER CONNECTIONS 3 wire receiver: mounts on receiver strip outside control box as shown below. 4 wire receiver: connect the two relay wires to & terminals. Black negative wire to terminal and Red positive wire to terminal on receiver strip outside control box as shown below. 1 01 00 2 ATMEL... -
Page 25: Open & Close Electronic Reversing Sensor(Erd) Adjustment
OPEN AND CLOSE ELECTRONIC REVERSING SENSOR(ERDs) ADJUSTMENT Open and Close ERD I0615 12 2 3002 SENSITIVITY F260 1212 DR127-330 1131 43CL07 E 4750 HFK. 2491 Coilcraft 1001 90R9 Coilcraft 2491 360G 10R0 1000 13 2 2001 1501 7 CB74K L 14 1001 1501 1501... -
Page 26: Timer Adjustment
TIMER ADJUSTMENT TIMER ON: Timer to close, can be set from 1 to 60 seconds. TIMER OFF: Gate operation is push button to open, push button to close. TO OVERRIDE THE TIMER: Turn the RADIO switch to the “ON” position. This will allow the radio receiver to close the gate before the timer. -
Page 27: Dip Switch Functions
DIP SWITCH FUNCTIONS TIMER TIMER switch “ON” activates the TIMER. See page 25 for details TIMER RADIO RADIO switch “ON” allows the radio receiver to override the timer. See RADIO page 25 for details. FAIL SF/SC OSC switch “ON” allows the radio receiver to stop and reverse the gate in any direction. -
Page 28: Solar Panel Installation
SOLAR PANEL CONNECTION I0615 6040 1212 3002 F260 12 2 DR127-330 1131 43CL07 E 9 31 4750 10 1 HFK. 2491 Coilcraft 1001 90R9 Coilcraft 24 1 360G 10R0 1000 1332 1501 B74K Ls 4 1 01 1501 1501 58AD 1K L 07 1501 90R9... -
Page 29: Swinger Arm Parts
SWINGER ARM PARTS ROUND ARM PIPE KNUCKLES QUICK RELEASE ARM BUSHING SECONDARY PIPE ARM 3 SET SCREWS GATE BRACKET PRIMARY FLAT BAR FLAT BAR QUICK RELEASE ARM BUSHING SECONDARY GATE BRACKET RECTANGULAR ARM PRIMARY... - Page 30 ALL-O-MATIC INC Northridge, CA 91324 WWW.ALLOMATIC.NET...
