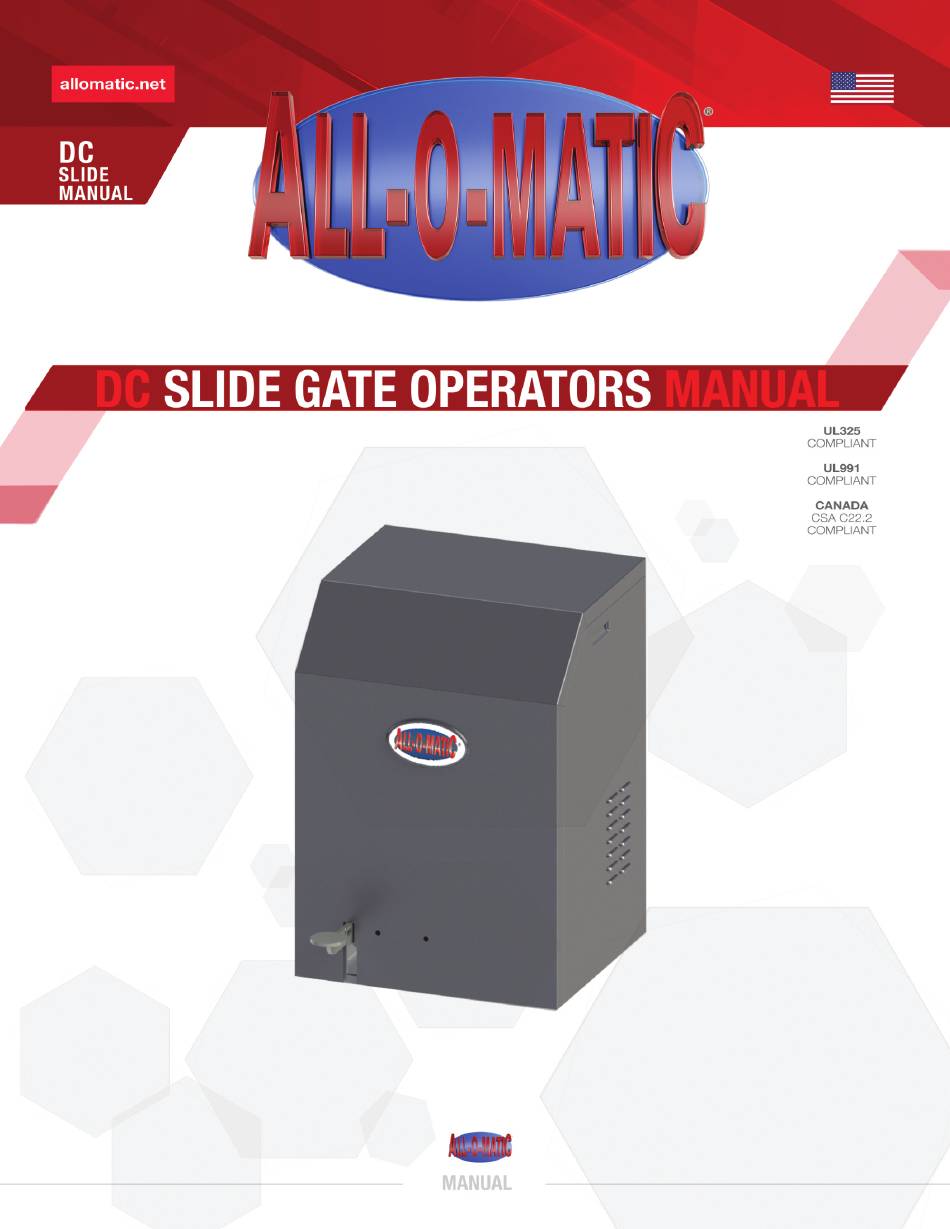

- Page 1 SL-175DC...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY AND INTRODUCTION Safety Instructions ..........1-2 UL 325 Class Types . -
Page 4: Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING TO REDUCE THE RISK OF INJURY READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS. DO NOT START INSTALLATION UNTIL YOU HAVE READ AND UNDERSTAND THESE DIRECTIONS. IF THERE IS SOMETHING YOU DO NOT UNDERSTAND, PLEASE CALL US. NEVER let children operate or play with gate controls. - Page 5 IMPORTANT SAFETY INSTRUCTIONS (CONTINUED) INSTALL THE GATE OPERATOR ONLY WHEN YOU HAVE READ THE FOLLOWING BEFORE GATE OPERATOR INSTALLATION Confirm that the gate operator being installed is Install a proper electrical ground to the gate Ÿ Ÿ appropriate for the application. operator.
-
Page 6: Ul 325 Class Types
Each class must have (2) monitored entrapment protection devices in each entrapment zone to sense and react to obstructions within 2 seconds. All-O-Matic’s gate operators conform to the most rigid Class One. UL 325 CLASS TYPES THE SIX TYPES OF OBSTRUCTION... -
Page 7: Concrete Pad Installation
SL-175 DC CONCRETE PAD SIX RED HEAD BOLTS 1/2” X 3 1/2” ” 11/16 20” ” 11/16 17.25” 20” 30” 27 3/4” 14” 10”... -
Page 8: Front And Rear Mount Installation
FRONT MOUNT INSTALLATION FRONT VIEW GATE IN OPEN POSITION GATE CLOSED OPERATOR FOOTING GATE OPERATOR TRACK FOOTING OVERHEAD VIEW DRIVEWAY TRACK FOOTING OPERATOR FOOTING... - Page 9 FRONT MOUNT INSTALLATION (CONTINUED) TOTAL COVER HEIGHT DRIVE CHAIN LEVEL 27 3/4” 14” TOP OF OPERATOR PAD...
- Page 10 REAR MOUNT INSTALLATION FRONT VIEW GATE IN OPEN POSITION GATE CLOSED GATE OPERATOR OPERATOR FOOTING TRACK FOOTING OVERHEAD VIEW DRIVEWAY OPERATOR FOOTING TRACK FOOTING CHAIN CONNECTION TO GATE CHAIN PATH MOVE ONE IDLER TO THE BOTTOM CENTER HOLE AND SAFETY GUARD FOLLOW THE CHAIN PATH AS SHOWN...
-
Page 11: Entrapment Protection Installation
ENTRAPMENT PROTECTION INSTALLATION A minimum of (2) monitored entrapment protection devices are REQUIRED for each entrapment zone. Ÿ An entrapment zone is a location or point of contact where a person can become entrapped between a moving Ÿ gate and a rigid object. The operator is equipped with an inherent entrapment protection system (ERD). -
Page 12: Loop Layout
LOOP LAYOUT Below is a typical loop layout. When connecting to an All-O-Matic circuit board, use the following: — Safety Loop - Normally Closed (N.C) Contacts — Exit Loop - Normally Open (N.O.) Contacts — Wires MUST be twisted from the exit point of the loop saw cut to the gate operator. -
Page 13: Electrical Connection
ELECTRICAL CONNECTION OPERATORS MUST BE PROPERLY GROUNDED! All gate operators MUST be properly grounded. This minimizes or prevents damage due to electrical charge, Ÿ such as a near lightening strike or an electrical static discharge. Use a single wire for the ground. DO NOT splice two wires for the ground. If the wire breaks or is cut, replace it Ÿ... -
Page 14: Gate Travel Adjustment
GATE TRAVEL ADJUSTMENT Locate the limit switches (limit switches will be in the limit box on SL-150 DC) and follow the steps below: Turn the power OFF on the operator. Push the limit lock plate down (on the SL-45 DC, SL-90 DC, and SL-100 DC) or outwards (on the SL-150 DC) Turn the limit nut in the desired direction. -
Page 15: Gate Opening Direction Setting
GATE OPENING DIRECTION SETTING Use OPEN L/R” dipswitch (#8) to change the opening direction of the operator. Ÿ The direction of gate opening is determined from behind the gate operator. Ÿ LEDs will show opening and closing direction when the gate is moving. Ÿ... -
Page 16: Programmable Relay And Leaf Delay
PROGRAMMABLE RELAY AND LEAF DELAY Board model ALL-BLDC-REV-X6 includes a programmable relay (N.O.) with four different configurations. See table below for switch settings. Use the “Leaf Delay” potentiometer to adjust the delay time from 0 to 6 seconds. (1) 1 second pulse for every open start cycle - Typically used for a cycle counter (2) “ON”... -
Page 17: Electronic Reversing Device (Erd) Adjustment
ELECTRONIC REVERSING DEVICE (ERD) ADJUSTMENT All DC boards are equipped with an Electronic Reversing Device (ERD), which will cause the gate to reverse direction when it comes into contact with an obstruction. The amount of force required to reverse the gate’s direction depends on the ERD sensitivity setting and motor rating. -
Page 18: Timer Adjustment And Radio Setting
TIMER ADJUSTMENT AND RADIO SETTING TIMER ON: Automatic timer to close can be set from 1 to 60 seconds TIMER OFF: Gate operation is “push button to open, push button to close” RADIO ON: To override the timer and allow the radio receiver to close the gate before the timer Turn potentiometer counter clockwise for more time Turn potentiometer clockwise for less time NOTE: The timer may not activate to close the gate if the potentiometer is turned all the way counter clockwise... -
Page 19: Dip Switch Functions
DIP SWITCH FUNCTIONS TIMER TIMER TIMER switch “ON” activates the automatic close RADIO timer. RADIO LOCK RADIO switch “ON” allows the radio receiver to override the automatic close timer. 1-PASS SLAVE OSC switch “ON” allows the radio receiver to stop BRAKE and reverse the gate in any direction. -
Page 20: Led Diagnostics
LED DIAGNOSTICS MODE CLOSING Blinks slowly (about every 2 seconds) when an ON while the gate is in the close cycle. overload or over current occurs. Blinks rapidly (about every 1/2 second) when the gate is jammed or the OPENING motor sensors are not responding or are disconnected. -
Page 21: Accessory Connections
ACCESSORY CONNECTIONS The circuit board has a 24 VDC terminal that provides up to 500 mAmps to power accessories such as loop detectors, keypads, etc. If the total current draw of your accessories exceeds the 500 mAmps, a separate power supply (transformer) is required. -
Page 22: Monitored Entrapment Protection Device Connection
MONITORED ENTRAPMENT PROTECTION DEVICE CONNECTION There are 2 types of sensors that can be connected to the gate operator for UL 325 monitored entrapment Ÿ compliance: non-contact sensors (photo eye) and contact sensors (edge sensors). Monitored entrapment protection devices use 4 wires to connect to the board. From the device, connect the Ÿ... - Page 23 MONITORED ENTRAPMENT PROTECTION DEVICE CONNECTIONS ENFORCER E-960-D90GQ/ ENFORCER ALLEN BRADLEY E-931-S33RRGQ / E-931-S50RRGQ E-936-S45RRGQ GRU-24 CONTACT CONTACT WIRE CONTACT WIRE CONTACT N.C. MON_CLOSE OR BLACK MON_CLOSE OR BLACK MON_CLOSE OR MON_OPEN MON_OPEN MON_OPEN COMMON WHITE COMMON ORANGE COMMON 12-30 VDC/AC COMMON BLUE COMMON...
-
Page 24: Loop Rack Installation
LOOP RACK INSTALLATION The SL-90 DC, SL-100 DC and SL-150DC models come equipped with the pre-wired LPR-1 loop rack for Ÿ safety and exit plug in loop detectors, making installation quick and efficient. Hardwired loop detectors with harnesses can also be installed. The circuit board has 12 VDC and 24 VDC Ÿ... -
Page 25: Three Button Station Connection
THREE-BUTTON STATION CONNECTION A three button station and reset push button are integrated on the board to make limit and ERD adjustments Ÿ easier. An external three button station may also be installed. See diagram below for wiring instructions, Ÿ NOTE: PED-SW jumper must be removed if a three button station is installed. -
Page 26: Master/Slave Connection
MASTER/SLAVE CONNECTION BEFORE CONNECTING MASTER/SLAVE COMMUNICATION WIRES, TAKE THE FOLLOWING STEPS: 1: Test and adjust the limit switches and ERDs for each operator as stand alone machines 2: Once the machines have been adjusted, turn slave dip switch “ON” on the slave board. Press the RESET button on the slave board or reset the power. -
Page 27: Magnetic/Solenoid Lock Connection
MAGNETIC/SOLENOID LOCK CONNECTION A magnetic lock installation requires a step down transformer with appropriate voltage specific to the lock accessory and two wires. When using a magnetic lock, the LOCK dip switch (#4) must be turned ON. The “LOCK OUTPUT” LED will turn on to show the lock is magnetized. -
Page 28: Radio Receiver Connection
RADIO RECEIVER CONNECTION There are two types of receivers: 3-wire and 4-wire: 3 wire receivers can mount on the radio receiver terminal strip located outside of the control box. For 4 wire receivers, connect the 2 gray wires to terminals 1 and 2 on the receiver terminal strip located outside of the control box. -
Page 29: Emergency Release
EMERGENCY RELEASE Procedures to manually open Gate : 1. Turn operator power “OFF” 2. Push foot pedal down and move to the left to lock pedal in down position 3. Push gate open EXIT 115VAC SAFETY LIMIT SWITCHES... -
Page 30: Solar Panel Connection
When using a 24VDC panel (up to 80 Watts), connect the panel straight into the LINE IN input. For a solar installation, upgrade the batteries according to usage. For information on solar applications (solar panel sizes, battery size, etc.), please call ALL-O-Matic. 1002... -
Page 31: External Solar System Installation
When using an external solar package, connect batteries straight into the LINE IN input. The batteries will need to be upgraded according to usage. See wiring below. For information on solar applications (solar panel sizes, battery size, etc.), please call ALL-O-Matic. CHARGE... -
Page 32: Pad Lock Tabs
PAD LOCK TABS Lock tabs are provided in the hardware bag for the SL-45 DC only. Remove bolt and install lock tabs for cover to secure with a pad lock. Lock kits available for purchase for SL-90 DC, SL-100 DC, SL-100FP DC, and SL-150 DC.
