ALL-O-MATIC TORO 24 Installation Manual

Swing gate opener
Hide thumbs Also See for TORO 24:
Table of Contents

Advertisement

Quick Links

SWING GATE OPENER
Copyright © 2017 all-o-matic inc. www.allomatic.net
TORO 24
INSTALLATION MANUAL
®
WWW.ALLOMATIC.NET
®
US
Compliant
UL325
Compliant
UL991
Compliant
Canada
CSA C22.2
Compliant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORO 24 and is the answer not in the manual?

Questions and answers

Related Manuals for ALL-O-MATIC TORO 24

Summary of Contents for ALL-O-MATIC TORO 24

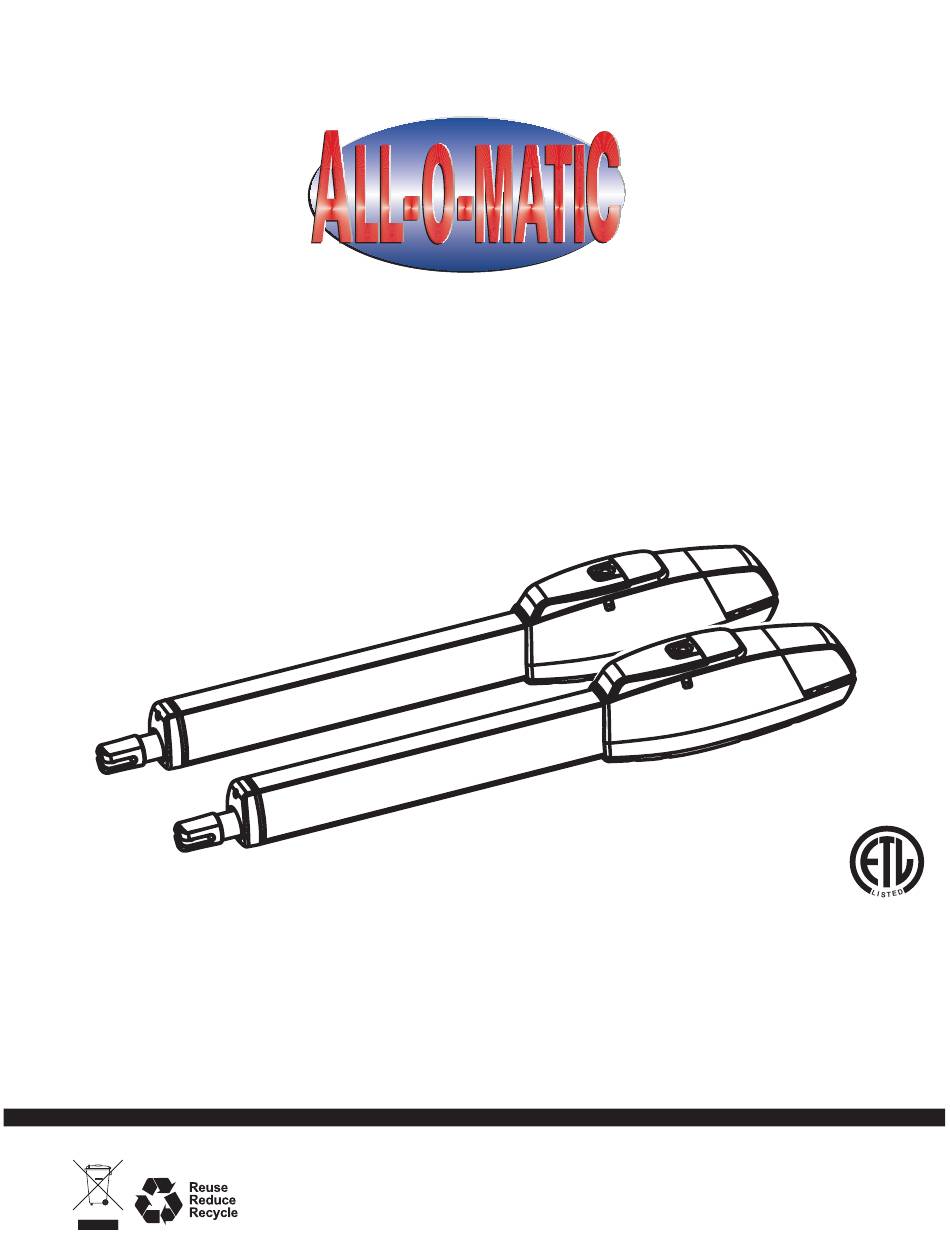

  • Page 1 ® TORO 24 ® Compliant SWING GATE OPENER UL325 Compliant UL991 Compliant Canada INSTALLATION MANUAL CSA C22.2 Compliant Copyright © 2017 all-o-matic inc. www.allomatic.net WWW.ALLOMATIC.NET...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SAFETY AND INTRODUCTION Safety Instructions ......... . 2-3 UL 325 Cass Types .

  • Page 4: Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING TO REDUCE THE RISK OF INJURY READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS. DO NOT START INSTALLATION UNTIL YOU HAVE READ AND UNDERSTAND THESE DIRECTIONS. IF THERE IS SOMETHING YOU DO NOT UNDERSTAND, PLEASE CALL US. NEVER let children operate or play with gate controls.
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS (CONTINUED) INSTALL THE GATE OPERATOR ONLY WHEN YOU HAVE READ THE FOLLOWING BEFORE GATE OPERATOR INSTALLATION Confirm that the gate operator being installed is Install a proper electrical ground to the gate Ÿ Ÿ appropriate for the application. operator.

  • Page 6: Ul 325 Cass Types

    Each class must have (2) monitored entrapment protection devices in each entrapment zone to sense and react to obstructions within 2 seconds. All-O-Matic’s gate operators conform to the most rigid Class One. UL 325 CLASS TYPES THE SIX TYPES OF OBSTRUCTION...

  • Page 7: Operator Specifications

    OPERATOR SPECIFICATIONS TORO 24 8’ wide gate - 1,600 lbs. Max Gate Weight 12’ wide gate - 1,200 lbs. 16’ wide gate - 800 lbs. Max Gate Length 18’ wide gate - 600 lbs. 4 year residential Warranty 3 year commercial...

  • Page 8: Parts Identification

    Ÿ The back mounting bracket must be cut to fit the arm geometry. Ÿ Use the back mounting plate when a steel post is not available to weld the back mounting bracket on to. OPEN CLOSE TIMER ALL-O-MATIC INC. <ENG. ESP.> S/N: DATE: 24V AC...

  • Page 9: Pull To Open Installation

    PULL TO OPEN INSTALLATION For proper operation, use the installation measurements in the chart below. If necessary, modify the gate construction for best automation performance. Before proceeding with the gate operator installation, be sure of the following: - The gate moves open and close freely when on manual. - The gate hinges are properly positioned and lubricated.

  • Page 10: Push To Open Installation

    PUSH TO OPEN INSTALLATION For proper operation, use the installation measurements in the drawing below. A custom bracket is required for this type of installation. If necessary, modify the gate construction for best automation performance. Before proceeding with the gate operator installation, be sure of the following: - The gate moves open and close freely when on manual.

  • Page 11: Operator Installation

    OPERATOR INSTALLATION Use the back mounting plate to have a welding surface when a steel post is not available. Use anchor bolts to mount the plate to existing surface. Cut the back mounting bracket to fit the geometry and weld the bracket to the steel post or back mounting plate. NOTE: A custom mounting plate is required for gates that open to the outside.

  • Page 12: Entrapment Protection Installation

    ENTRAPMENT PROTECTION INSTALLATION A minimum of (2) monitored entrapment protection devices are REQUIRED for each entrapment zone. Ÿ An entrapment zone is a location or point of contact where a person can become entrapped between a moving Ÿ gate and a rigid object. The operator is equipped with an inherent entrapment protection system (ERD).

  • Page 13: Loop Layout

    LOOP LAYOUT Below is a typical loop layout. When connecting to an All-O-Matic circuit board, use the following: — Safety Loop - Normally Closed (N.C) Contacts — Center/Phantom Loop - Normally Open (N.O.) Contacts — Exit Loop - Normally Open (N.O.) Contacts —...

  • Page 14: Electrical Connection

    ELECTRICAL CONNECTION OPERATORS MUST BE PROPERLY GROUNDED! All gate operators MUST be properly grounded. This minimizes or prevents damage due to electrical charge, Ÿ such as a near lightening strike or an electrical static discharge. Use a single wire for the ground. DO NOT splice two wires for the ground. If the wire breaks or is cut, replace it Ÿ...

  • Page 15: Gate Travel Adjustment

    GATE TRAVEL ADJUSTMENT Step 1: Find the open and close limit switches on the bottom of the gate actuator. Step 2: Loosen the limit switch screws to allow the switch to slide. Step 3: Make the necessary adjustments to the limit switch. Step 4: Tighten the screws to lock limit switch in place.

  • Page 16: Setting And Diagnostic Menus

    SETTING AND DIAGNOSTIC MENU DESCRIPTIONS <ENG Press the left arrow button (<) to select English SERVICE CYCLE ESP> Press the right arrow button (>) to select Spanish SERVICE CYCLE COUNT: Used to program a service call. Set the number of cycles you want the gate to SETTINGS MENU run before the gate operator gives off an audible double beep alarm.
  • Page 17 SETTINGS MENU PROGRAMMING AND DIAGNOSTICS SETTINGS MENU PROGRAMMING SETTING THE AUXILIARY RELAY ENTERING THE SETTINGS MENU From the SETTINGS menu, select AUXILIARY RELAY and press Ÿ Press the ENTER button twice to turn the LCD display on ENTER Ÿ Press the left arrow (<) button to select English Use the up and down arrows to select the function and press Ÿ...

  • Page 18: Gate Opening Direction Setting

    Ÿ OPEN IN/OUT switch “OFF” is for open in installations Ÿ OPEN IN/OUT switch “ON” is for push out installations Ÿ DIPSWITCH #8 OPEN IN/OUT OPEN CLOSE TIMER ALL-O-MATIC INC. <ENG. ESP.> MON_12/24VDC COMMON MON_CLOSE MON_OPEN STOP CMD COMMON S/N:...

  • Page 19: Programmable Relay

    CLOSED SIGNAL: Relay is on and kept active when the gate is in the fully closed position. DEVICE DEVICE POWER SUPPLY OPEN CLOSE TIMER ALL-O-MATIC INC. <ENG. ESP.> MON_12/24VDC COMMON MON_CLOSE MON_OPEN STOP CMD COMMON S/N: DATE:...

  • Page 20: Electronic Reversing Device (Erd) Adjustment

    If the gate reverses direction on its own without hitting an obstruction, the ERD is too sensitive. If the gate does not reverse when it hits an obstruction, the ERD is not sensitive enough. OPEN CLOSE OPEN CLOSE TIMER ALL-O-MATIC INC. <ENG. ESP.> MON_12/24VDC COMMON MON_CLOSE MON_OPEN...

  • Page 21: Timer Adjustment And Radio Setting

    ALLOWS THE 1-PASS TRANSMITTER TO CLOSE THE GATE BEFORE THE TIMER SLAVE AUTO OPEN OPEN IN/OUT 60 sec 1 sec OPEN CLOSE TIMER TIMER ALL-O-MATIC INC. <ENG. ESP.> MON_12/24VDC COMMON MON_CLOSE MON_OPEN STOP CMD COMMON S/N: DATE: 24V AC EXTERNAL...

  • Page 22: Dip Switch Functions

    If a second vehicle goes over the loop while TIMER the gate is closing, the gate will stop. The vehicle must get off of the loop before the gate continues to ALL-O-MATIC INC. close, forcing the second vehicle to present valid <ENG. ESP.>...

  • Page 23: Led Diagnostics

    LED DIAGNOSTICS MODE STOP CMD CLOSE-LIM2 RADIO OPEN-LIM2 EXIT CLOSING PHANTOM OPENING SAFETY CLOSE-LIM CLOSE CMD OPEN-LIM MON_CLOSE BATT-LOW MON_OPEN ALARM TIMER MON_FAULT AC/PWR ON STOP CMD MODE ON when the STOP CMD input is activated. Blinks once every two seconds when there is a problem (open circuit to common) with the motor hall sensor feedback.

  • Page 24: Accessory Connections

    ACCESSORY CONNECTIONS The circuit board has a 24 VDC terminal that provides up to 500 mAmps to power accessories such as loop detectors, keypads, etc. If the total current draw of your accessories exceeds the 500 mAmps, a separate power supply (transformer) is required.

  • Page 25: Monitored Entrapment Protection Device Connection

    Should there be a need for more than 1 entrapment protection device for each direction, use a multi-input module Ÿ from Miller Edge (model: MIM-62). MON-12VDC OPEN COMMON CLOSE MON_CLOSE TIMER ALL-O-MATIC INC. MON_OPEN <ENG. ESP.> MON_12/24VDC COMMON MON_CLOSE MON_OPEN STOP CMD...
  • Page 26 MONITORED ENTRAPMENT PROTECTION DEVICE CONNECTIONS ENFORCER E-960-D90GQ/ ENFORCER ALLEN BRADLEY E-931-S33RRGQ / E-931-S50RRGQ E-936-S45RRGQ GRU-24 CONTACT BOARD TERMINAL WIRE BOARD TERMINAL WIRE BOARD TERMINAL N.C. MON_CLOSE OR BLACK MON_CLOSE OR BLACK MON_CLOSE OR MON_OPEN MON_OPEN MON_OPEN COMMON WHITE COMMON ORANGE COMMON 12-30 VDC/AC COMMON...

  • Page 27: Loop Rack Installation

    PLUG-IN DETECTOR INSTALLATION The Toro operator comes equipped with the pre-wired LPR-1 loop rack for safety, phantom, and exit plug in Ÿ loop detectors, making installation quick and efficient. Hardwired loop detectors with harnesses can also be installed. The circuit board has 12 VDC and 24 VDC Ÿ...

  • Page 28: Three-Button Station Connection

    An external three button station may also be installed. See diagram below for wiring instructions, Ÿ NOTE: STOP CMD jumper must be removed if a three button station is installed. Ÿ OPEN CLOSE TIMER ALL-O-MATIC INC. <ENG. ESP.> MON_12/24VDC COMMON MON_CLOSE MON_OPEN...

  • Page 29: Magnetic/Solenoid Lock Connection

    MAGNECTIC/SOLENOID LOCK CONNECTION Magnetic lock installation requires a step down transformer with the appropriate voltage for the specific lock accessory. Connections: Plug the lock device transformer to the 120VAC outlet plug. For Magnetic Lock: Wire nut one wire from transformer directly to one wire of the magnetic lock. The other wire from transformer will be connected to the board relay plug input and the other wire of the magnetic lock connects to the board...

  • Page 30: Radio Receiver Connection

    RADIO RECEIVER CONNECTION 3-wire receiver connections: Connect terminal 1 (common) to COMMON on the radio plug Connect terminal 2 (relay) to RADIO on the radio plug Connect terminal 3 (12/24V) to +12/24V on the radio plug 4-wire receiver connections: Connect the 2 gray (relay wires) to the RADIO and COMMON on the radio plug Connect the black (common/negative) to the COMMON on the radio plug Connect the red (power/positive) to the +12/24V of the radio plug MOTOR 2...

  • Page 31: Solar Panel Connection

    See next page to wire an external charger to the board. For a solar installation, upgrade the batteries according to usage. For information on solar applications (solar panel sizes, battery size, etc.), please call ALL-O-Matic. OPEN CLOSE TIMER ALL-O-MATIC INC.

  • Page 32: External Solar System Installation

    When using an external solar package, connect batteries straight into the LINE IN input. The batteries will need to be upgraded according to usage. See wiring below. For information on solar applications (solar panel sizes, battery size, etc.), please call ALL-O-Matic. OPEN...

  • Page 33: Emergency Release Instructions

    EMERGENCY RELEASE To release the gate for manual operation, follow these steps: 1. Slide the cover of the release compartment forward. 2. Insert the key and turn the key clockwise to the unlock position. 3. Turn the knob clockwise to release the motor. NOTE: Make sure the white bar on the knob is on the position opposite the triangle indicator.

  • Page 34: Warranty And Customer Record

    Labor charges for dealer service or replacement are the responsibility of the owner. These warranties are in lieu of all other warranties either expressed or implied, and ALL-O-MATIC INC shall not be liable for consequential damage. All implied warranties of merchantability and or fitness for a particular purpose are hereby disclaimed and excluded.
