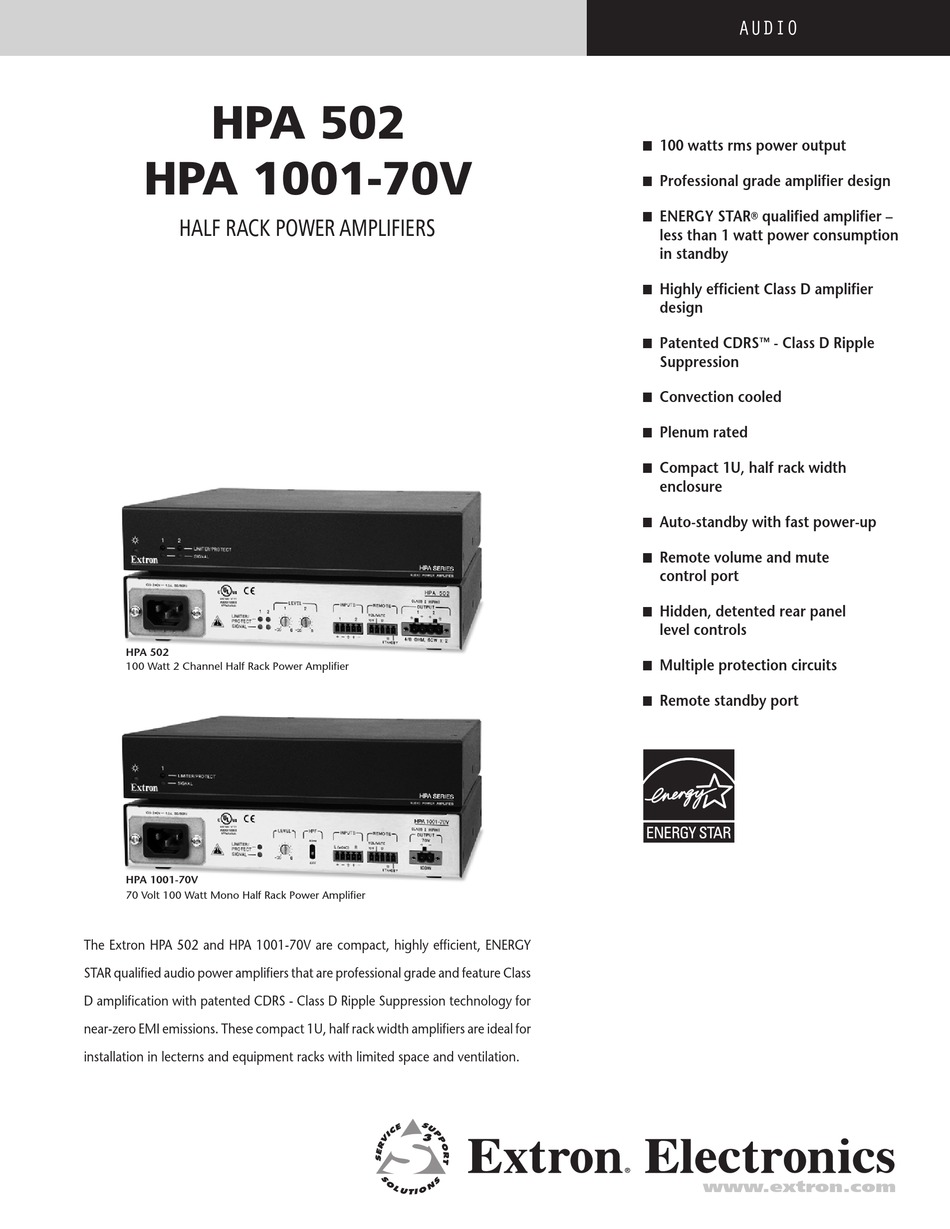

HPA 502
HPA 1001-70V
Half Rack PoweR amPlifieRs
HPA 502
100 Watt 2 Channel Half Rack Power Amplifier
HPA 1001-70V
70 Volt 100 Watt Mono Half Rack Power Amplifier
The Extron HPA 502 and HPA 1001-70V are compact, highly efficient, ENERGY
STAR qualified audio power amplifiers that are professional grade and feature Class
D amplification with patented CDRS - Class D Ripple Suppression technology for
near-zero EMI emissions. These compact 1U, half rack width amplifiers are ideal for
installation in lecterns and equipment racks with limited space and ventilation.
audio
100 watts rms power output
n
Professional grade amplifier design
n
ENERGY STAR
qualified amplifier –
®
n
less than 1 watt power consumption
in standby
Highly efficient Class D amplifier
n
design
Patented CDRS
- Class D Ripple
™
n
Suppression
Convection cooled
n
Plenum rated
n
Compact 1U, half rack width
n
enclosure
Auto-standby with fast power-up
n
Remote volume and mute
n
control port
Hidden, detented rear panel
n
level controls
Multiple protection circuits
n
Remote standby port
n
www.extron.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Extron electronics HPA 1001-70V
Summary of Contents for Extron electronics HPA 1001-70V
- Page 1 HPA 1001-70V 70 Volt 100 Watt Mono Half Rack Power Amplifier The Extron HPA 502 and HPA 1001-70V are compact, highly efficient, ENERGY STAR qualified audio power amplifiers that are professional grade and feature Class D amplification with patented CDRS - Class D Ripple Suppression technology for near-zero EMI emissions.
- Page 2 HPA 502 provides greater power output for larger rooms than smaller amplifiers with lower power ratings. n 100 watts rms output for 70 volt speaker systems - HPA 1001-70V – The HPA 1001-70V provides greater power output for larger rooms than smaller amplifiers with lower power ratings.
-
Page 3: Specifications
THD + Noise ... <0.05% @ 1 kHz at full rated power, 8 ohms S/N ... >100 dB (unweighted) Damping factor (HPA 502 only) ... >100 @ 8 ohms High pass filter (HPA 1001-70V only) ... 80 Hz, 12 dB per octave (switch selectable) Control/remote – Amplifier HPA 502 CLASS 2 WIRING Control port... -
Page 4: Application Diagrams
Speakers H PA RS-232 Control PC (2) LCD Projector DVI Input Laptop HPA Series AUDIO POWER AMPLIFIER HPA 1001-70V - Front HPA 502 100-240V CLASS 2 WIRING INPUTS REMOTE OUTPUT VOL/MUTE 4/8 OHM 50W x 2 STANDBY HPA 1001-70V - Back...
