Pre-drill for #8 woodscrews—do NOT use larger diameter screws; they may split the console wood!
Drill COUNTERTOP with .173" diameter (#17 drill) clear holes. Pre-drill CONSOLE WOODEN
ENDPIECES from below with .136" diameter (#29 drill) tap holes. Use hole locations as shown.
10"
21 1/2"
#8
woodscrew
(typ 4)
R-5 / Sep 02 R-5 / Jan 97

UNPACKING THE CONSOLE

The console is shipped as two packages. One (larger) carton contains the
console and technical documentation; the other (smaller) contains the
rackmount power supply, connecting cable, and connector kit.

MAINFRAME INSTALLATION

DO NOT CONNECT THE R-5 CONSOLE TO ITS POWER SUPPLY, AND DO
NOT CONNECT THE POWER SUPPLY TO THE AC POWER LINE UNTIL
INSTRUCTED TO DO SO.

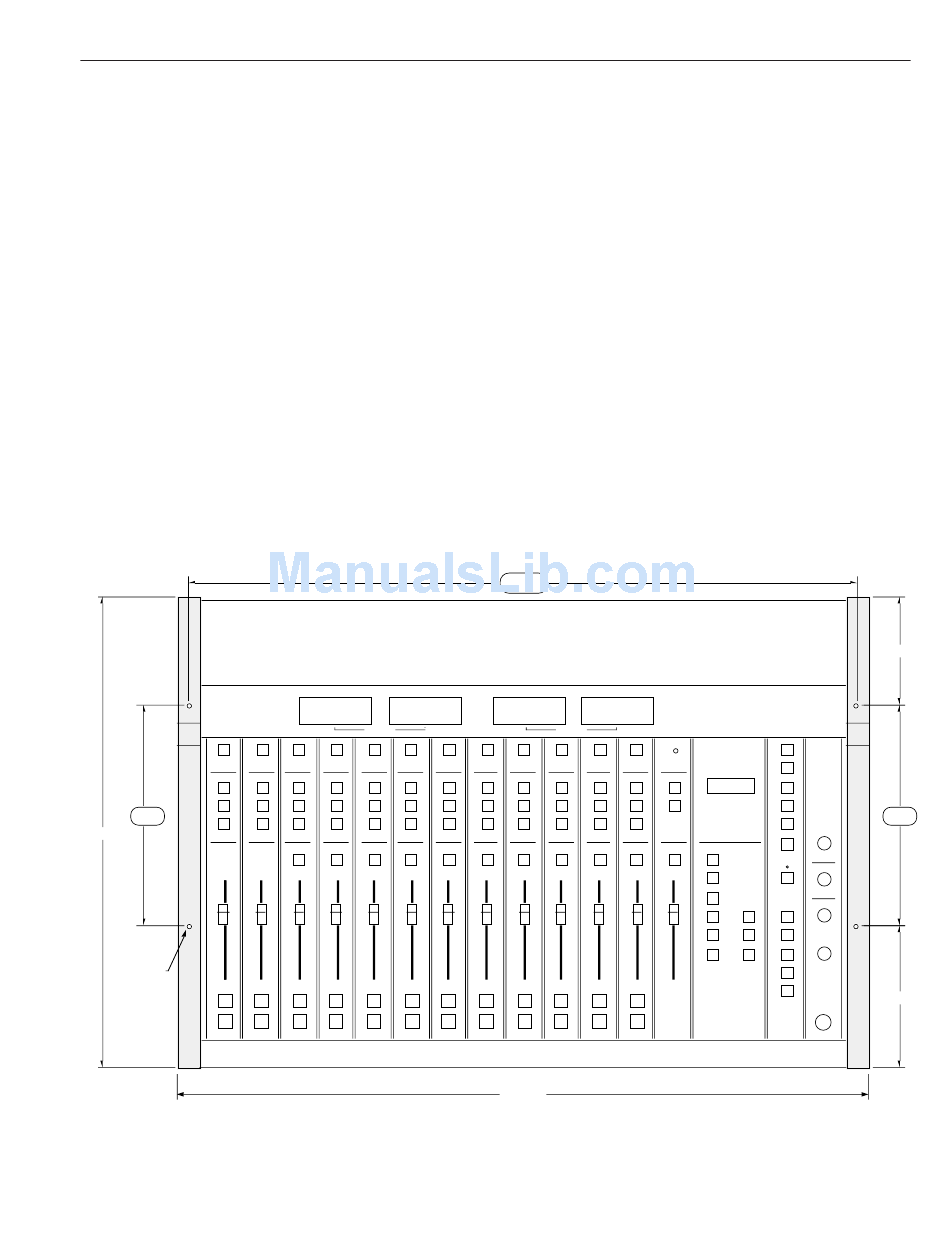

It is not necessary to prepare the counter by making a cutout, since the
R-5 is mounted above the counter top. If you will be securing the console
to a counter top, you will need to drill mounting holes for four #8
woodscrews as shown in the drawing below.
PROGRAM
Attach the console mainframe to the counter top by screwing up through
the counter into the tap holes you have drilled into the bottom of the
mainframe's left and right wooden end pieces (two per side).
30.3"
AUDITION
31 3/8"
F S / B I
IRST TEPS ASIC NFO
Page 1 - 2
5"
10"
6 1/2"
