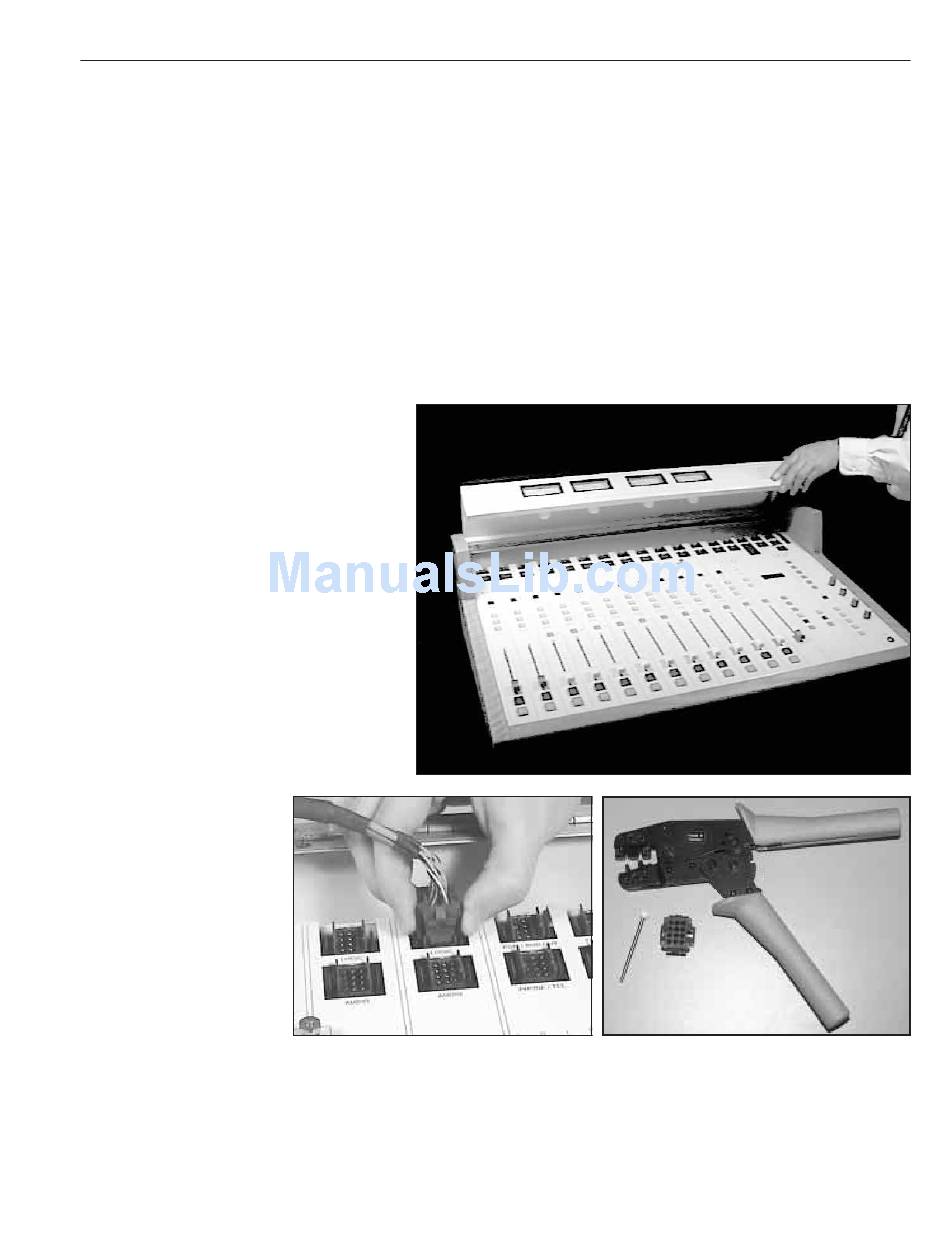

All R-5 console wiring takes
place at the top of the
console, underneath the
hinged meterbridge.
R-5 / Apr 00 R-5 / Jan 97

WIRING OVERVIEW

All audio/control connections and end-user programming of R-5 console
functions take place at 12-pin AMP-type connectors located along the top
of the console, directly underneath the hinged meterbridge (see top of
drawing on page 1-1). Each connector consists of a printed-circuit board
("PCB") mounted female socket and a supplied mating male plug.
Close-up of a wired-up 12-pin I/O connector plug
being inserted into its PCB-mounted socket.
A connector kit is included with each console, and consists of mating
plugs, a crimp tool (Paladin model PA1645), an appropriate number of
crimp type wiring pins (.062" pin diameter; to be used with 22 gauge wire)
and a pin extractor tool (used to remove crimp pins that have been
accidentally inserted in the wrong connector block hole, or if rewiring or
wiring repair is needed).
F S
IRST TEPS
The supplied crimp tool (with extractor pin) is used
to wire up all I/O connector plugs.
/ B I
ASIC NFO
Page 1 - 6
