Summary of Contents for ORTEC 9306

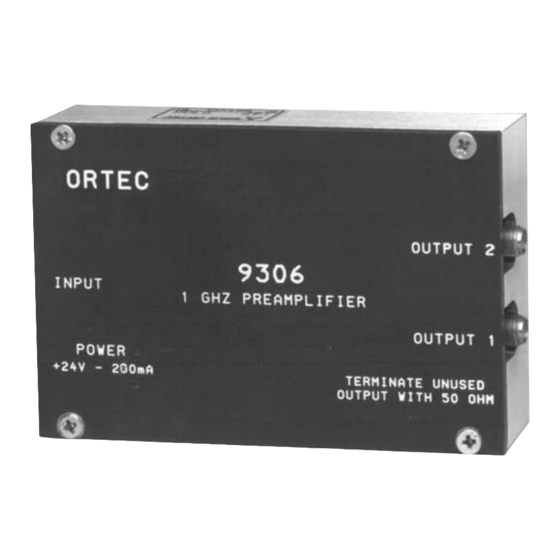

- Page 1 Model 9306 1-GHz Preamplifier Operating and Service Manual ® Printed in U.S.A. ORTEC Part No. 761700 1202 Manual Revision F...
- Page 2 In the event ORTEC fails to manufacture or deliver items called for in this agreement or purchase order, ORTEC’s exclusive liability and buyer’s exclusive remedy shall be release...
-
Page 3: Table Of Contents
CONTENTS WARRANTY ............... ii SAFETY INSTRUCTIONS AND SYMBOLS . -
Page 4: Safety Instructions And Symbols
SAFETY INSTRUCTIONS AND SYMBOLS This manual contains up to three levels of safety instructions that must be observed in order to avoid personal injury and/or damage to equipment or other property. These are: DANGER Indicates a hazard that could result in death or serious bodily harm if the safety instruction is not observed. -
Page 5: Safety Warnings And Cleaning Instructions
SAFETY WARNINGS AND CLEANING INSTRUCTIONS DANGER Opening the cover of this instrument is likely to expose dangerous voltages. Disconnect the instrument from all voltage sources while it is being opened. WARNING Using this instrument in a manner not specified by the manufacturer may impair the protection provided by the instrument. -
Page 7: Description
An output rise time of 350 ps and a non- connection to two different instruments. Both inverting gain of 100 make the Model 9306 ideal for outputs are ac-coupled, short-circuit protected, and use with microchannel-plate photomultipliers,... -
Page 8: Weight
Therefore, the magnitude of the input signal must be less than 1 V. Excessive input voltages will damage the 9306. 4. MAINTENANCE The 9306 requires very little maintenance other than routine removal of dust and tightening of mechanical connections.
