4. Power cables connection

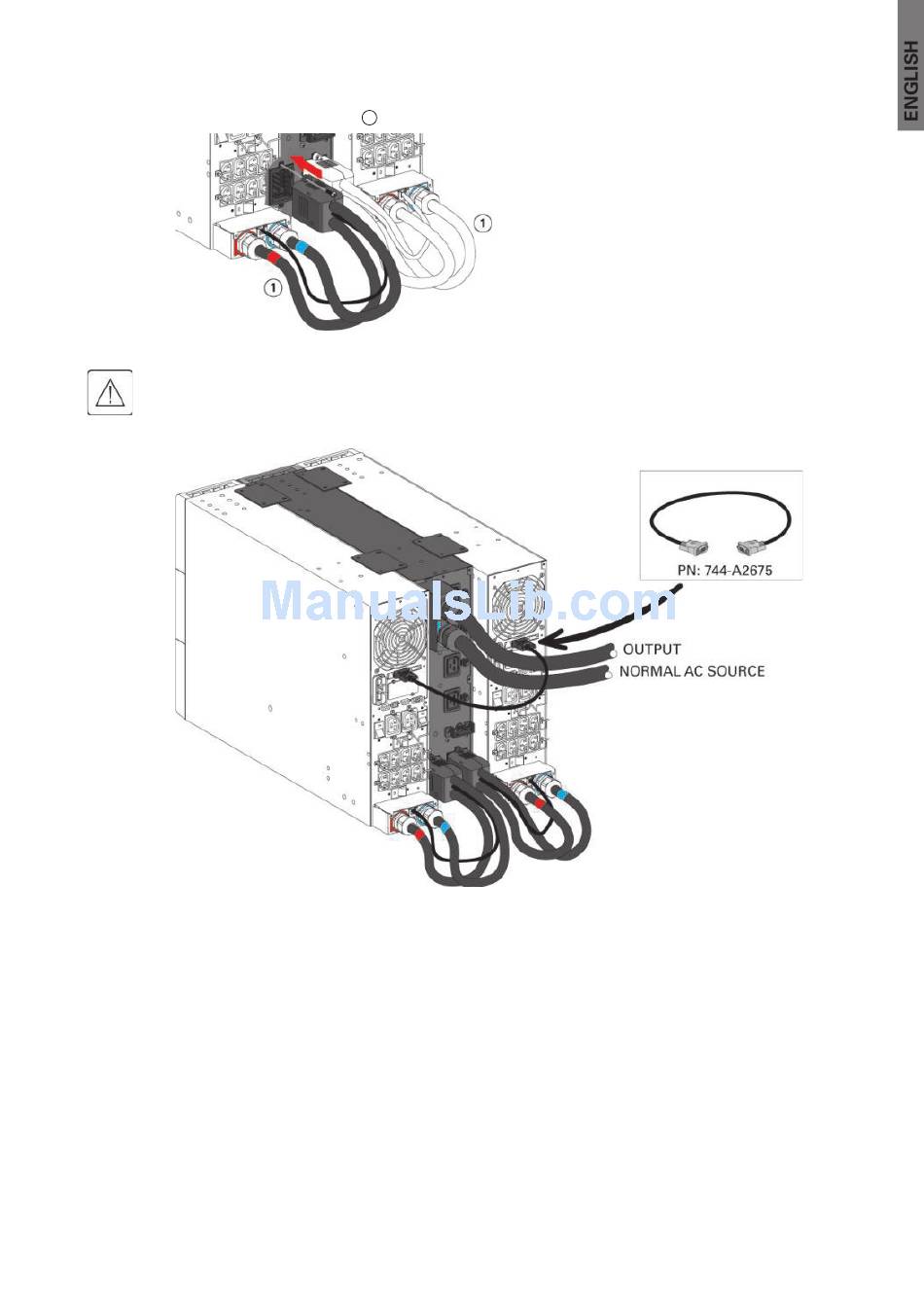

10. Connect the I/O cord Set
connector to the ModularEasy, and secure it by fixing the two locking screws
1
11. Connect the two UPS together with the 9PX parallel cable and lock it.
Use of specific parallel cable is mandatory for first start up and optimal use.
Page 15
614-09354-01_EN
