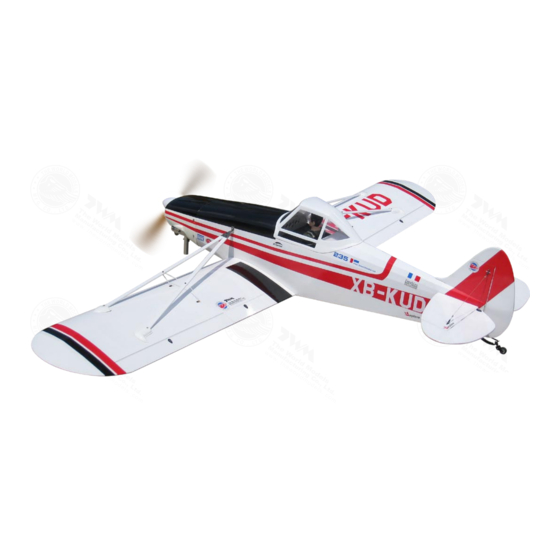

1/4 PIPER PA-25 PAWNEE
1/4 PIPER PA-25 PAWNEE
Requires: 50 c.c. gasoline engine,
5-channel radio w/ 8 high torque servos.
Wing Span
Wing Area
Flying Weight
Fuselage Length
Warning! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of engine powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
The World Models
Manufacturing Co., LTD.
www.theworldmodels.com
A318PO28161303
Specifications
* Specifications are subject to change without notice. *
108 in / 2740 mm
1302 sq in / 84 sq dm
20.5 lbs / 9300 g
68.5 in / 1740 mm
ALMOST-READY-TO-FLY (ARF) SERIES
INSTRUCTION MANUAL
( A318 )
FACTORY PRE-FABRICATED
MADE IN CHINA
