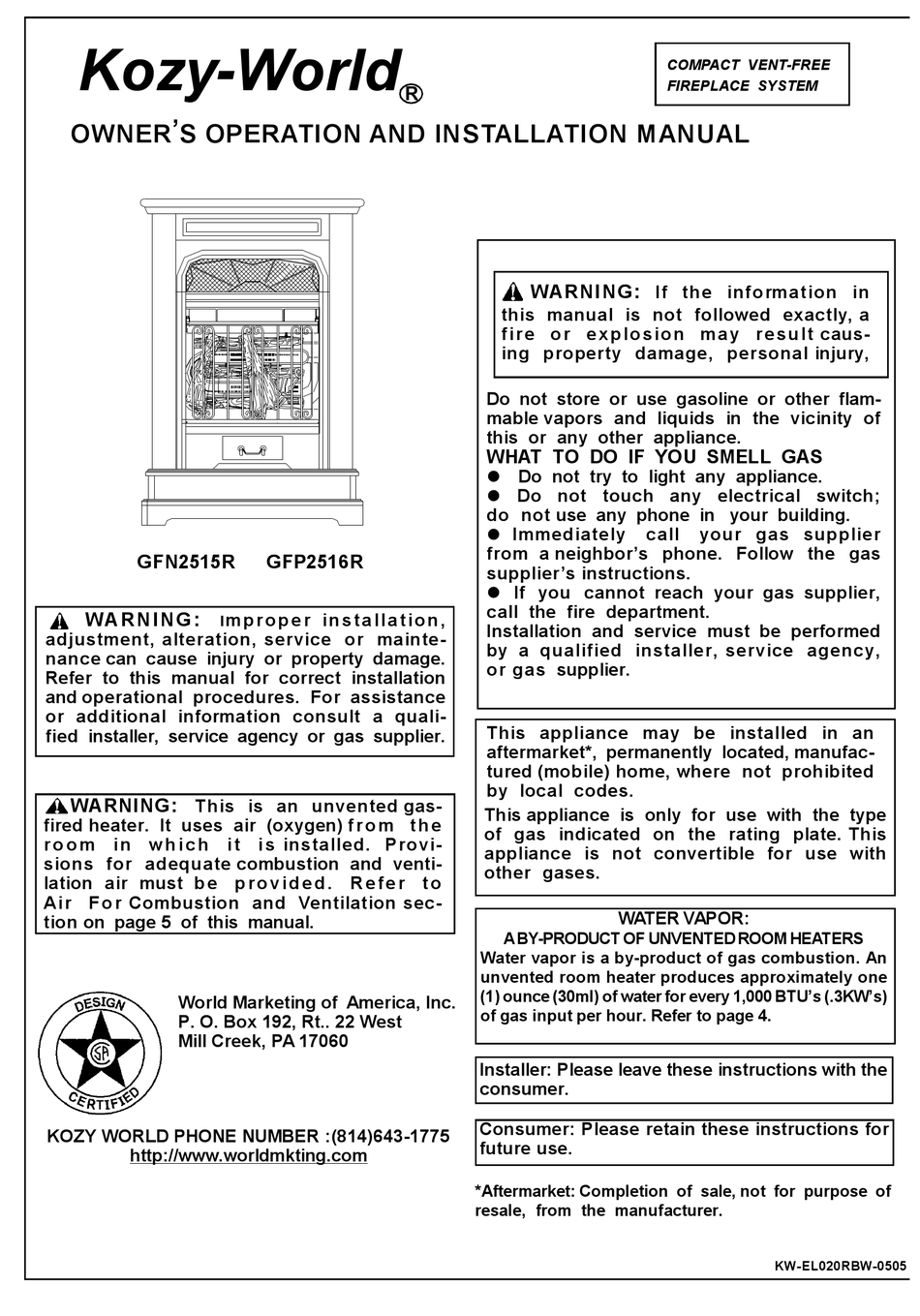

OWNER ' S OPERATION AND INSTALLATION MANUAL
GFN2515R
WAR N I N G :
adjustment, alteration, service or mainte-
nance can cause injury or property damage.
Refer to this manual for correct installation
and operational procedures. For assistance
or additional information consult a quali-
fied installer, service agency or gas supplier.
WARNING:
This is an unvented gas-
fired heater. It uses air (oxygen) f r o m t h e
r o o m i n w h i c h i t i s installed. Provi-
sions for adequate combustion and venti-
lation air must b e p r o v i d e d . R e f e r t o
Air F o r Combustion and Ventilation sec-
tion on page 5 of this manual.
World Marketing of America, Inc.
P. O. Box 192, Rt.. 22 West
Mill Creek, PA 17060
KOZY WORLD PHONE NUMBER :(814)643-1775
http://www.worldmkting.com
GFP2516R
m p r o p e r in s t a ll a t i o n ,
I
R
WARNING:
this manual is not followed exactly, a
f ir e o r e x p lo sio n ma y r e su lt caus-
ing property damage, personal injury,
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
l Do not try to light any appliance.
l Do not touch any electrical switch;
do not use any phone in your building.
l Immediately
from a neighbor's phone. Follow the gas
supplier's instructions.
l If you cannot reach your gas supplier,
call the fire department.
Installation and service must be performed
by a qualified installer, service agency,
or gas supplier.
This appliance may be installed in an
aftermarket*, permanently located, manufac-
tured (mobile) home, where not prohibited
by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases.
A BY-PRODUCT OF UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combustion. An
unvented room heater produces approximately one
(1) ounce (30ml) of water for every 1,000 BTU's (.3KW's)
of gas input per hour. Refer to page 4.
Installer: Please leave these instructions with the
consumer
.
Consumer: Please retain these instructions for
future use.
*Aftermarket: Completion of sale, not for purpose of
resale, from the manufacturer.
1
COMPACT VENT-FREE
FIREPLACE SYSTEM
If the information in
call
your gas supplier
WATER VAPOR:
KW-EL020RBW-0505
