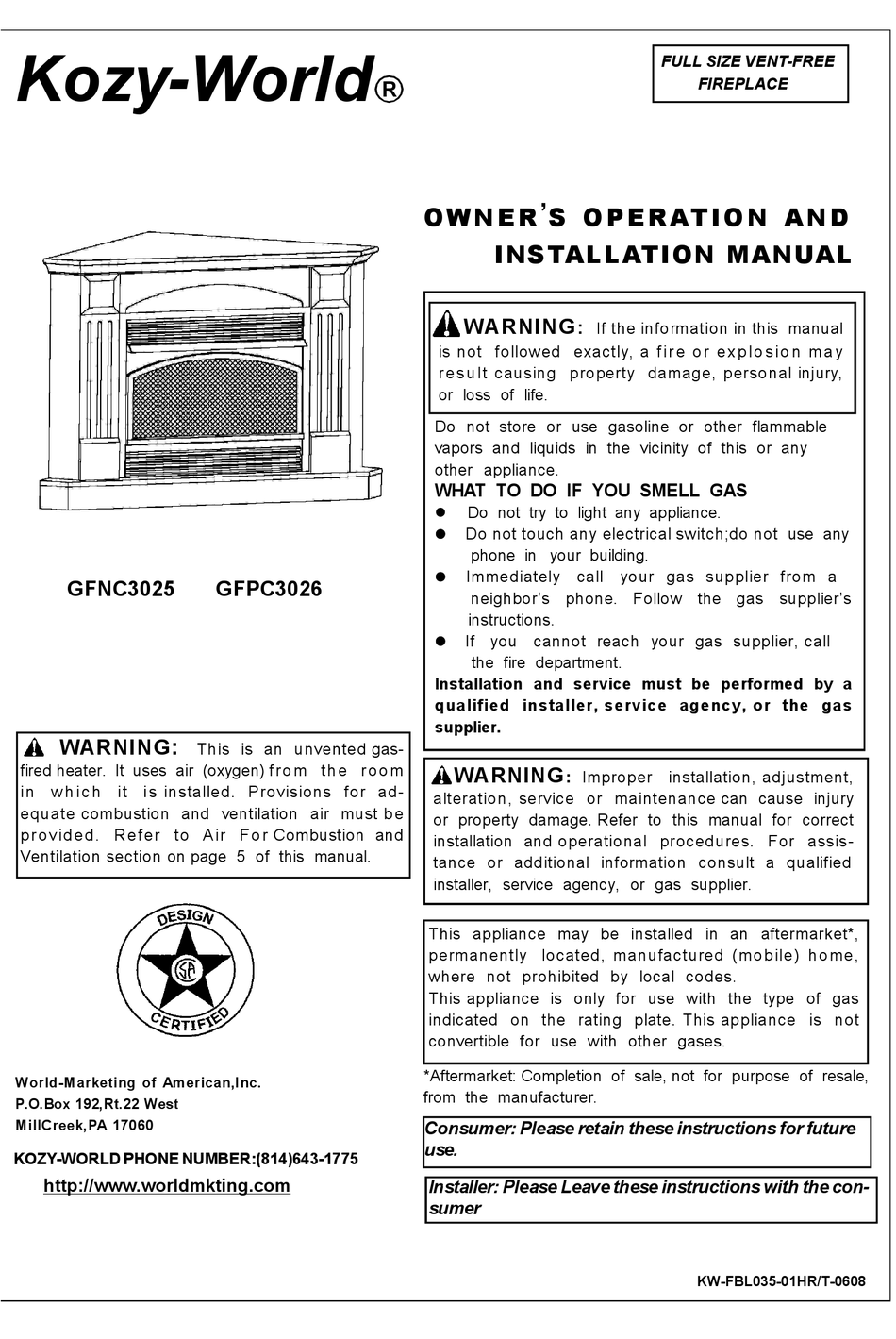

Kozy-World
GFNC3025
WARNING:
fired heater. It uses air (oxygen) f ro m t h e r o o m
i n
w h i c h
i t i s installed. Provisions for ad-
equate combustion and ventilation air must b e
p r o vid ed . R e f er t o A ir F o r Combustion and
Ventilation section on page 5 of this manual.
World-M arketing of American,Inc.
P.O.Box 192,Rt.22 West
MillCreek,PA 17060
KOZY-WORLD PHONE NUMBER:(814)643-1775
http://www.worldmkting.com
GFPC3026
This is an unvented gas-
1
R
OW N E R ' S O P E R AT I O N A N D
INSTALLATION MANUAL
WARNING
is not followed exactly, a f i r e o r e x p l o s i o n m a y
r e s u l t causing property damage, personal injury,
or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS
l
Do not try to light any appliance.
l
Do not touch any electrical switch;do not use any
phone in your building.
l
Immediately call
neighbor's phone. Follow the gas supplier's
instructions.
l
If you
cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by a
qualified installer, service agency, or the gas
supplier.
WARNING
alteration, service or maintenance can cause injury
or property damage. Refer to this manual for correct
installation and operational procedures. For assis-
tance or additional information consult a qualified
installer, service agency, or gas supplier.
This appliance may be installed in an aftermarket*,
permanently located, manufactured (mo b ile) h o me,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
*Aftermarket: Completion of sale, not for purpose of resale,
from the manufacturer.
Consumer: Please retain these instructions for future
use.
InstaIIer: Please Leave these instructions with the con-
sumer

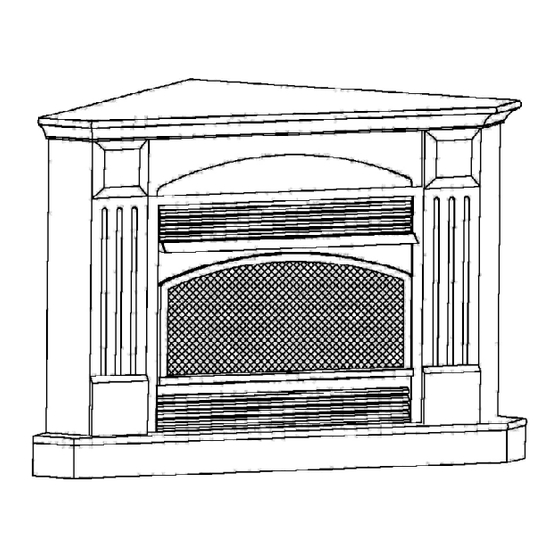

FULL SIZE VENT-FREE
FIREPLACE
:
If the information in this manual
your gas supplier from a
: Improper installation, adjustment,
KW-FBL035-01HR/T-0608
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kozy-World GFNC3025
Summary of Contents for Kozy-World GFNC3025
- Page 1 *Aftermarket: Completion of sale, not for purpose of resale, World-M arketing of American,Inc. from the manufacturer. P.O.Box 192,Rt.22 West MillCreek,PA 17060 Consumer: Please retain these instructions for future use. KOZY-WORLD PHONE NUMBER:(814)643-1775 http://www.worldmkting.com InstaIIer: Please Leave these instructions with the con- sumer KW-FBL035-01HR/T-0608...
-
Page 2: Table Of Contents
Make certain you read and understand WARNING Important Safety Information ....2 all warnings. Keep this manual for Model GFNC3025 is equipped for Air for Combustion and Ventilation..5 reference. It is your guide to safe Natural gas. Field conversion is not Assembly Installtion.. -
Page 3: Safety Information
SAFETY INFORMATION 17. Do not operate heater if any log State of Massachusetts: The instal- is broken. Do not operate heater Continued lation must be made by a licensed if any log is chipped (dime-sized plumber or gas fitter in the Common- or larger).of 4,500 feet could 8. -
Page 4: Local Codes
UNPACKING LOCAL CODES lnstall and use heater with care. 1. Remove top inner pack. F o l lo w al l lo c a l c o d e s. In t h e 2. Tilt carton so that fireplace is upright. absence of local codes, use the 3. -
Page 5: Air For Combustion And Ventilation
AIR FOR COMBUSTION AND VENTILATION Confined and Unconfined Space Unusually Tight Construction WARNING : This heater The air that leaks around doors and The National Fuel Gas Code, ANS shall not be installed in a confined windows may provide enough fresh Z223.1 defines a confined space as a space or unusually tight construc- space whose volume is less than 50... - Page 6 3. Add the Btu/Hr of all fuel burning appliances in the space. Vent-free heater Btu/Hr Example: Gas water heater* Btu/Hr Gas water heater 30,000 Btu/Hr Gas furnace Btu/Hr Vent-free heater 26,000 Btu/Hr Vented gas heater Btu/Hr Total 56,000 Btu/Hr Gas heater logs Btu/Hr Other gas appliances* + Btu/Hr...
-
Page 7: Assembly Installtion
Assembly Instructions For CORNER SURROUND AND HEARTH READ INSTRUCTIONS BEFORE BEGINNING INSTALLATION. Check to see that you have the following. If any part or parts are missing, contact the dealer where you bought the sur- round and hearth. TOOLS REQUIRED: Measuring Tape, Pencil, Level, #2 Phillips Screw Driver, Hammer, Electric Drill, 5/6"... - Page 8 6. Place the assembled fireplace on the middle where it is 30” from the corner and form a 45 degree angle to each side wall. Move the assembled surround to the corner, with side panels close to side walls. Move the fireplace to where it can properly attach the surround.
-
Page 9: Installation
INSTALLATION NOTICE: This heater is intended for use as supplemen- tal heat. Use this heater along with your primary heating system. Do 48” not install this heater as your Minimum primary heat source. If you have a central heating system, you run system's circulating blower while using heater. - Page 10 INSTALLATION Continued CONNECTING TO GAS The installer must supply an external IMPORTANT: Inst all equ ipment SUPPLY regulator. The external regulator will shutoff valve in an accessible location. reduce incoming gas pressure. You The equipment shutoff valve is for WARNING: A qualified techni- must reduce incoming gas pressure turning on or shutting off the gas to cian...
-
Page 11: Gas Connections
INSTALLATION Continued CHECKING GAS CON- NECTIONS WARNING: Test all gas piping CAUTION: Make sure external WARNING: Never use an open and connections for leaks after regulator has been installed be- flame to check for a leak. Apply a installing or servicing. Correct all tween gas supply and heater. -
Page 12: Installing Logs
INSTALLATION Continued INSTALLING LOGS WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts may result in property damage or personal injury. CAUTION: After installation and periodically thereafter, check to en- sure that no flame comes in Figure 10 -Installing Log Set contact with any log. -
Page 14: Cleaning & Maintenance
CLEANING AND MAINTENANCE PILOT FLAME PATTERN again. Remove any large particles of dust, dirt, lint, or pet hair with a F igu re 12 sh ow s a c o rrec t p ilo t WARNING: Disconnect power be- soft cloth or vacuum cleaner flame pattern. -
Page 15: Troubleshooting
TROUBLESHOOTING WARNING: If you smell gas l Shut off gas supply. l Do not try to light any appliance. l Do not touch any electrical switch; do not use any phone in your building. l Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions. -
Page 16: Specifications
SPECIFICATIONS GFNC3025 GFPC3026 Btu(Variable) 28000 28000 Gas Type LP Gas Natural Gas Ignition Piezo/Automatic Piezo/Automatic Manifold Pressure 8"W.C. 3"W.C. Inlet Gas Pressure (In. of water)* Maximum 14" 10.5" Minimum 11" 5" Dimensions, Inches (H × W × D) Heater 36 1/4” × 53 13/16” × 29 1/2”... -
Page 17: Parts List
PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 17 GFNC3025 GFPC3026 of this manual. QUALITY KEY NO PART NUMBER DESCRIPTION LP NG SIT545-218 T-STAT VALVE... - Page 18 PARTS LIST This list contains replaceable parts used in your heater. When ordering parts, follow the instructions listed under Replacement Parts on page 17 GFNC3025 GFPC3026 of this manual. QUALITY KEY NO PART NUMBER DESCRIPTION LP NG BB26000 LOGS TOP PANEL...
