2. INTRODUCTION
The KA professional rack amplifier line has been designed to give
answers to all the needs of touring and installation applications
in which a large amount of power is needed together with the
maximum flexibility, over low sizes and weight. The sophisticate
electronics on-board allow to reach outstanding output power
levels with over-high efficiency. DSP on-board can provide
perfect signal processing for all K-array products, providing safe
working conditions and a large choice of dedicated presets to
solve the most parts of the needs of high-end applications. A
dedicated remote control ensures a constant connection with all
the units, allows the total management of the presets installed
and the possibility of the download of new ones.

3. INCLUDED ACCESSORIES

- 2 Rack adapters
- 2 xlr Neutrik cable mt. 0,5
- 1 Lan cable, 8 poles cat5
- 1 adjustment pen screwdriver
- 1 software and utilities CD
- 1 User's manual

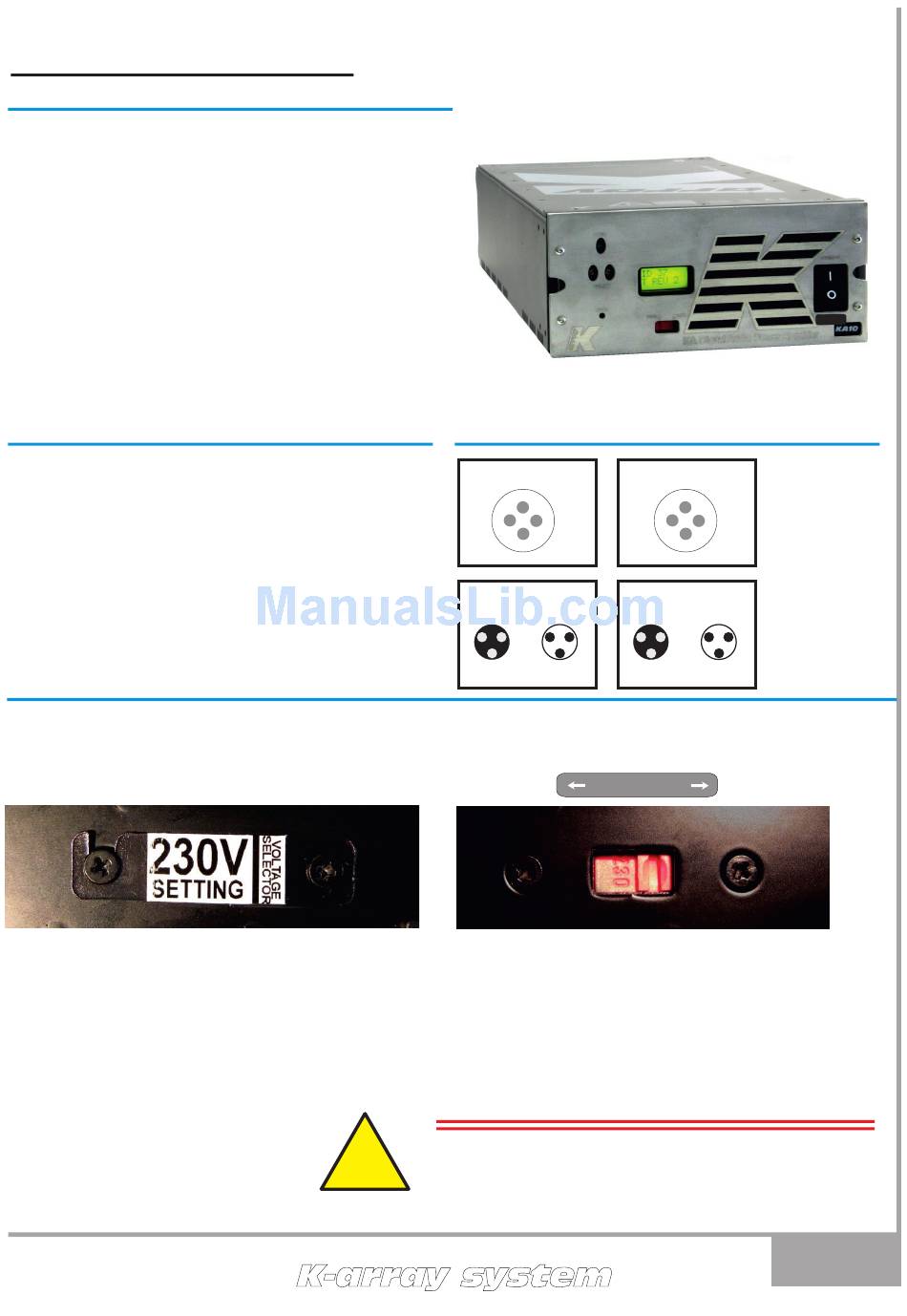

5. VOLTAGE REQUIREMENTS

KA 10 operates safely and without audio discontinuity if the AC voltage stays within either of two operating windows:
(voltage selector on 115 V) or 195-250 V (voltage selector on 230 V), at 50 or 60 Hz.
The device is default set to be connected to 230 V AC Power. To use the device on a 115 V AC Power you need, before connecting it,
to move the voltage selector's cover, just loosening the two screws, and to choose the correct use voltage by the red switch. Be
sure that both voltage set on the selector and AC Power have the same value . Always close the voltage selector's cover before
connecting the device to AC Power. Change the label that points out the correct voltage in use..
USER'S MANUAL
4. WIRING
Speakon connector
CH1 OUT
SUB +
2+
SUB - 2-
1+
CH1 +
XLR connector
CH1 in
CH1 CH1
hot
grd
2 1
3
CH1
cold
CAUTION
!
Connecting a 115V system on a 230V AC Power causes heavy
damages to the device and serious risk for users .
Speakon connector
CH2 OUT
SUB +
2+
1- CH1 - SUB - 2-
1+
CH2 +
XLR connector
CH1 out CH2 in
CH1
CH1
CH2 CH2 CH2
hot
grd hot
grd grd
1 2 2 1
3 3
CH1 CH2
cold cold
115-230
1- CH2 -
CH2 out
CH2
hot
1 2
3
CH2
cold
9 5 - 1 2 5
