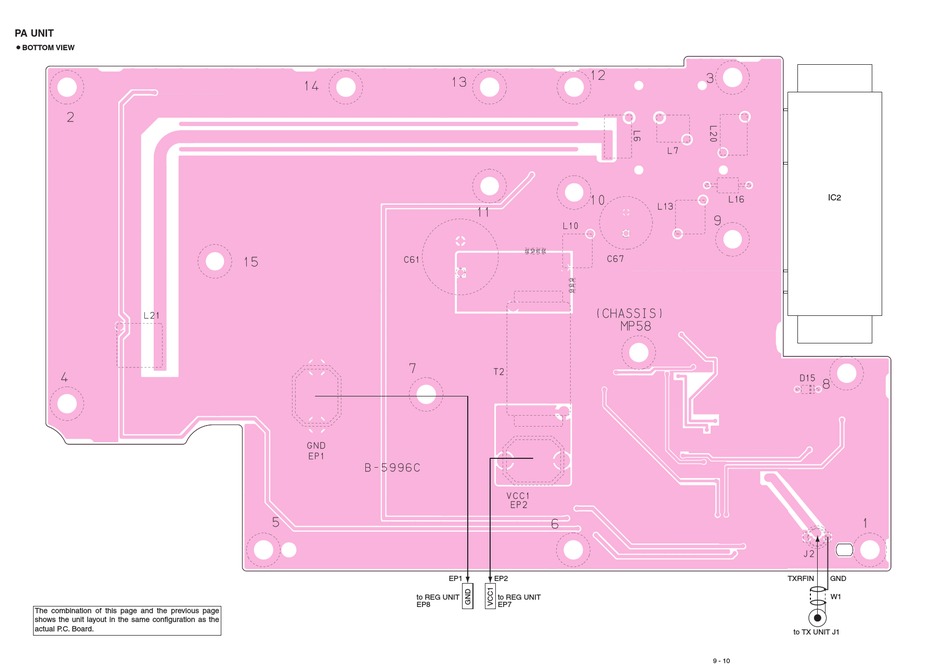

PA UNIT
¡BOTTOM VIEW
The combination of this page and the previous page
shows the unit layout in the same configuration as the
actual P.C. Board.
EP1
EP2
to REG UNIT
to REG UNIT
EP8
EP7
IC2
TXRFIN
GND
W1
to TX UNIT J1
9 - 10
