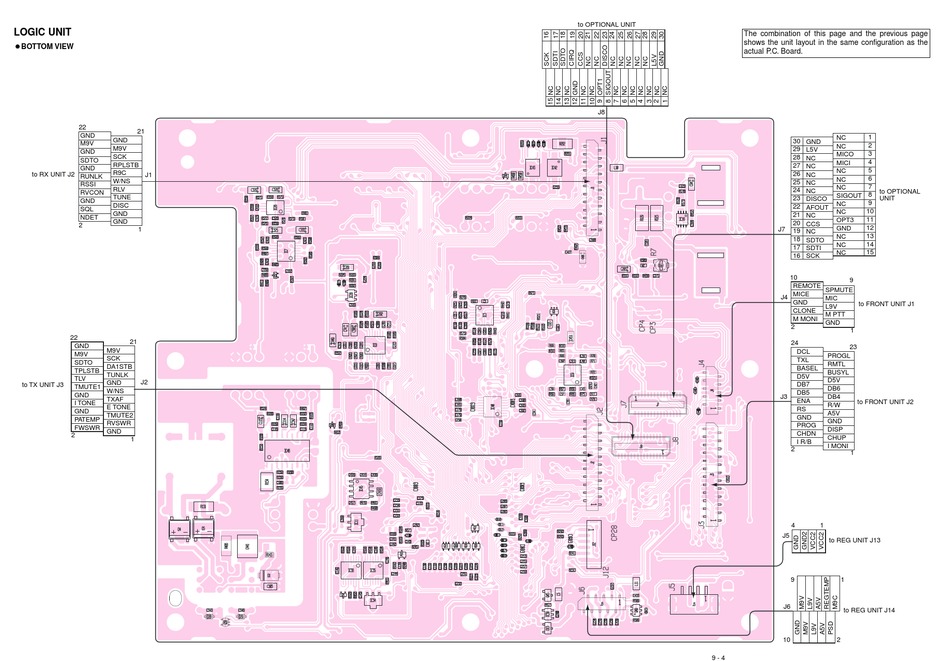

LOGIC UNIT

¡ ¡ BOTTOM VIEW
22
21
GND
GND
M9V
M9V
GND
SCK
SDTO
RPLSTB
GND
R9C
to RX UNIT J2
J1
RUNLK
W/NS
RSSI
RLV
RVCON
TUNE
GND
DISC
SQL
GND
NDET
GND
2
1
22
21
GND
M9V
M9V
SCK
SDTO
DA1STB
TPLSTB
TUNLK
TLV
GND J2
to TX UNIT J3
TMUTE1
W/NS
GND
TXAF
I TONE
E TONE
GND
TMUTE2
PATEMP
RVSWR
FWSWR
GND
2
1
to OPTIONAL UNIT
The combination of this page and the previous page
shows the unit layout in the same configuration as the
actual P.C. Board.
J8
9 - 4
NC 1
30 GND
2
NC
29
L5V
MICO 3
28
NC
4
MICI
27 NC
5
NC
26
NC
6
NC
25
NC
7
NC
24
NC
to OPTIONAL
8
SIGOUT
23 UNIT
DISCO
9
NC
22
AFOUT
10
NC
21 NC
OPT3 11
20
CCS
GND 12
J7
19
NC
13
NC
18 SDTO
14
NC
17 SDTI
NC 15
16 SCK
10
9
REMOTE
SPMUTE
MICE
J4
MIC
GND
to FRONT UNIT J1
L9V
CLONE
M PTT
M MONI
GND
2
1
24
23
DCL
PROGL
TXL
RMTL
BASEL
BUSYL
D5V
D5V
DB7
DB6
DB5
J3 DB4
ENA to FRONT UNIT J2
R/W
RS
A5V
GND
GND
PROG
DISP
CHDN
CHUP
I R/B
I MONI
2
1
4 1
J5
to REG UNIT J13
9 1
J6
to REG UNIT J14
10 2
