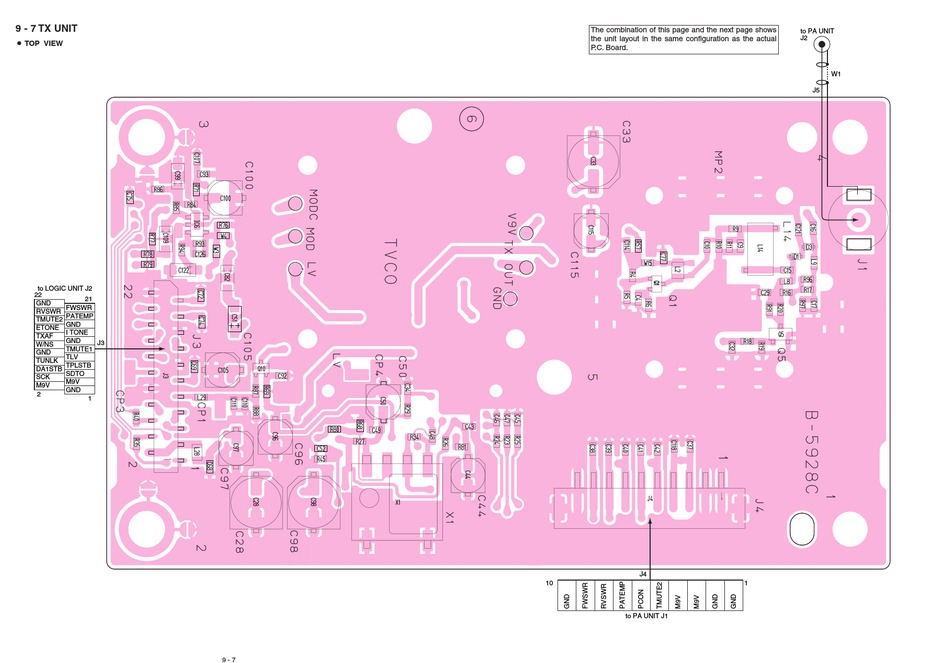

9 - 7 TX UNIT
¡ TOP VIEW
to LOGIC UNIT J2
22
21
GND
FWSWR
RVSWR
PATEMP
TMUTE2
GND
ETONE
I TONE
TXAF
GND
J3
W/NS
TMUTE1
GND
TLV
TUNLK
TPLSTB
DA1STB
SDTO
SCK
M9V
M9V
GND
2
1
9 - 7
The combination of this page and the next page shows
the unit layout in the same configuration as the actual
P.C. Board.
J4
10
to PA UNIT J1
to PA UNIT
J2
W1
J5
1
