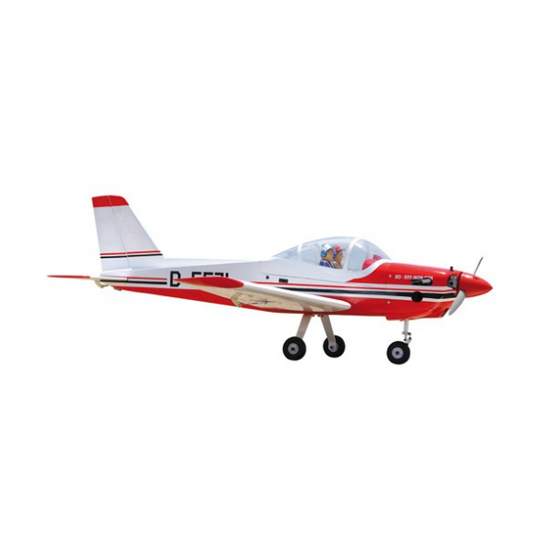

SPECIFICATION
 Wingspan :
 Length
 Weight
 Radio
 Servo
 Engine
Instruction Manual book
2,200 mm
:
1,640 mm
:
6.5 kg
:
8 channels.
:
09 servos
:
26-35 CC Gas.
86.61 in.
64.57 in.
14.3Lbs.
Made in Vietnam.
ITEM CODE: BH122.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BO-209 MONSUN and is the answer not in the manual?

Questions and answers

Related Manuals for arf BO-209 MONSUN

Summary of Contents for arf BO-209 MONSUN

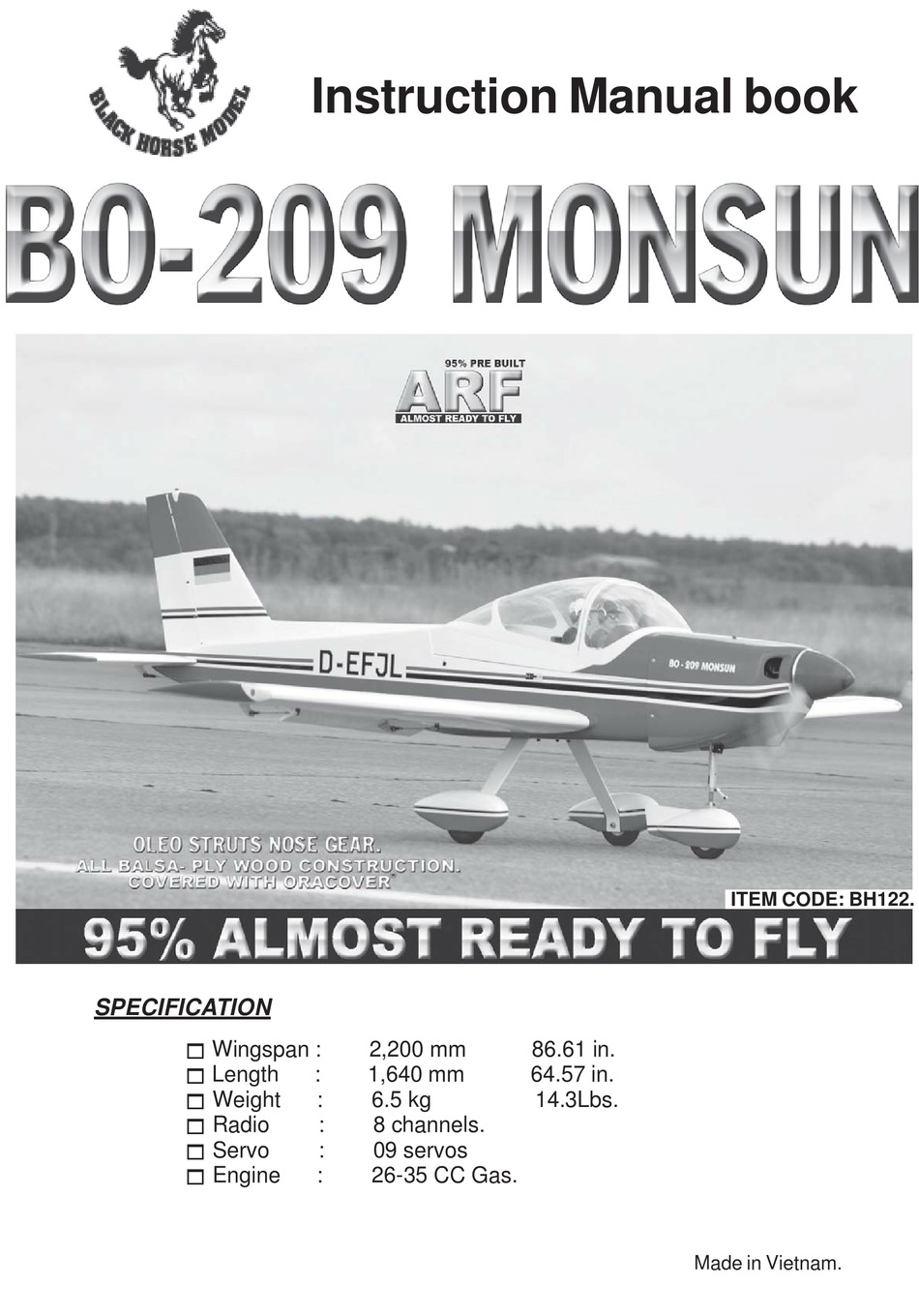

  • Page 1 Instruction Manual book ITEM CODE: BH122. SPECIFICATION  Wingspan : 2,200 mm 86.61 in.  Length 1,640 mm 64.57 in.  Weight 6.5 kg 14.3Lbs.  Radio 8 channels.  Servo 09 servos  Engine 26-35 CC Gas. Made in Vietnam.
  • Page 2 BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your BO 209-209 MON SUN. Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Caution: this model is not a toy! Wing warp: Hold the panel twisted gently If you are a beginner to this type of powered in the opposite direction to model, please ask an experienced model flyer the warp, and apply warm for help and support.

  • Page 4: Installing The Aileron Servo

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. REPLACEMENT SMALL PARTS 1. Aluminium landing gear. 2. Wheel pant. I- AILERON 3. Nose gear set (with oleo struts) 1.INSTALLING THE AILERON SERVO. 4. Wheels.   1) Install the rubber grommets and brass 5.
  • Page 5 BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Electric wire servo tray. 2x 10mm Secure Secure.  3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re- move the masking tape and the servo lead from the thread.

  • Page 6: Installing The Aileron Linkages

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. 2.INSTALLING THE AILERON CONTROL HORN. Control horn of Aileron Control horn Control horn. of Aileron 3.INSTALLING THE AILERON LINKAGES. M3 lock nut 75 mm Mark line 3 X 10mm PLUS glue EPOXY Secure.
  • Page 7 BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. II - FLAP. 2.INSTALLING THE FLAP CONTROL HORN. 1.INSTALLING THE FLAP SERVO. Control horn of Flap. Flap. EPOXY PLUS glue EPOXY 2x10mm. PLUS glue Secure. Control horn of Flap.

  • Page 8: Installing The Engine Mount

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. 3.INSTALLING THE FLAP INSTALLING THE ENGINE MOUNT. LINKAGES . See pictures below: M3 lock nut 75 mm 3 X 10mm Drill a hole 5mm diameter Secure. 5x 70mm Bottom side Aileron.

  • Page 9: Installing The Engine

    BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. INSTALLING THE THROTTLE - CABLE.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the Secure.

  • Page 10: Installing The Stopper Assembly

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. When the stopper assembly is installed in the Throttle cable. tank, the top of the vent tube should rest just below the top surface of the tank. It should not touch the top of the tank.

  • Page 11: Nose Gear Installation

    BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Fuel Tank Tie wrap. Secure. NOSE GEAR INSTALLATION. Blow through one of the lines to ensure 3 x 25mm the fuel lines have not become kinked inside the fuel tank compartment. Air should flow through easily.
  • Page 12 BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. SERVO NOSE GEAR INSTALLATION. Secure.
  • Page 13 BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Drill a hole 5.2mm diameter. MAIN GEAR INSTALATION. PARTS REQUIRED Secure. 5x50mm 5x50mm  1) Assemble and mounting the wheel pants as shown in the following pictures.  2. A drop of C/A glue on the wheel collar screws will help keep them from coming lose during operation.

  • Page 14: Installing The Main Landing Gear

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. INSTALLING THE MAIN LANDING GEAR. Secure.  1. The blind nuts are already mounted in- side the fuselage. Bottom side  2. The holes in the landing gear should be to accept the mounting bolts.
  • Page 15 BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL.  2) While keeping the back edge of the cowl flush with the marks, align the front of Drill a hole 2mm the cowl with the crankshaft of the engine. The diameter. front of the cowl should be positioned so the crankshaft is in nearly the middle of the cowl opening.

  • Page 16: Installing The Spinner

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Secure. Font view INSTALLING THE SPINNER. Install the spinner backplate, propeller and spinner cone. The spinner cone is held in place using two 3mm x 12mm wood screws. ELEVATOR INSTALLATION. SERVO INSTALLATION.

  • Page 17: Horizontal Stabilizer Installation

    BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Elevator servo HORIZONTAL STABILIZER INSTALLATION. See picture below: Bottom elevator. Open. 12 mm 262mm...

  • Page 18: Elevator Control Horn Installa- Tion

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Bottom side. ELEVATOR CONTROL HORN INSTALLA- TION. Elevator control horn install as same as the way of aileron control horn. Please see pic- tures below. 3 x 10mm Control horn of elevator. EPOXY PLUS glue ...

  • Page 19: Elevator Pushrod Installation

    BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. 3 x 10mm R u d d e r servo. Secure. E l e v a t o r E l e v a t o r pushrod pushrod...
  • Page 20 BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Epoxy glue Epoxy glue 95mm C/A glue. C/A glue.
  • Page 21 BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Top side. Secure. Secure Top side.  When you are sure that everything is a aligned correctly, mix up a generous amount of 30 minute epoxy. Apply a thin layer to the slot in the mounting platform and to the verti- cal stabilizer mounting area.
  • Page 22 BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Bottom side. C/A glue. Bottom side. Plastic parts of Vertical stabilize. Plastic parts of elevator pushrod. Top side. C/A glue.

  • Page 23: Installing The Switch

    BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. INSTALLING THE RECEIVER AND BATTERY.       1. Plug the servo leads and the switch lead into the receiver. You may want to plug an aileron extension into the receiver to make plugging in the aileron servo lead easier when you are installing the wing .

  • Page 24: Wing Attachment

    BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. Receiver INSTALLING THE SERVO 80mm WING ATTACHMENT. Locate the aluminium wing dihedral brace. 25mm aluminium tube 848 mm *** Test fit the aluminium tube dihedral brace into each wing haft. The brace should slide in easily.
  • Page 25 BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. 4 x 40mm Right side See picture wing attach to fuselage. Wing bolt. Left side Drill a hole 3mm diameter Drill a hole 3mm diameter...
  • Page 26 BO - 209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. BALANCING.       1) It is critical that your airplane be bal- anced correctly. Improper balance will cause your plane to lose control and crash. THE CENTER OF GRAVITY IS LOCATED 104MM BACK FROM THE LEADING EDGE OF THE WING.

  • Page 27: Control Throws

    BO-209 MON SUN -Item code: BH122 INSTRUCTION MANUAL. CONTROL THROWS.       1) We highly recommend setting up a plane using the control throws listed.       2) The control throws should be meas- ured at the widest point of each control sur- face.
