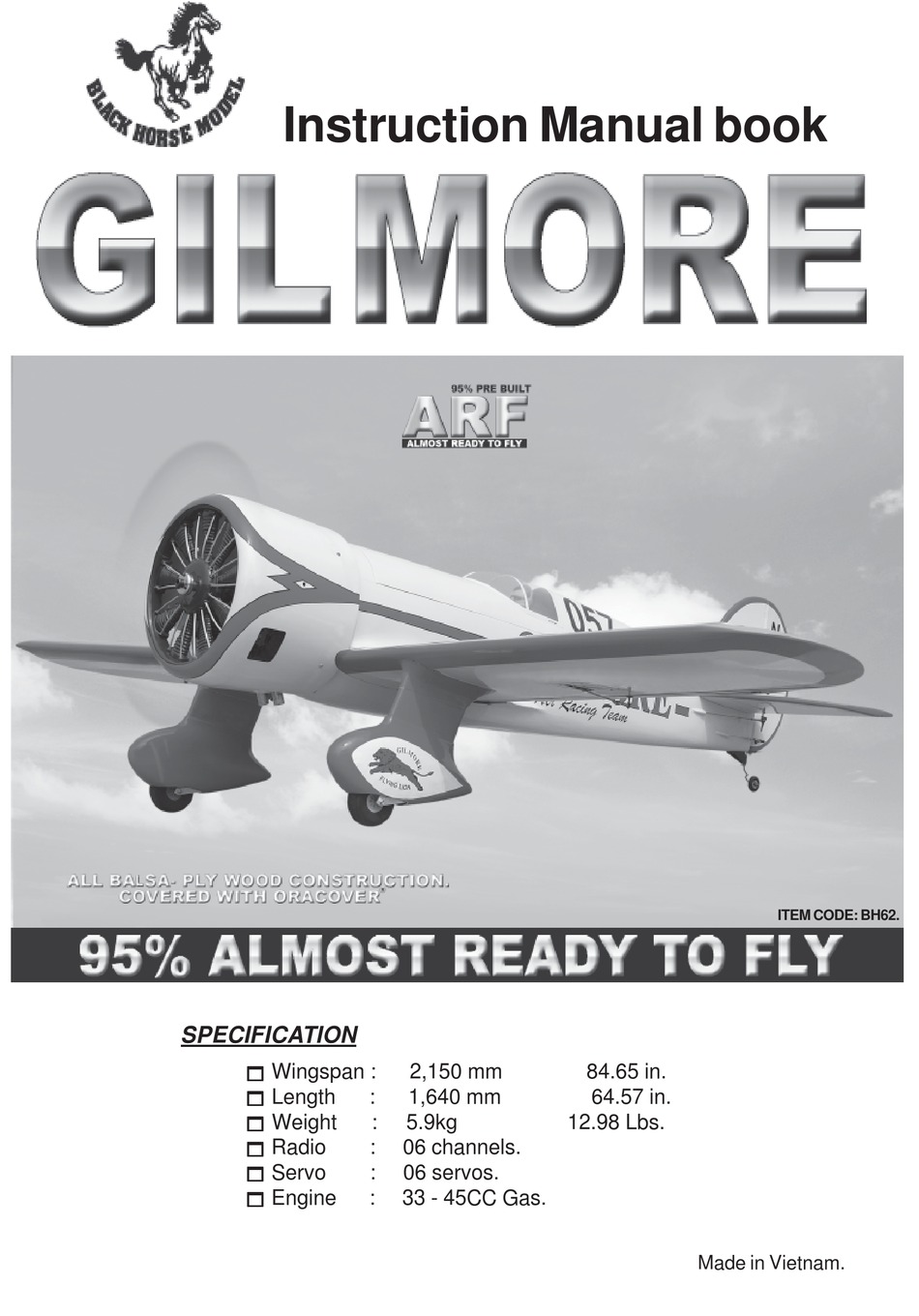

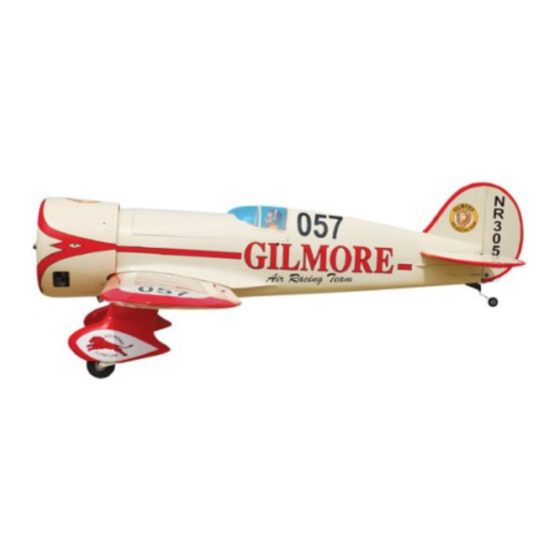

Instruction Manual book
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     Engine
2,150 mm
:
1,640 mm
:
5.9kg
:
06 channels.
:
06 servos.
:
33 - 45CC Gas.
84.65 in.
64.57 in.
12.98 Lbs.
Made in Vietnam.
ITEM CODE: BH62.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GILMORE and is the answer not in the manual?

Questions and answers

Related Manuals for arf GILMORE

Summary of Contents for arf GILMORE

  • Page 1 Instruction Manual book ITEM CODE: BH62. SPECIFICATION      Wingspan : 2,150 mm 84.65 in.      Length 1,640 mm 64.57 in.      Weight 5.9kg 12.98 Lbs.      Radio 06 channels.
  • Page 2 Item code:BH62. INSTRUCTION MANUAL This instruction manual is designed to help you build a great flying aeroplane. Please read this manual thoroughly before starting assembly of your GILMORE. Use the parts listing below to identify all parts. WARNING Please be aware that this aeroplane is not a toy and if assembled or used incorrectly it is capable of causing injury to people or property.

  • Page 3: Safety Precaution

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.

  • Page 4: Installing The Aileron Servos

    GILMORE- Item code:BH62. INSTRUCTION MANUAL REPLACEMENT LARGE PARTS A.Cowling. F1. Aluminium tube wing dihedral brace. INSTALLING THE AILERON SERVOS. B.Wing panel. horizontal Aluminium C.Fuselage.  1. Install the rubber grommets and brass stabilizer. D.Horizontal stabilizer. eyelets onto the aileron servo.
  • Page 5 GILMORE- Item code:BH62. INSTRUCTION MANUAL  3. Drill 1,5mm pilot holes through the block of wood for each of the four mounting screws provided with the servo. Install servo into ai- Temporary pin to leron servo tray as same as picture below.

  • Page 6: Installing The Aileron Linkages

    GILMORE- Item code:BH62. INSTRUCTION MANUAL 2 x 10 mm. Secure Repeat the procedure for the other wing half. INSTALLING THE AILERON CONTROL HORN. Install aileron control horn as same Aileron as picture below. control horn Aileron control horn INSTALLING THE AILERON LINKAGES.
  • Page 7 GILMORE- Item code:BH62. INSTRUCTION MANUAL MAIN GEAR INSTALATION. PARTS REQUIRED 3x15mm 4x12mm 3x15mm Remove covering Secure Bottom side. Repeat the procedure for the other wing half.
  • Page 8 GILMORE- Item code:BH62. INSTRUCTION MANUAL Mark point Secure Mark point. Secure...
  • Page 9 GILMORE- Item code:BH62. INSTRUCTION MANUAL Secure Secure...
  • Page 10 GILMORE- Item code:BH62. INSTRUCTION MANUAL Secure C/A glue Epoxy glue Mark line Remove covering C/A glue Epoxy glue...

  • Page 11: Installing The Engine Mount

    GILMORE- Item code:BH62. INSTRUCTION MANUAL INSTALLING THE ENGINE MOUNT. Drill a hole 6mm diameter Front view. INSTALLING THE ENGINE. Repeat the procedure for the other wing 5x80mm half.

  • Page 12: Installing The Stopper Assembly

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Secure Pushrod wire. FUEL TANK. INSTALLING THE STOPPER ASSEMBLY  1) The stopper has been pre-assembled at the factory. Left side  2) Using a modeling knife, cut one length of silicon fuel line (the length of silicon fuel line...
  • Page 13 GILMORE- Item code:BH62. INSTRUCTION MANUAL Tygon gas tubing not included. Fuel pick- up tube Vent tube Fuel fill tube  5) Test fit the stopper assembly into the tank. It may be necessary to remove some of the flashing around the tank opening using a modeling knife.
  • Page 14 GILMORE- Item code:BH62. INSTRUCTION MANUAL Fuel tank Secure. INSTALLING THE THROTTLE SERVO.  1. Install one adjustable metal connector through the third hole out from the center of one servo arm, enlarge the hole in the servo arm using a 2mm drill bit to accommodate the servo connector.
  • Page 15 GILMORE- Item code:BH62. INSTRUCTION MANUAL  2. While keeping the back edge of the cowl flush with the marks, align the front of 3 x 12mm the cowl with the crankshaft of the engine. The front of the cowl should be positioned so the crankshaft is in nearly the middle of the cowl opening.

  • Page 16: Elevator Servos Installation

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Cut the covering away from the slot. ELEVATOR SERVOS INSTALLATION. Temporary pin to  1. Install the rubber grommets and brass keep hinge centered. collets into the elevator servo. Test fit the servo into the servo tray.
  • Page 17 GILMORE- Item code:BH62. INSTRUCTION MANUAL 4x12mm Drill a hole 3mm. Secure. A+B Epoxy PLUS glue. Bottom side 215 mm Aluminium 12mm Elevator control horn...

  • Page 18: Elevator Pushrod Installation

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Bottom side  Elevator  Elevator pushrod pushrod Left side. Right side. Bend 90 degree Bottom side. Secure. ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. 3x10mm Secure...

  • Page 19: Rudder Servo Installation

    GILMORE- Item code:BH62. INSTRUCTION MANUAL RUDDER SERVO INSTALLATION. Rudder servo install as same as method of elevator servo. See picture below: Rudder Rudder servo control horn Cut the covering R u d d e r away from the slot. servo...

  • Page 20: Rudder Cable Installation

    GILMORE- Item code:BH62. INSTRUCTION MANUAL RUDDER CABLE INSTALLATION.  1. Rudder pushrod install as same as the way of aileron control horn.  2. Rudder push - pull system install as same as picture below. Plastic parts of pushrod. Rudder...

  • Page 21: Mounting The Tail Wheel Bracket

    GILMORE- Item code:BH62. INSTRUCTION MANUAL      3. Secure the tail wheel bracket in place using three 3mm x 15mm wood screws. Be careful not to overtighten the screws. Elevator Secure pushrod Ruddercable Right side MOUNTING THE TAIL WHEEL BRACKET.

  • Page 22: Wing Attachment

    GILMORE- Item code:BH62. INSTRUCTION MANUAL Switch Receiver. engine. WING ATTACHMENT. INSTALLING THE RECEIVER AND BATTERY.  Locate the aluminium wing dihedral       1. Plug the servo leads and the switch brace. lead into the receiver. You may want to plug...

  • Page 23: Installing Cockpit Fuselage

    GILMORE- Item code:BH62. INSTRUCTION MANUAL  3.Insert two wing panels as pictures be- low. Left side A+B Epoxy PLUS glue. Secure. INSTALLING COCKPIT FUSELAGE . See picture below: See picture wing attach to fuselage. Installing the fuselage hatch as same as pic- Pilot ture below.

  • Page 24: Control Throws

    6) Properly balance the propeller. good balance by doing so, then it will be nec- essary to add weight to the nose or tail to We wish you many safe and enjoyable achieve proper balance point. flights with your GILMORE.
