Before commencing assembly please read these instructions thoroughly

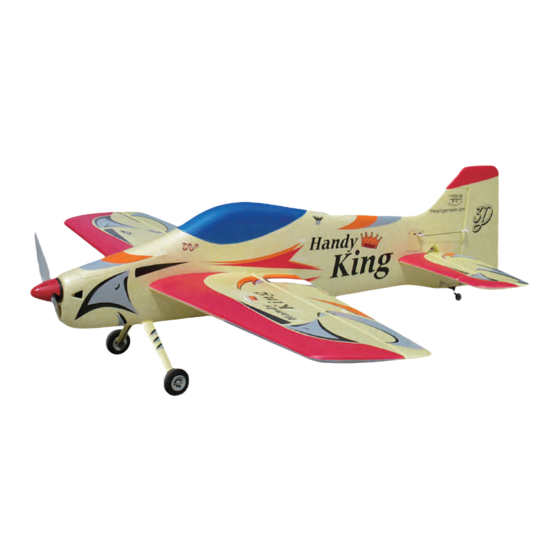

HandyKing EP(40)
Wing Span: 46.5 in / 1180 mm
Wing Area: 565 sq in / 36.4 sq dm
Flying Weight: 53 oz / 1500 g
Fuselage Length: 52 in / 1320 mm
Requires: 4-channel radio w/ 4 mini servos. Outrunner
Warning ! This model is not a toy.
It is designed for maximum performance. Please seek advice if one is not familiar with this kind
of electric powered precision model. Operating this model without prior preparation may cause
injuries. Remember, safety is the most important thing. Always keep this instruction manual at
hand for quick reference.
* Specifications are subject to change without notice.*
THE WINGS MAKER
FACTORY PRE-FABRICATED
ALMOST-READY-TO-FLY (ARF) SERIES
MADE IN CHINA
.
www thewingsmaker com
GM055PO26641106
,
Specifications
Specifications
Motor KM0374810 w/ Propeller Adaptor HW2340102
40A Brushless ESC,11x8E Propeller, 4 cells 14.8V
3200 mAh Li-Po battery & charger.
.
I NSTRUCTI ON M ANUAL
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HandyKing EP and is the answer not in the manual?

Questions and answers

Related Manuals for arf HandyKing EP

Summary of Contents for arf HandyKing EP

  • Page 1 I NSTRUCTI ON M ANUAL Before commencing assembly please read these instructions thoroughly HandyKing EP(40) Specifications Specifications Wing Span: 46.5 in / 1180 mm Wing Area: 565 sq in / 36.4 sq dm Flying Weight: 53 oz / 1500 g Fuselage Length: 52 in / 1320 mm Requires: 4-channel radio w/ 4 mini servos.

  • Page 2: Before You Begin

    HandyKing EP(40) INDEX BEFORE YOU BEGIN PARTS LIST ASSEMBLY P.3-P.9 SAFETY PRECAUTIONS BEFORE YOU BEGIN Read through the manual before you begin, so you will have an overall idea of what to do. Check all parts. If you find any defective or missing parts contact your local dealer. Please DRY FIT and check for defects for all parts that will require CA or Epoxy for final assembly.

  • Page 3: Parts List

    Parts List 1.MAIN WING -- 1 pair FUEL TUBE d2.5xD6x5mm -- 2 pcs CLEVIS PL4112103 -- 2 pcs CLEVIS PL4112103 --1 pc. STRAPER PL4112102 -- 2 pcs STRAPER PL4112102 -- 1 pc. FUEL TUBE D2.5xD6x5mm -- 4 pcs SERVO MOUNTING PANEL PL5310030(R) -- 1 pc. HORN PL4113103 -- 2 pcs HORN PL4113103 -- 1 pc.

  • Page 4: Aileron Servo

    Aileron Servo PA1.7x8mm Screw PA1.7x8mm Fibre Tape Bottom Plywood 50x50x2 mm Aileron Servo Lead Fibre Tape 17x540 mm Bottom View Bottom View Straper Fuel Tube d2.5xD6x5mm Clevis Pushrod Ø1.8x55mm Fuel Tube d2.5xD6x5mm Horn Bottom View TWM PL8210010 CLEVIS WRENCH GM055PO26641106...

  • Page 5: Stabilizer & Elevator

    Stabilizer & Elevator Joining surfaces should be clean and dry. Slightly roughen surfaces with sandpaper for best results. Bottom Fibre Tape Fibre Tape 17x380 mm Bottom View Vertical Fin & Rudder Fibre Tape 17x250 mm Fibre Tape Plywood 50x50x2 mm Joining surfaces should be clean and dry.

  • Page 6: Main Landing Gear

    Main Landing Gear PA2.6x10mm Screw 3.1mm Collar Plywood Fuselage 46x33x3.4mm Landing Gear Landing Gear Bottom View Bottom View Wheel Ø62mm Main Landing Gear Cover 3.1mm Collar PA2.6x10mm M3x3mm Set Screw Bottom View Bottom View Elevator Pushrod Straper PA1.7x8mm Fuel Tube d2.5xD6x5mm PA1.7x8 mm Screw...

  • Page 7: Rudder Pushrod

    Rudder Pushrod Fuel Tube Straper PA1.7x8 mm Screw d2.5xD6x5mm PA1.7x8mm TWM PL8210010 Pushrod CLEVIS WRENCH Ø1.8x150mm Clevis Horn Fuel Tube d2.5xD6x5mm Outrunner Motor / Spinner Make sure rotating motor casing is not in contact with wirings or anything. M3x10mm Socket Head Screw Outrunner Motor 37/ 48 Deluxe Optional Parts KM0374810...

  • Page 8: Radio Equipment

    Main Wing Hook Wing Tube Ø8x500mm Aileron Servo Lead Rubber Band Completed Radio Equipment Install and arrange the equipment as shown in the picture. Outrunner Motor Battery Receiver Front Sponge Battery Tie Sponge Battery Cover Brushless Double Sided Tape Fuselage Bottom Completed GM055PO26641106...

  • Page 9: Control Throws

    Decals FL04 FL03 FL06 FL01 FL02 FL05 FL07 WR06 WL06 WR02 WL02 WR01 WL01 WR03 WL03 WR04 WL04 WR05 WL05 WR07 WL07 SL02 SR02 SL01 SR01 SR03 SL03 SL04 SR04 Control Throws Adjust the control throws as shown in the diagram. These throws are good for Elevator general flying.

  • Page 10: Important Safety Precautions

    # Pre-flight adjustment must be done before flying, it is very dangerous to fly a badly pre-adjusted aircraft. HandyKing EP(40) is specially designed to be powered by KM0374810 Outrunner Motor. # Make sure the air field is spacious, never fly the plane too close to people and never get too close to a running propeller.
  • Page 11 Pl8210010 • • Large Clevis Small Clevis Outrunner 37 / 48 Deluxe KM0374810 40A Brushless ESC Code No. Size KC2040A02 55 x 28 x12mm 1 pc -Kv (rpm / V): 770 -Operating Power: 450 W -Operating Voltage: 8.5 - 18V -Operating Current: 30A -Peak Current: 38A (max.15 sec.) -Internal Resistance: 34 m ohms...
  • Page 12 www.thewingsmaker.com THE WINGS MAKER GM055PO26641106...
