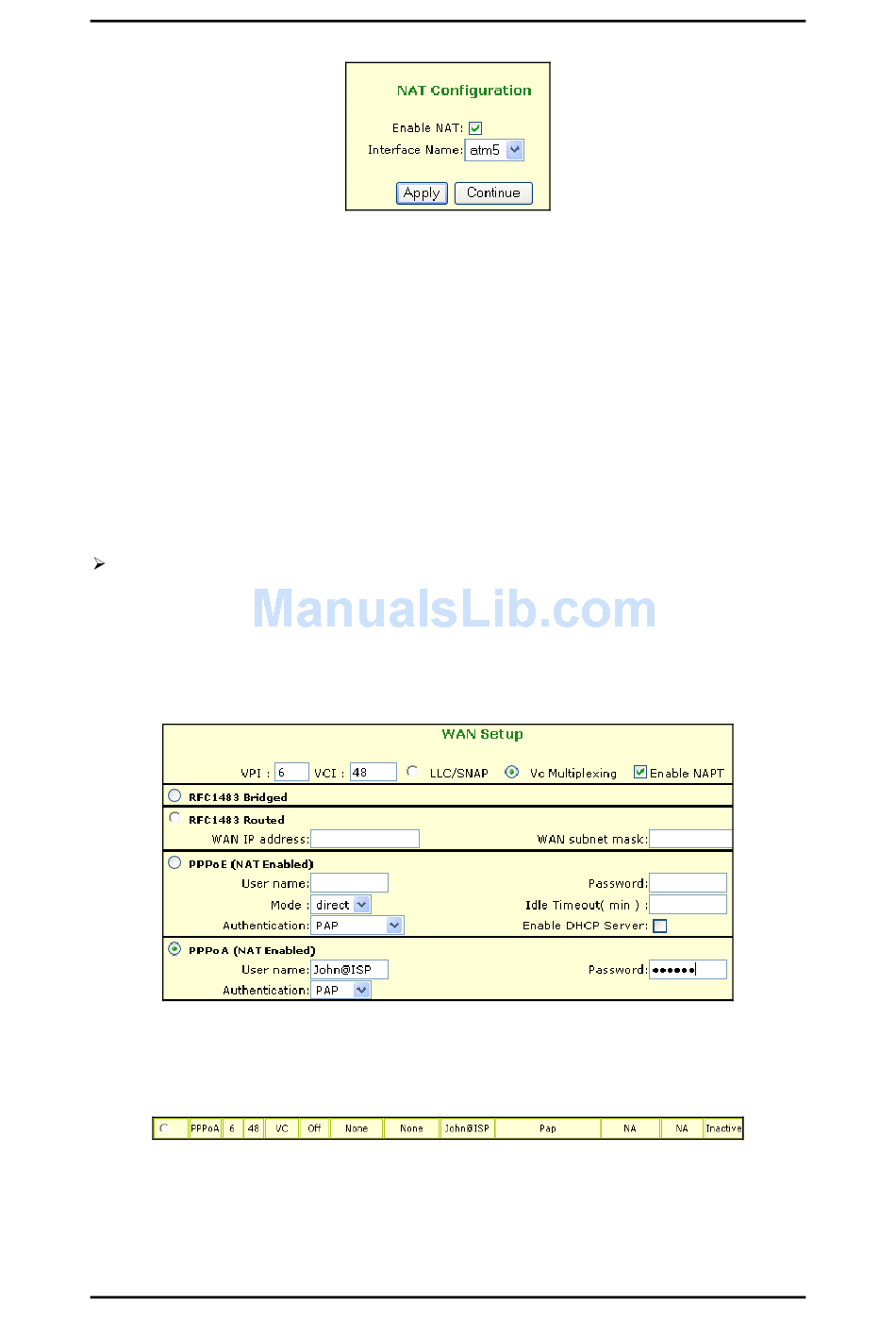

13. Select the interface (atm5). Check the Enable NAT checkbox. Click Apply and
then click Continue.
14. Check that the interface you have defined appears in the WAN Setup table with
NAPT in the On state.
6.5.

Defining PPP Over ATM

You can define PPP over ATM in two ways. The basic workflow is simple, but most
of the parameters are defined by default. The advanced workflow enables detailed
definition of most parameters.

6.5.1. Basic Workflow

To define PPP over ATM using the basic method:
1. From the Basic operations menu select WAN Setup. The WAN Setup dialog box
appears.
2. Click the PPPoA radio button. Define VPI, VCI and encapsulation type. Note that
Enable NAPT is checked by default. Define user name (<name>@<domain>) and
password, as received from your ISP and select the PAP authentication protocol.
3. Click Add. Check that a line is added to the table at the bottom of the dialog box.
Note that although NAPT is enabled, it appears in the table in the Off state. The
state will be changed to On when the router is actually connected to the ISP (after
dialing).
