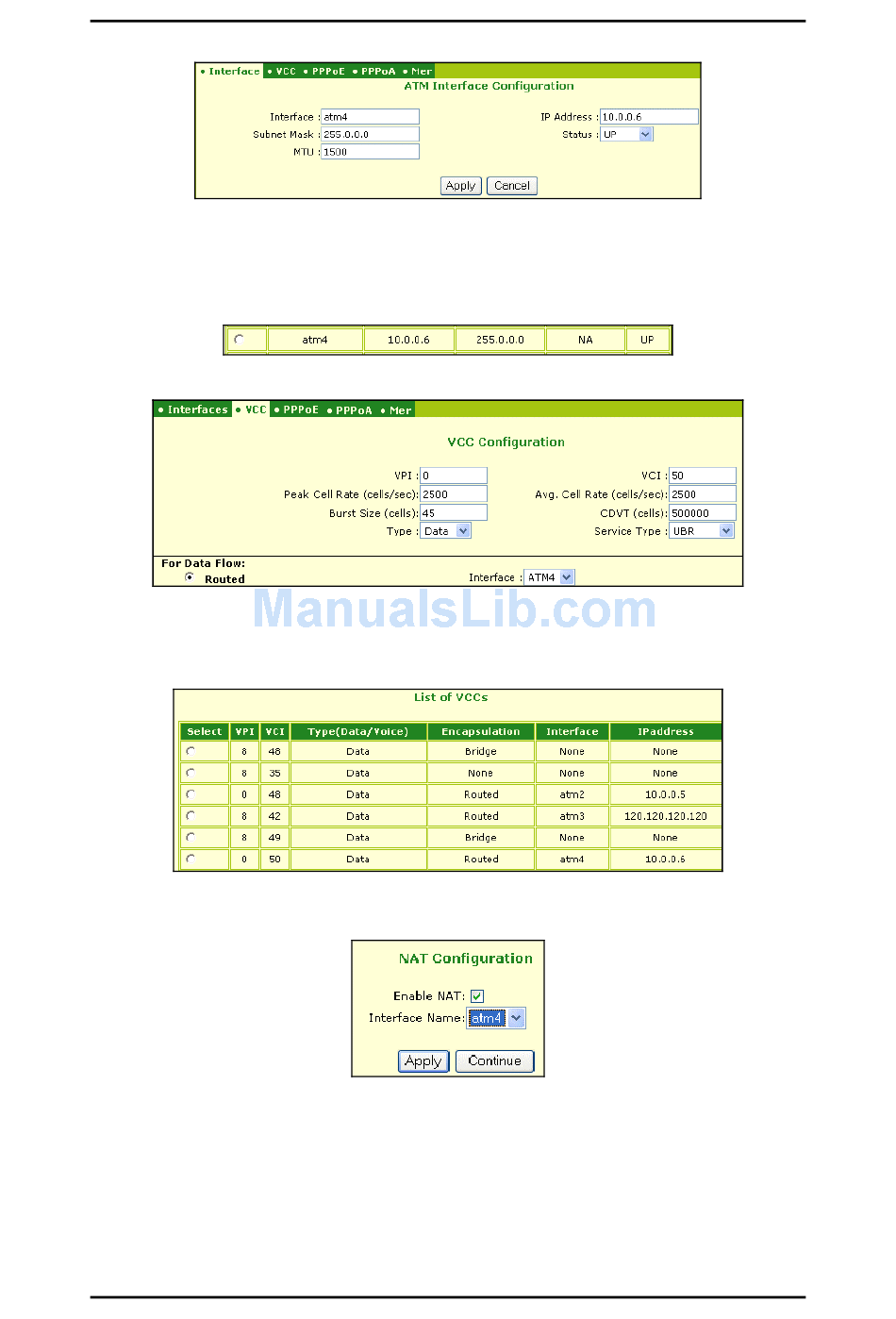

3. Define the selected interface, the IP address and subnet mask in the WAN, and the
MTU value. Set the status to UP. Click Apply.
4. Check that the newly defined interface appears in the table in the Interface tab and
that its status is UP.
5. Select the VCC tab and click Add. The VCC Configure dialog box appears.
6. Click the Routed radio button. Select the interface you want to define (atm4) from
the list. Define VPI, VCI and all other parameters.
7. Click Apply. A new line is added to the VCC table.
8. To define NAT, return to the Interface tab and click NAT. The NAT
Configuration dialog box appears.
9. Check Enable NAT and select the Interface you want to define (atm4). Click
Apply and then click Continue.
10. In the VCC tab, click Show VCC Quality. A list of VCCs appears. Check that it
contains the values you have defined.
