B-FOCuS 270/285/400 PR Configuration Manual

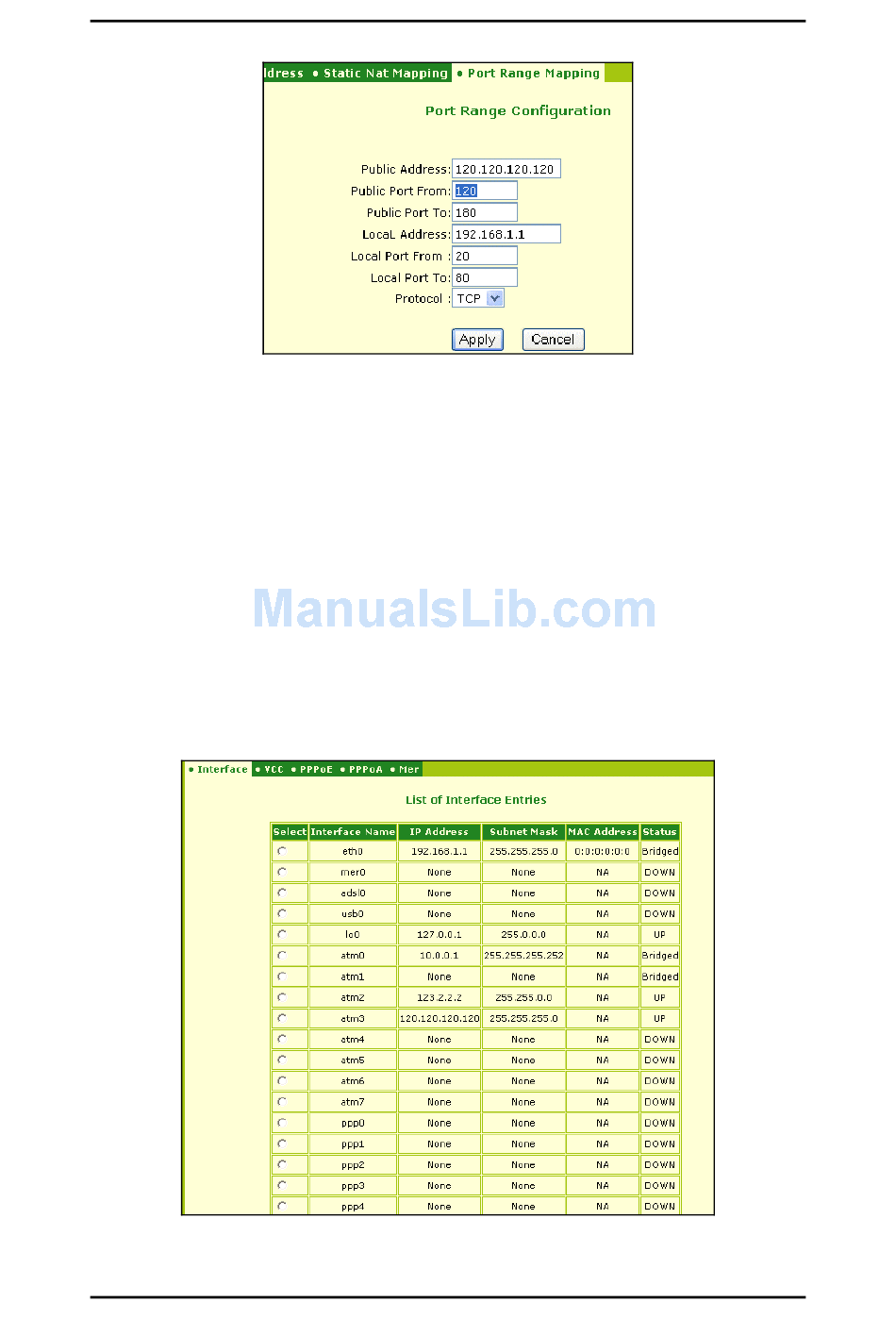

2. Define the public address, the public port range, the local address, the local port
range and the layer 4 protocol (UDP or TCP).
3. Click Apply.
Note: In addition to these definitions, open the applicable port in the Firewall (see IP Level
Filtering ).
5.5.

Configure

The Configure menu enables detailed definition of the communication parameters in
various sessions. You can see a summary table of all the interface definitions as well
as the parameters of each interface separately.

5.5.1. Defining Interface Parameters

The List of Interface Entries table in the Interface tab summarizes the parameters of
all the definable interfaces.
• eth0 – is the interface towards the LAN.
ECI Telecom Ltd. Proprietary 27
