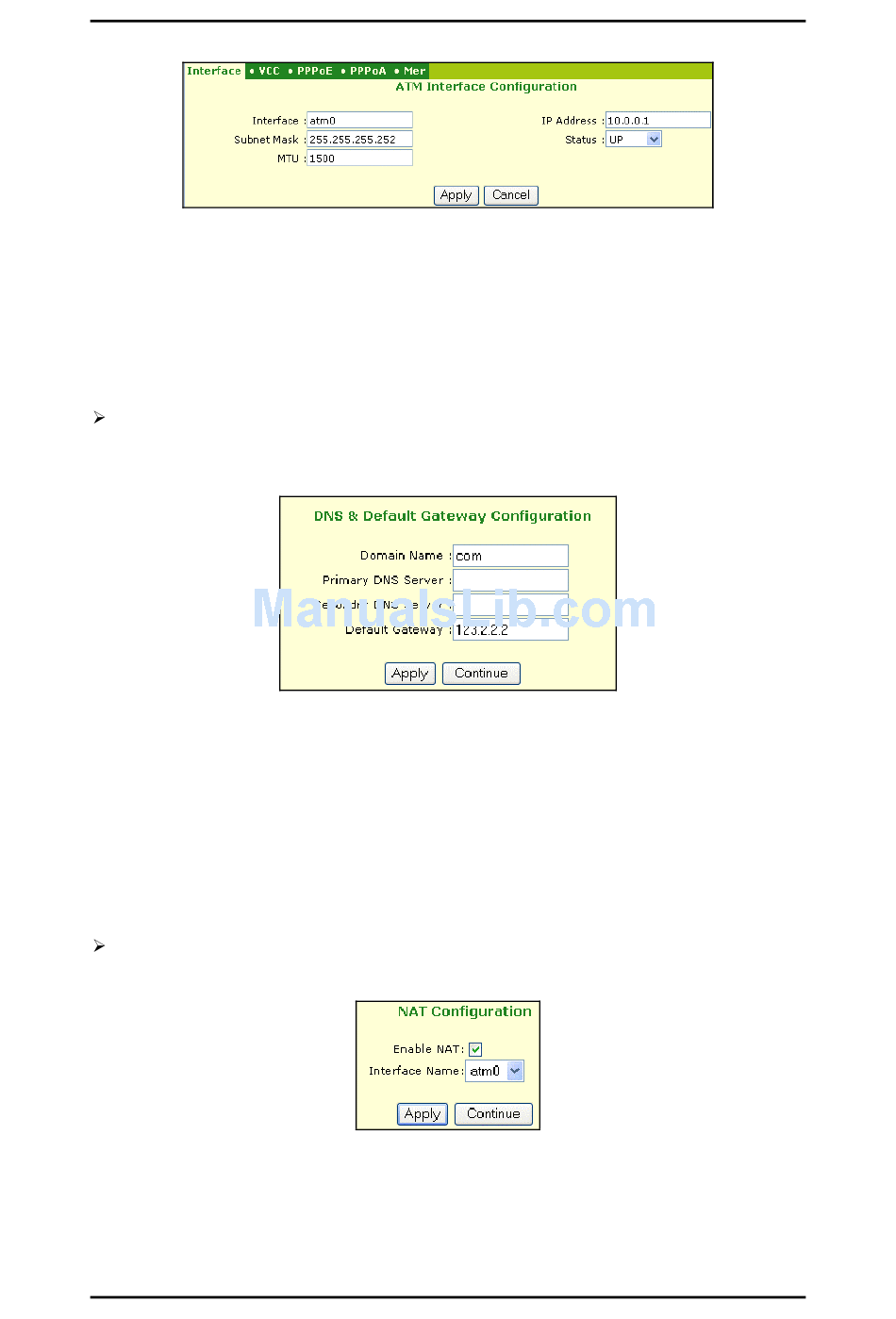

Eci Telecom B-FOCuS 270 Configuration Manual page 29

B-FOCuS 270/285/400 PR
2. Define:
• IP address and subnet mask.
• Maximal size of a package (MTU).
3. To activate the interface set the status to UP.
4. Click Apply.
To define DNS and Default Gateway to all interfaces:
1. Select the radio button on the required line and click DNS & Default G/W. The
DNS & Default Gateway Configuration dialog box appears.
2. Define:
• Domain name in the WAN.
• Primary and secondary DNS in the WAN.
• IP address of the default gateway for accessing the WAN.
3. Click Apply.
Note: As a default, the router is defined as the relay of the ISP parameters towards the
LAN.
To define a NAT for the ATM and PPP Interfaces:
1. Select NAT. The NAT Configuration dialog box appears,
2. Select an interface from the list and check the Enable NAT checkbox.
3. Click Apply.
Note: NAT can be enabled only on active interfaces.
