Save & Reboot - Eci Telecom B-FOCuS 270 Configuration Manual

B-FOCuS 270/285/400 PR Configuration Manual
After a new router is installed, the RIP protocol is set by default to Off. To activate it,
the status must be changed to On. In addition, you can define the RIP version to be
used.

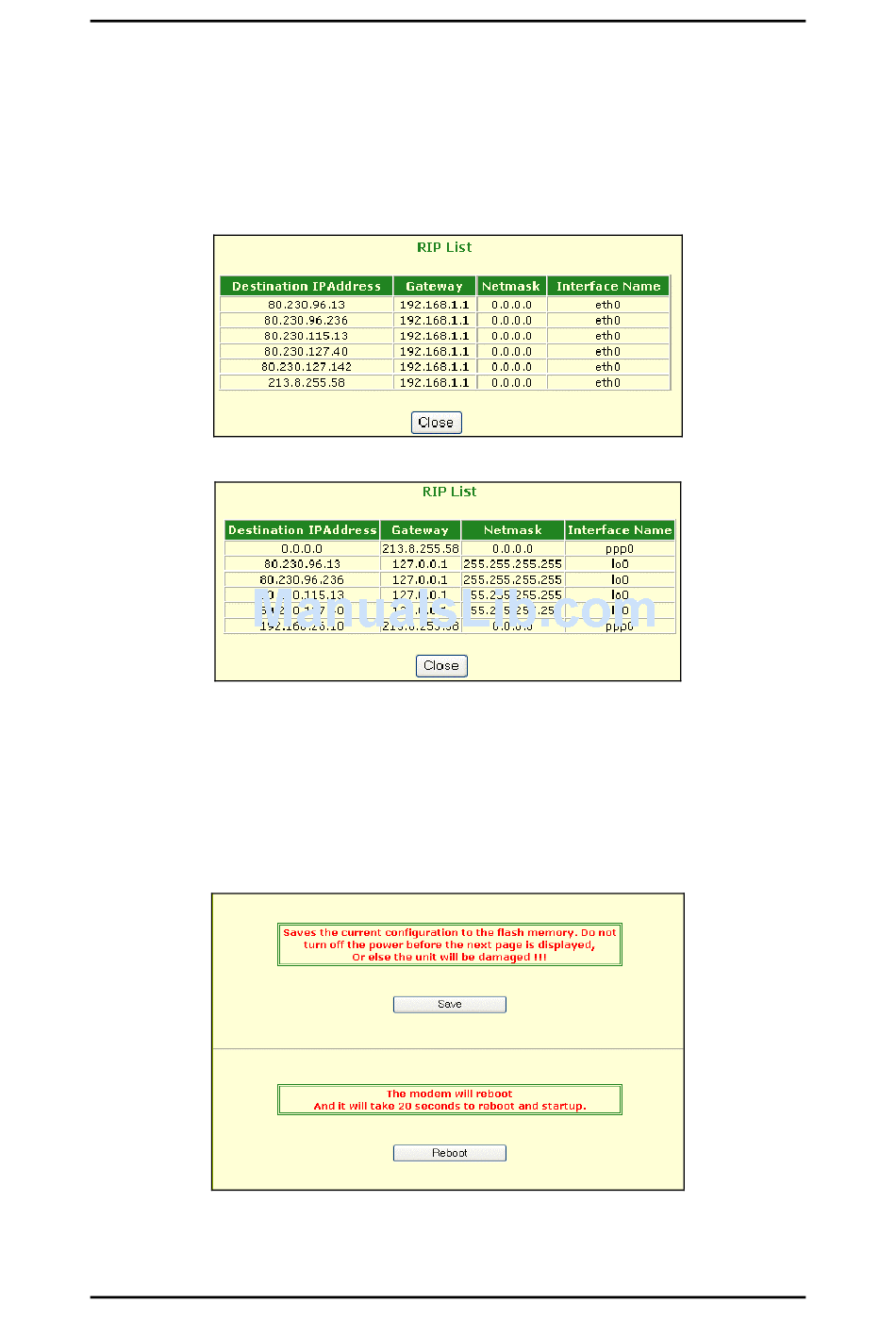

For additional information concerning the RIP protocol, click RIP Information. The
RIP List window appears.
This list appears for the B-FOCuS 270/285PR.
This list appears for the B-FOCuS 400PR.
4.5. Save & Reboot
When a new configuration has been defined, it must be burned into the router's
internal flash memory. Then the router must be restarted. The new configuration
becomes effective only after it has been saved and the router has been restarted.
When selecting Save & Reboot from the Basic menu, the following dialog box
appears.
Click Save. When an acknowledgement is received, click Reboot.
ECI Telecom Ltd. Proprietary 15
