Access Control List (Acl) - Eci Telecom B-FOCuS 270 Configuration Manual

B-FOCuS 270/285/400 PR
2. Click Delete.

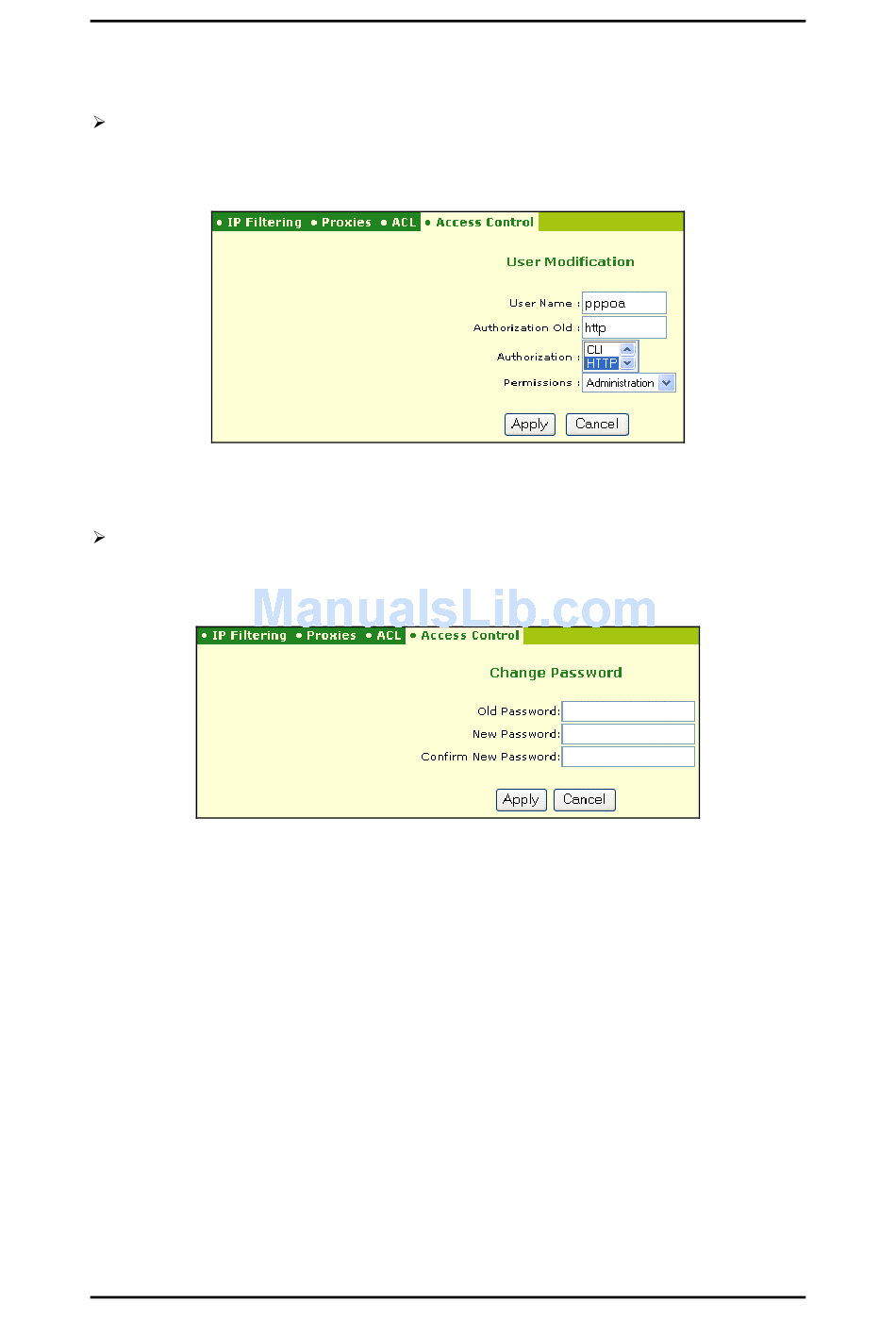

To modify the parameters of an existing user:
1. Select the required user using the radio button.
2. Click Modify. The User Modification dialog box appears.
3. Modify the required parameters (user name, password, access services and
permissions) and click Apply.
To change the user's password:
1. Select the required user using the radio button.
2. Click Change Password. The Change Password dialog box appears.
3. Enter the old password and the new password (twice). The length of the password
should be at least 16 characters.
4. Click Apply.

5.3.2. Access Control List (ACL)

This tab enables control over the traffic to and from the LAN. The control is
performed by a proxy. The proxy must be defined both in the computer (using the
browser's software) and in the router (see Proxy).
The proxy serves as a gatekeeper to the LAN. When a user wants to access the
Internet via the router, it should first pass through the proxy, and then the ACL is
applied.
Note: The router's restrictions are only implemented for HTTP proxy.
