B-FOCuS 270/285/400 PR

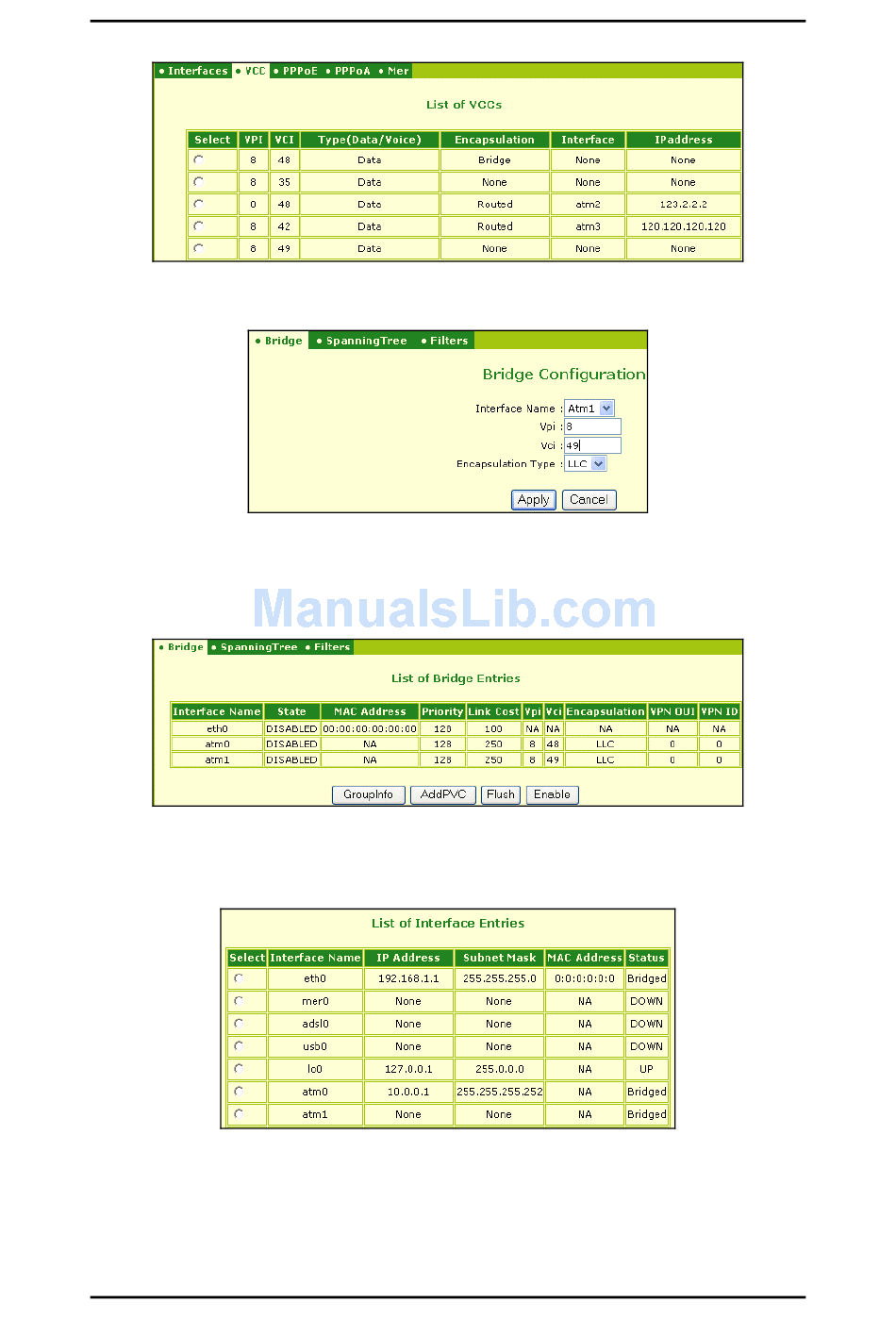

9. To define the encapsulation, select Bridging from the Advanced menu and click
Add PVC. The Bridge Configuration dialog box appears.
10. Select one of the atm interfaces (in this example, atm1). Enter the VCI and VPI
values and select the type of encapsulation.
11. Click Apply. The values you have defined appear in the atm line (in this example,
atm1).
12. To activate the bridge, click Enable.
13. From the Advanced menu select Configure. Check that the status of all the group
members (eth0, atm0, atm1) is Bridged.
14. From the Advanced menu select VCC. Check that all the values you have defined
are displayed.
