Status Indicators

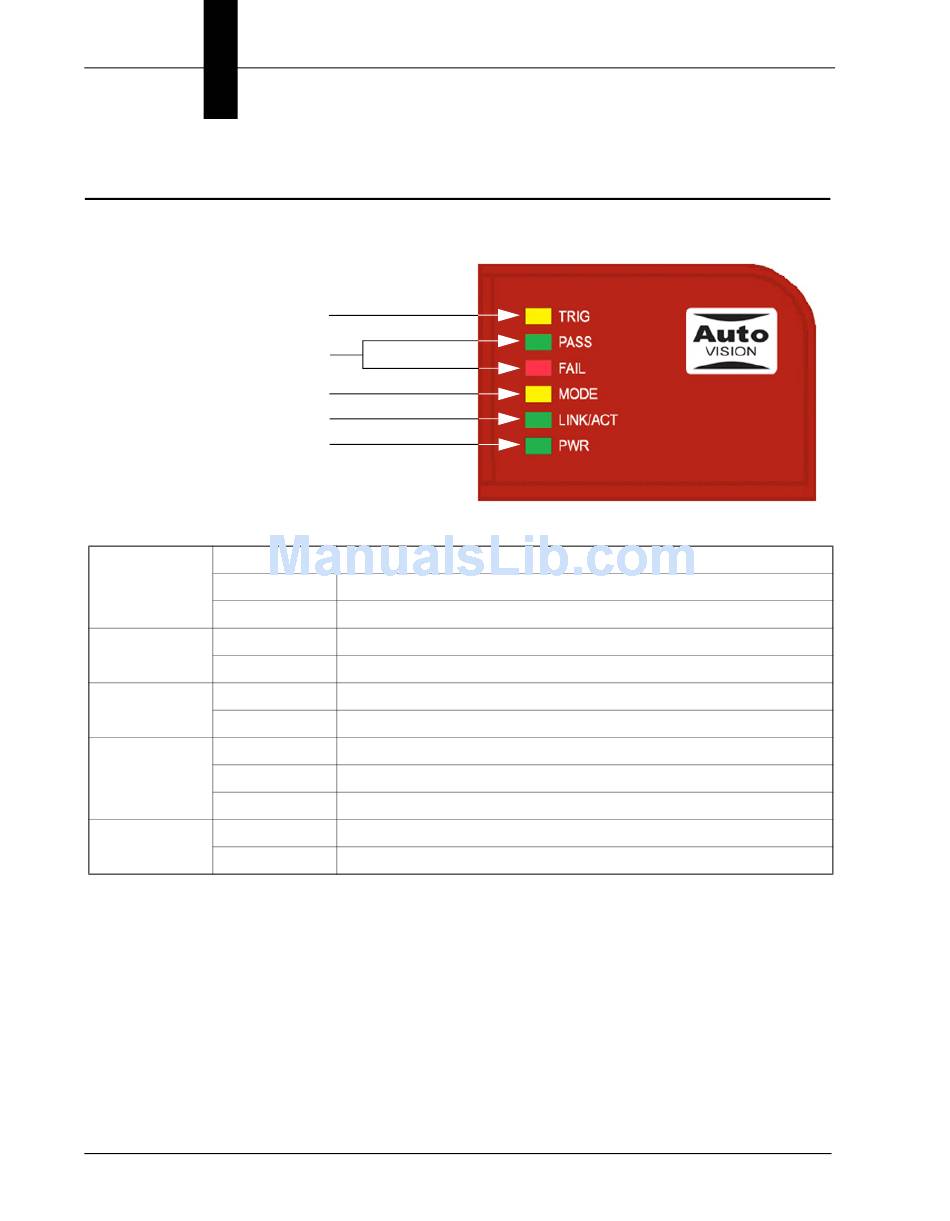

The back of the Vision MINI Xi Smart Camera has multiple LEDs that
indicate different trigger, inspection, camera, communication, and power states.
Trigger Status
Inspection Status
Camera Status
Communication Status
Power Status
On Steady
TRIG Off
On Flashing
On
PASS/FAIL
Off
On Steady
MODE
Off
On Steady
LINK/ACT Off
On Flashing
On
PWR
Off
Additional User Feedback
• Green Flash – A green flash from the front of the unit indicates a Good Read.
• Blue Targeting Pattern – The blue targeting pattern from the front of the
unit allows the user to center an object in the camera's field of view.
• Beeper – The beeper is an audible verification that either a Pass or a
Fail has occurred.
2-10
Continuous Trigger
Waiting for Trigger Event
Trigger Event
Active State
Inactive State
Unit Ready
Unit Not Ready
Link Established
No Link/Activity
Link Established and Activity on Link
Power On
No Power Applied to Unit
