Summary of Contents for Zavio D7210

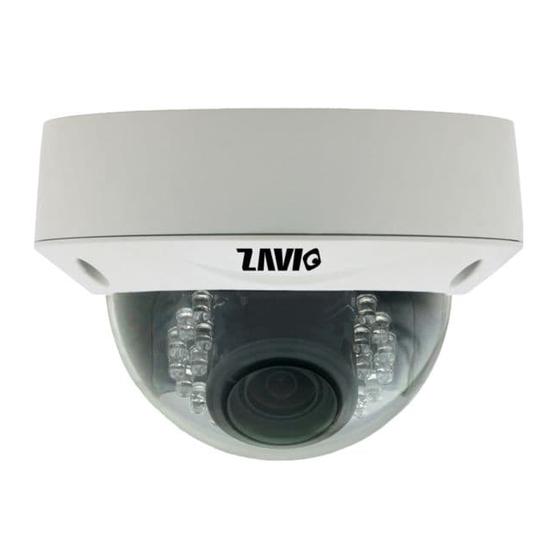

- Page 1 ZAVIO Outdoor IR Mini Dome Quick Installation Guide 0 ...
-
Page 2: Quick Installation Guide
Power mode. See P.4 Installation of hardware and connection of all cables. See P.4 Windows: Go to Zavio website and download Camera Installation Tool. See P.9 Access the IP Camera using Camera Installation Tool. See P.10 MAC OS: using Safari Browser. See P.13 Lighting environment. - Page 3 Physical overview Dome bubble Top cover Built-in Microphone Ethernet Socket External I/O connector DC 12V/1A Routing hole Light Sensor ...
- Page 4 I/O Terminal Block Circuit I/O Terminal Block Pin Definition Definition Description Max. V/A Black Ground 12V DC Brown + 12VDC 1.2 W Connect the wires of the audio input device to GND Audio In (Pin 1) and AUDIO.IN (Pin 3). Connect the wires of the audio output device to Orange Audio Out...
- Page 5 Power Mode Power Requirement PoE (IEEE802.3af) with Class 3 PoE Mode Power Consumption 4.19 W Power Requirement 12V/1A Adaptor Adaptor Mode Power Consumption 4.24 W Install the hardware and connect all cables A. Hardware installation 1) Loosen the tamper-proof screws using supplied L-type hex key wrench and remove the dome cover.
- Page 6 5 ...
- Page 7 C. Wall mounting with L-type bracket (optional) 1) Drill two holes and hammer the supplied screw anchors on the desired installation location. 2) Align L-type bracket to the two plastic anchors on the wall/ceiling, insert the supplied screws to the corresponding hole and secure them. 3) Secure the plastic plate to the L-type bracket with screws (M4x10 * 2pcs) 4) Secure the camera to the plastic plate with screws(M2.5x6 * 2pcs) ...
- Page 8 D. Outdoor wall mount kit with L-type bracket (optional) 1) Drill two holes and hammer the supplied screw anchors on the desired installation location. 2) Align L-type bracket to the two plastic anchors on the wall/ceiling, insert the supplied screws to the corresponding hole and secure them. 3) Assemble the silicone rubber and outdoor kit together.
- Page 9 E. Connect all cables E1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Use a standard RJ-45 network cable and connect the IP Camera to a hub/switch/router. E2.
- Page 10 Fix the tamper-proof screws using supplied special hex. Be careful do not scratch the cover glass. Clean the dome bubble to remove the dust and finger print. Windows: Go to Zavio Website and download Camera Installation Tool Please go http://www.zavio.com/softwaredownloads.php download “Camera...
- Page 11 Access the IP Camera using Camera Installation Tool 1. Please check two settings before using Camera Installation Tool. Browser’s Internet Properties Security Default Level → → Browser’s Internet Properties Privacy Uncheck Pop-up Blocker → → 10 ...
- Page 12 2. Click the Camera Installation Tool Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the desired IP cameras from the list and click Link to IE. ...
- Page 13 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: AxvideoView.cab from ‘Zavio Inc’. ...
- Page 14 7. Live video will display in the center of your web browser. MAC OS using Safari Browser 1. Select Safari Icon 2. Click Bonjour function and select the camera you wish to access. ...
- Page 15 3. Enter name and password to login to the IP camera (Default is admin / admin) 4. Live video will display in the center of your web browser. ...
- Page 16 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
- Page 17 Application of IP Camera 16 ...
