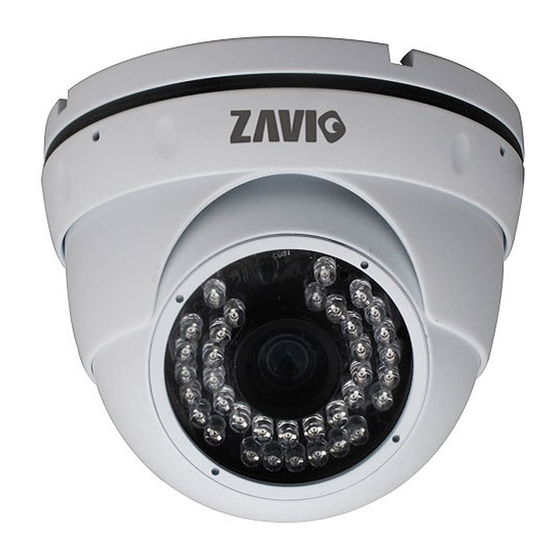

- Page 1 Eyeball Dome IP Camera Quick Installation Guide...
- Page 2 Physical overview. See P.2 Installation of hardware and connection of all cables. See P.2 Windows: Go to Zavio website and download Camera Installation Tool. See P.4 Access the IP Camera using Camera Installation Tool. See P.5 MAC OS: using Safari Browser. See P.8 Lighting environment.
-
Page 3: Physical Overview
Physical Overview IR LED Light sensor Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 15 seconds to the settings back to factory default. Install the hardware and connect all cables A. - Page 4 B. Wall mounting and Ceiling mounting a. Attach the alignment sticker to the wall/ceiling. Drill four holes into the wall/ceiling. Hammer the supplied plastic anchors into the screw holes. b. Place the camera base on the wall/ceiling, pass the cables of the cameras through the base, and screw the base with the supplied four screws.
- Page 5 1. Make sure all components are assembled as shown on the below graph. 2. Check that the Ethernet Port and the Waterproof main body are tightly fasten. Windows: Go to Zavio Website and download Camera Installation Tool download “Camera Please go http://www.zavio.com/softwaredownloads.php...
- Page 6 Access the IP Camera using Camera Installation Tool 1. Please check two settings before using Camera Installation Tool. a. Browser’s Internet Properties → Security→ Default Level b. Browser’s Internet Properties → Privacy → Uncheck Pop-up Blocker...
- Page 7 2. Click the Camera Installation Tool Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the desired IP cameras from the list and click Link to IE. 3. Enter Username and Password to login to the IP Camera. (Default is admin / admin)
- Page 8 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
- Page 9 7. Live video will display in the center of your web browser. MAC OS using Safari Browser 1. Select Safari Icon...
- Page 10 2. Click Bonjour function and select the camera you wish to access. 3. Enter name and password to login to the IP camera (Default is admin / admin)
- Page 11 4. Live video will display in the center of your web browser. Lighting environment setting Default setting for lighting environment is Auto. You may change exposure frequency to 50 or 60 Hz at Setting > Live View > Camera Setting > Image Setting.
- Page 12 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
- Page 13 Application of IP Camera...
