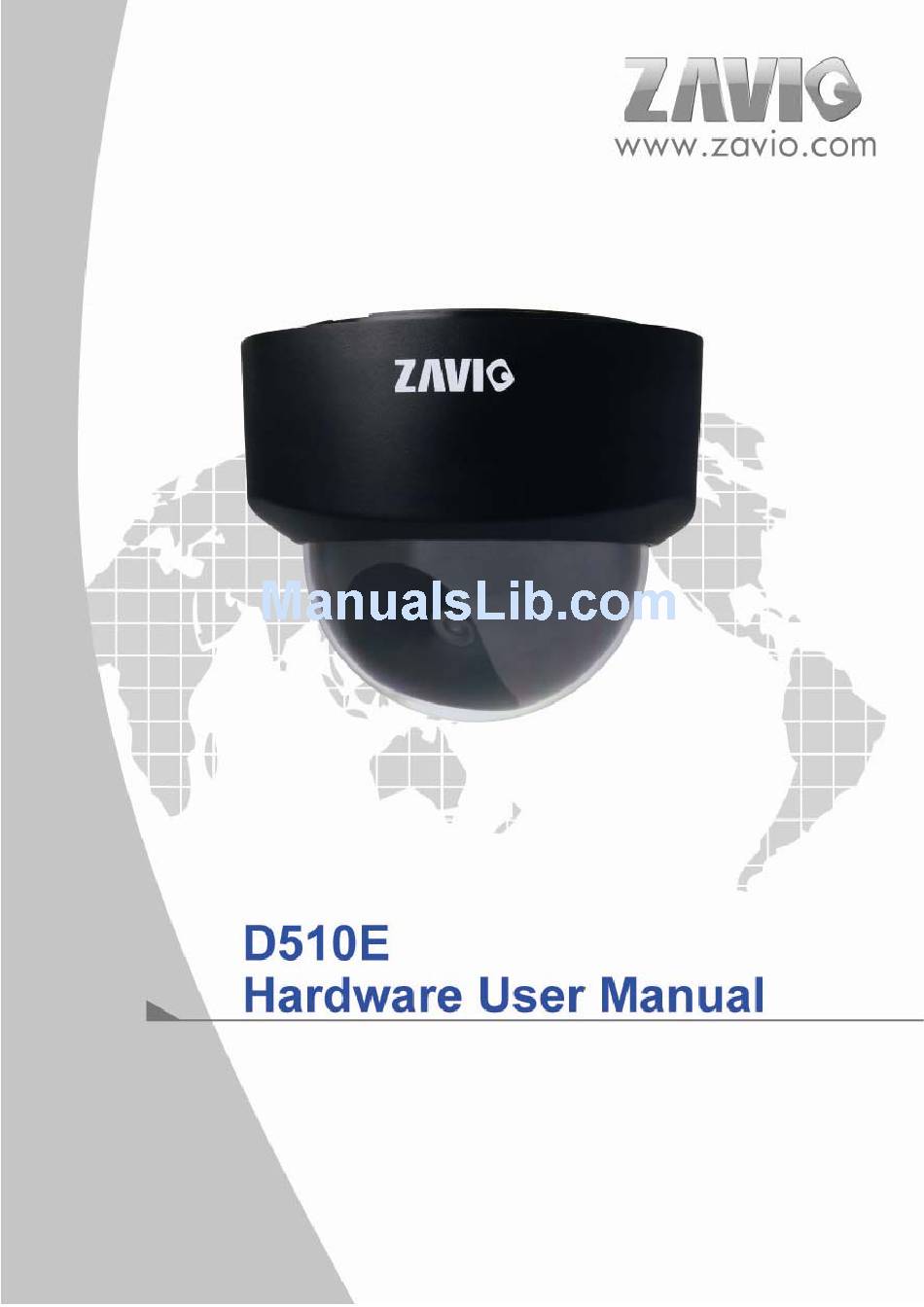

- Page 1 D510E User Manual...
-
Page 2: Table Of Contents
D510E User Manual D510E CMOS Dome IP Camera Hardware User Manual -Contents- CHAPTER 1. SAFETY INSTRUCTION ..................2 CHAPTER 2. INTRODUCTION .....................4 CHAPTER 3. PACKAGE CONTENTS ..................5 CHAPTER 4. PHYSICAL DESCRIPTION..................6 5.1 P E) C ...................... 8 OWER OVER THERNET ONNECTION 5.2 W... -
Page 3: Chapter 1. Safety Instruction
D510E User Manual Hardware User Manual Chapter 1. Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following. - Page 4 D510E User Manual In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer. In case of abnormal operation If the unit emits smoke or an unusual smell, If water or other foreign objects enter the cabinet, or ...
-
Page 5: Chapter 2. Introduction

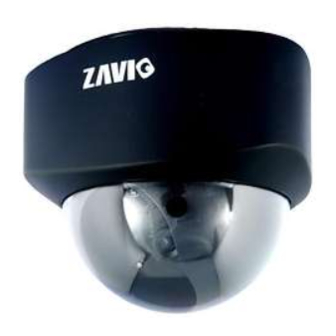

D510E User Manual Chapter 2. Introduction D510E is a high performance IP Camera with CMOS sensor and adds Power over Ethernet (PoE) and digital input / output for external alarm or sensor. It also offers incredibly stable and powerful firmware. -
Page 6: Chapter 3. Package Contents
D510E User Manual Chapter 3. Package Contents Camera – D510E Dome Network Camera Quick Installation Guide - To provide brief product information and quick installation and wireless setting Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and... -
Page 7: Chapter 4. Physical Description
D510E User Manual Chapter 4. Physical Description Overview Power Connector - For connection of 12V DC input. Audio Out (Green Line) - To support audio out with earphones or speakers for two way audio Audio In (Red Line) - To support audio in with Microphone for two way audio ... - Page 8 D510E User Manual DI / DO Terminal connector diagram Please refer the following illustration below for connection method. NO COM D- D+ Ground Switch Alarm out device Ground Max. 30W...
-
Page 9: Power Over Ethernet (Poe) Connection
D510E User Manual Chapter 5. Basic Connection D510E offers Power over Ethernet (PoE) connection. However, you still can use D510E with PoE or without PoE connection. You can follow the procedure below to connect the IP Camera for both applications. -
Page 10: Chapter 6. Application
D510E User Manual Chapter 6. Application...
