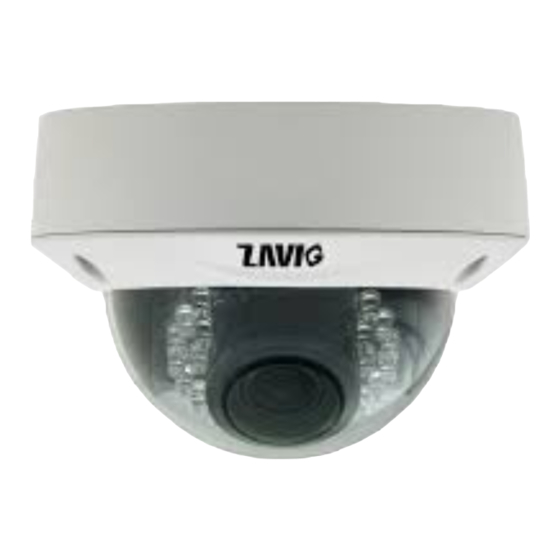

Please follow the installation steps below to set up your D7110 Indoor IR Dome Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.1
Install the hardware and connect all cables. See P.3
Use the software CD to install Intelligent IP Installer.
Microsoft OS:
For more information, please check the User Manual available in the Software CD or you can download the latest
software from
http://www.zavio.com

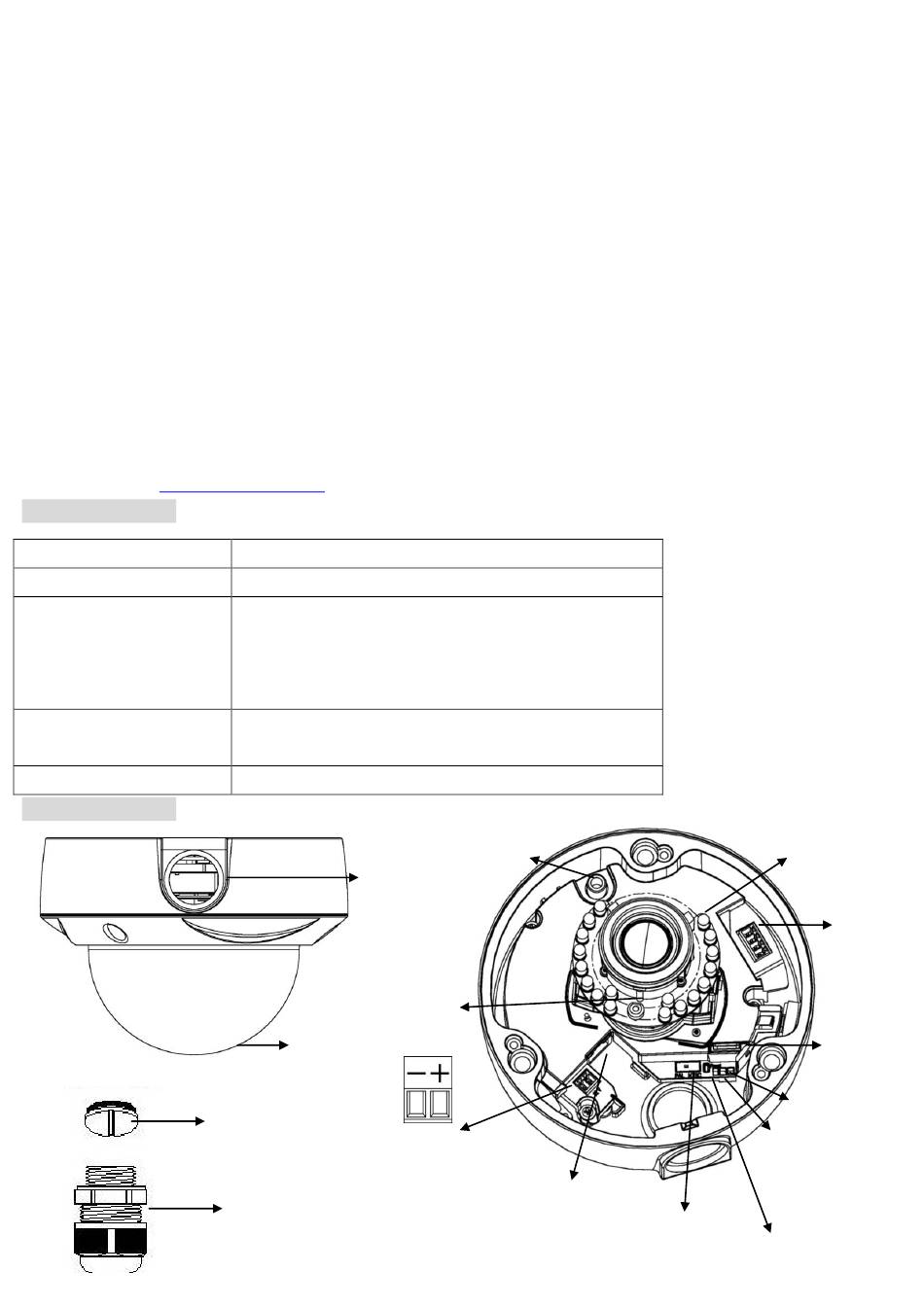

Package Contents
Camera
Quick Installation Guide
Software CD
Mounting Bracket
Adaptor
Physical overview
Zavio D7110 Quick Installation Guide
D7110 Outdoor IR IP Camera
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Three plastic anchors and screws, Alignment sticker
4pin, 2pin I/O terminal block
12V DC, max 9W
Conduit hole
Light sensor
Dome bubble
Plug
12V DC
Cable gland
See P.6
RCA
Ethernet Socket
PAL/NTSC
1
IR LEDs
DI/DO
DO DI GND 12V
Card slot
Power Indicator
SD Indicator
Reset button
Advertisement
Related Manuals for Zavio D7110
Summary of Contents for Zavio D7110
-
Page 1: Table Of Contents
Zavio D7110 Quick Installation Guide Please follow the installation steps below to set up your D7110 Indoor IR Dome Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 Install the hardware and connect all cables. See P.3 Use the software CD to install Intelligent IP Installer. - Page 2 Cable gland Claw Thread-lock sealing nut Note: The size of Cable gland is M25*1.5 LED Indictor: Color Indication Steady green for Network link. Green Network Flash orange while Network activity. Orange Steady red for booting up process; Steady red 30 Seconds when WPS configure failed. Blue Steady blue for booting up competition.
- Page 3 Install the hardware and make all cable connection a. Install the hardware 1. Connect the adaptor to the supplied 2pin I/O terminal block which shows positive and negative polarity on it. Please make sure the marked red wire should connect with the positive polarity or device won’t work. 2.
- Page 4 c. Connect all cables c1. Power over Ethernet (PoE) 1. Using a standard RJ-45 network cable, connect the IP Camera to a PoE-enabled Hub / Switch / Router c2. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2.
- Page 5 e. To adjust zoom puller and focus puller d1. Loosen the zoom and focus pullers anti-clockwise to adjust the desire zoom range and focus. d2. Lock the zoom and focus pullers by rotating the screw clockwise after get satisfied focus. f.
-
Page 6: Access The Ip Camera Using Intelligent Ip Installer. See
Microsoft OS: Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow those steps below to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1. - Page 7 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: „AxvideoView.cab from „Zavio Inc‟. 5. Click the information bar, and select Install ActiveX control.
-
Page 8: Change The Web Interface Into Your Preferred Language. See
Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface. Go to “Setting → Basic → System → Language”. 1. Insert Software CD into your CD-ROM. 2. Browse and select the preferred language from language pack in the Software CD and then click OK. 3. -
Page 9: Day Night Function Setting. See
Select Safari function → Enter IP address in the web link → enter username and password (default value admin/admin) → The Zavio user interface and Live Image will show up in the middle of the screen. 2. Mobile phone viewing a. -
Page 10: Access To Internet Via Static Ip, Dynamic Ip Or Both. See
b. 2.5G Mobile Phone Viewing b1. WAP viewing For 2.5G WAP mobile phone viewing, type “ http://<IP>/mobile.wml ” into your 2.5G web browser. b1. Browser viewing For 2.5G mobile phone browser viewing, type “http:// <IP>/mobile.htm ” into your 2.5G web browser. Access to Internet via Static IP, Dynamic IP or both a. - Page 11 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.
-
Page 12: Application Of Ip Camera. See
Application of IP Camera...
