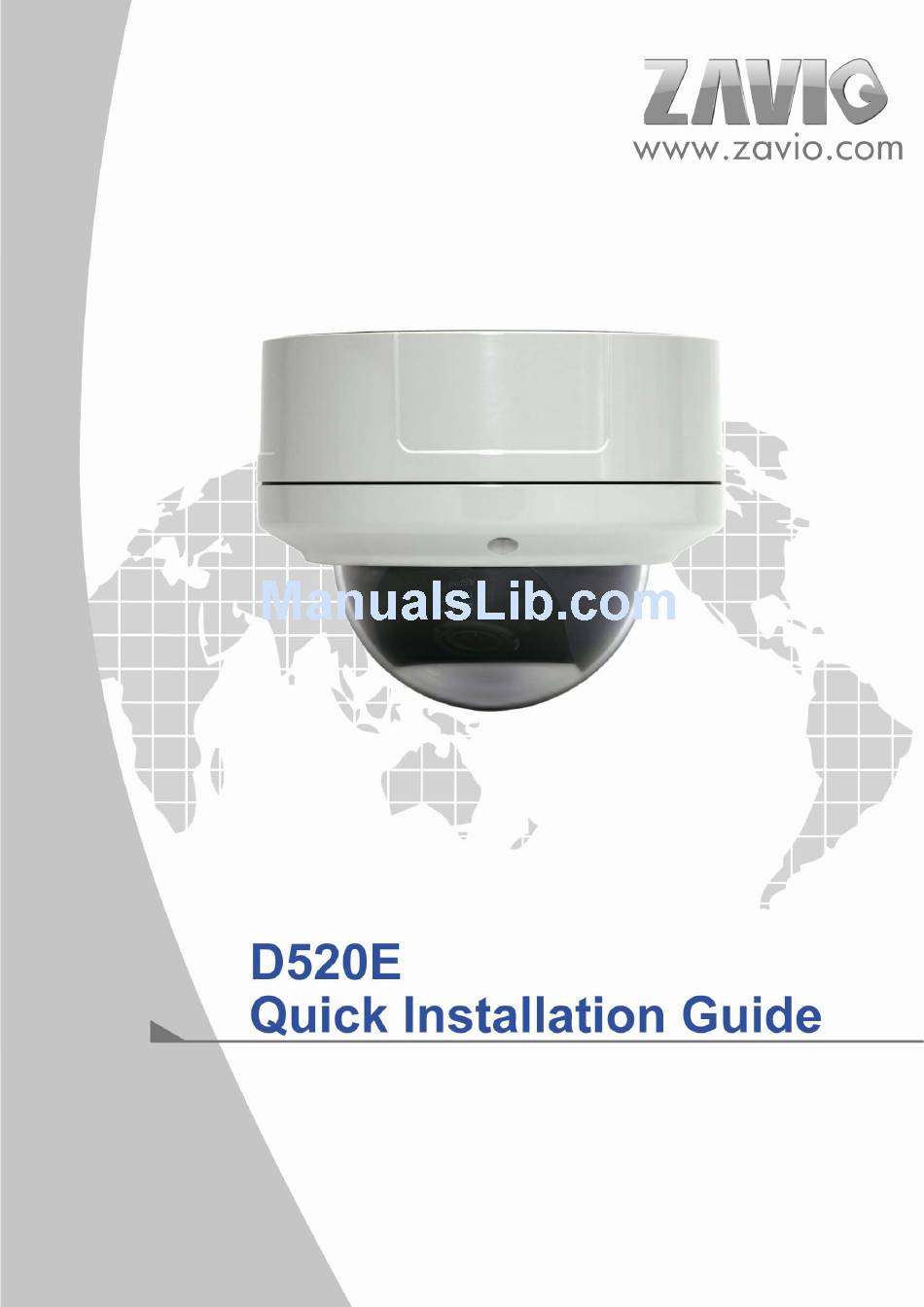

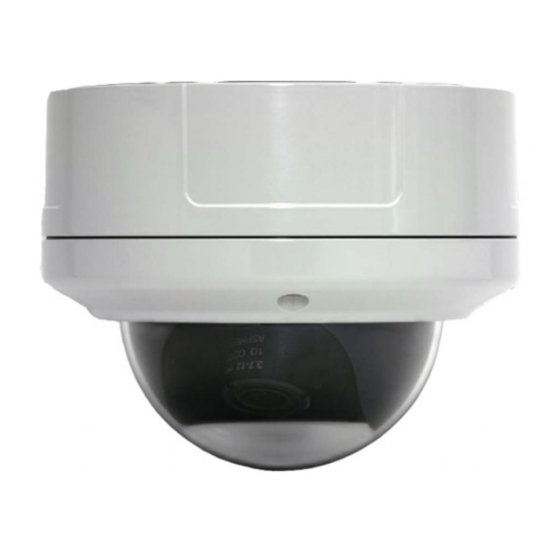

- Page 2 Zavio D520E Quick Installation Guide Please follow the installation steps below to set up your D520E IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.2 Install the hardware and connect all cables. See P.3 Microsoft OS: Use the software CD to install Intelligent IP Installer.
- Page 3 Physical overview Dome cover Reset button Rugged dome Wire clip Conduit hole plug Cable gland Thread-lock sealing nut Cable gland Claw Note: The size of Cable gland is M20*1.5...
- Page 4 Install the hardware and connect all cables a. Installer the hardware 1. Loosen the tamper-proof screws using supplied special hex wrench and remove the dome cover from the rugged dome. Be careful do not scratch the cover glass. 2. Disassemble the cable gland. 3.
- Page 5 b.Wall mounting and Ceiling mounting Plastic anchor nuts 1. Paste the drill template on the Wall or Ceiling Ceiling which rugged dome desired. 2. Drill four holes in the wall or ceiling and insert plastic anchor nuts into them. 3. Insert the supplied screws into the corresponding anchor nuts and secure them with screwdriver.
- Page 6 Bolt c. Mounting with Bracket (Optional) 1. Route network and power cables through wall and allow extending. 2. Loosen the two bolts to rotate bracket to the desired position. 3. Thread all cable through cable gland. 4. Route network cable and power cable and fixe those with wire clip.
- Page 7 7. Drill four holes and insert plastic anchor nuts into them. 8. Insert the supplied screws into the corresponding anchor nuts and secure them with screwdriver. d. Connect all cables b1. Power over Ethernet (PoE) 1. Using a standard RJ-45 network cable, connect the IP Camera to a PoE-enabled Hub / Switch / Router b2.
-
Page 8: Microsoft Os: Use The Software Cd To Install Intelligent Ip Installer
Microsoft OS: Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow those steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1. - Page 9 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
- Page 10 Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser. camera.
- Page 11 Select Safari function → Enter IP address in the web link → enter username and password (default value admin/admin) → The Zavio user interface and Live Image will show up in the middle of the screen. 2. Mobile phone viewing a.
-
Page 12: Image Setup
Messenger 7. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is enabled. 8. Click on the small camera icon. Then, choose “View a new contact's webcam”. Camera at home says: 9. - Page 13 Access to the Internet a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the Information section. (Please go to Setting → Basic → Network→ Information) Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE section (Please go to Setting →...
- Page 14 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.
- Page 15 Memo ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. …………………………………………………………………………………..
- Page 16 Memo ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. …………………………………………………………………………………..
- Page 17 Memo ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. ………………………………………………………………………………….. …………………………………………………………………………………..
