Zavio D5113 Quick Installation Manual

Hide thumbs Also See for D5113:

Advertisement

Quick Links

See also: User Manual
D5113
86085G8000020

Advertisement

loading
Need help?

Need help?

Do you have a question about the D5113 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zavio D5113

Summary of Contents for Zavio D5113

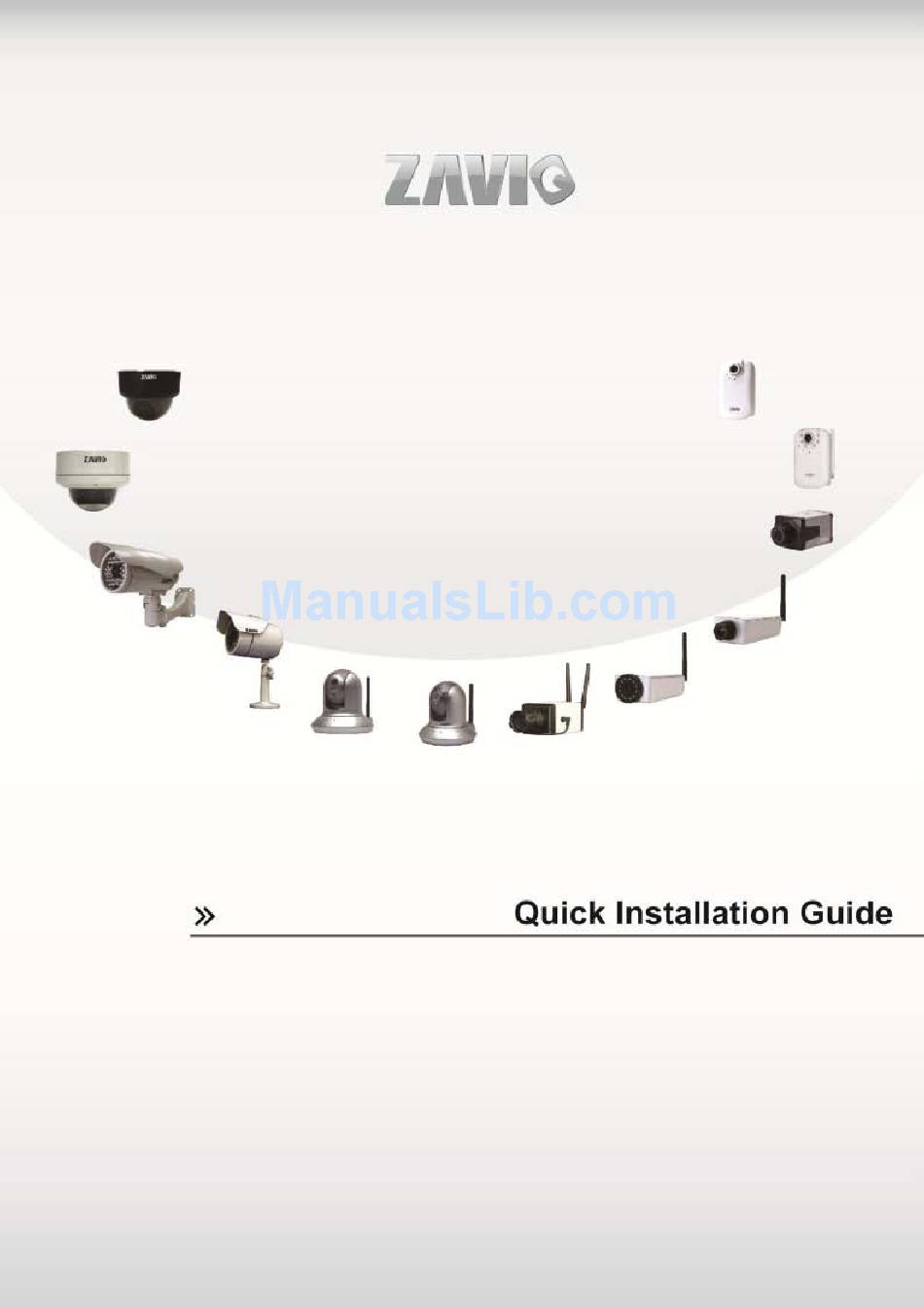

  • Page 1 D5113 86085G8000020...

  • Page 2: Table Of Contents

    Zavio D5113 Quick Installation Guide Please follow the installation steps below to set up your F7210 Box IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 LED Indicator Definition. See P.2 DI/ DO Diagram. See P.2 I/O Terminal Pin Definition.

  • Page 3: Led Indicator Definition. See

    LED Indicator Definition DI/DO Diagram 12V/1A...

  • Page 4: I/O Terminal Pin Definition. See

    I/O Terminal Pin Definition Definition Description Max. V/A 12V DC + 12V DC 1.2W Ground Connected to GND to activate, or leave floating (or unconnected) Digital Input 1 30V DC to deactivate. Uses an NPN transistor with the emitter connected to the GND 100 mA Digital Output 1 pin.
  • Page 5 b. Connect all cables c1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Using a standard RJ-45 network cable, connect the IP Camera to a normal Hub / Switch / Router. c2. Power over Ethernet (PoE) 1.

  • Page 8: Microsoft Os: Use The Software Cd To Install Intelligent Ip Installer. See

    Microsoft OS:Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer b.
  • Page 9 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.

  • Page 10: Mac Os Using Safari Browser. See

    Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser. camera.

  • Page 11: Change The Web Interface Into Your Preferred Language. See

    Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface. Go to “ Setting > System > Maintenance ” . 1. Insert Software CD into your CD-ROM. 2. Browse and select the preferred language from language pack in the Software CD and then click OK. 3.
