Adding An External Modem; Pinouts For Auxiliary Port Modem Cable - Netopia R7200 User Reference Manual

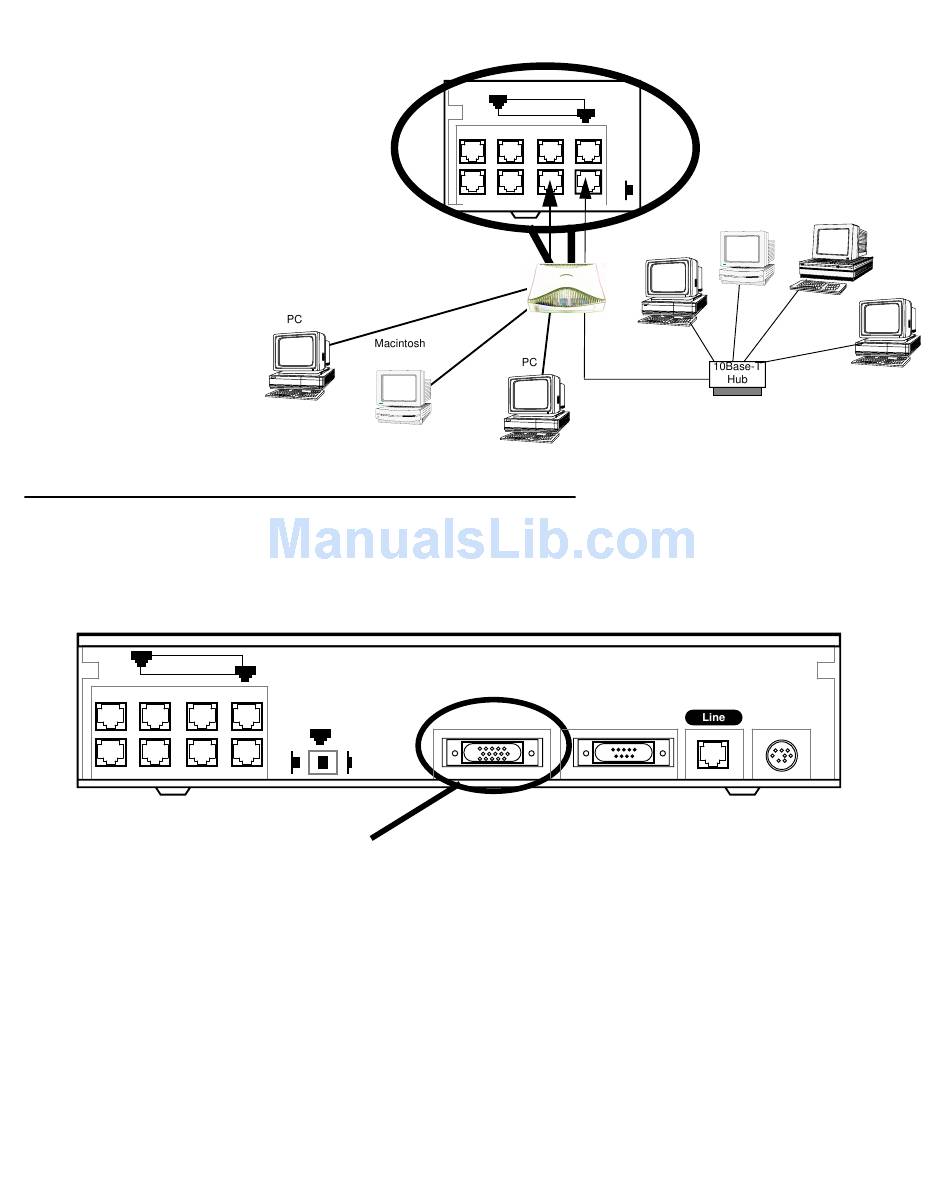

If you add devices connected
through a hub, connect the hub to
Ethernet port number 1 on the
Netopia R7200 SDSL Router and
set the Normal/Uplink crossover
switch to Uplink.

Adding an external modem

You may want to add an external modem to your Auxiliary port. Obtain the special DB-25 external modem cable
(TE6/DB25) either from your reseller or directly from Netopia.
Netopia R7200 Auxiliary port for connecting an external modem
8
Ethernet
By default, the Auxiliary port on your Netopia R7200 is enabled for remote console configuration via an external
asynchronous modem. This means that all you have to do is connect your modem to the Auxiliary port and
configure its settings in the Line Configuration screens under the WAN Configuration menu.
For pinout information on the HD-15 to DB-25 modem cable, see
Appendix F, "Technical Specifications and Safety Information."
1
1
Normal Uplink
Auxiliary connection port
HD-15 (female)
Connecting to Your Local Area Network 4-5
8
Ethernet
1
Nor-
Auxiliary Console
"Pinouts for Auxiliary port modem cable," in
Power
