Adding An External Modem - Netopia R7100-C User Reference Manual

If you add devices connected through a hub, connect the hub to Ethernet port number 1 on the Netopia R7100
and set the Normal/Uplink switch to Uplink.
When there are no more free ports on the 10Base-T hub, the network can be extended using EtherWave, a daisy-chainable
Ethernet solution from Farallon.

Adding an external modem

You may want to add an external modem to your Auxiliary port. Obtain the special DB-25 external modem cable
(TE6/DB25) either from your reseller or directly from Netopia.

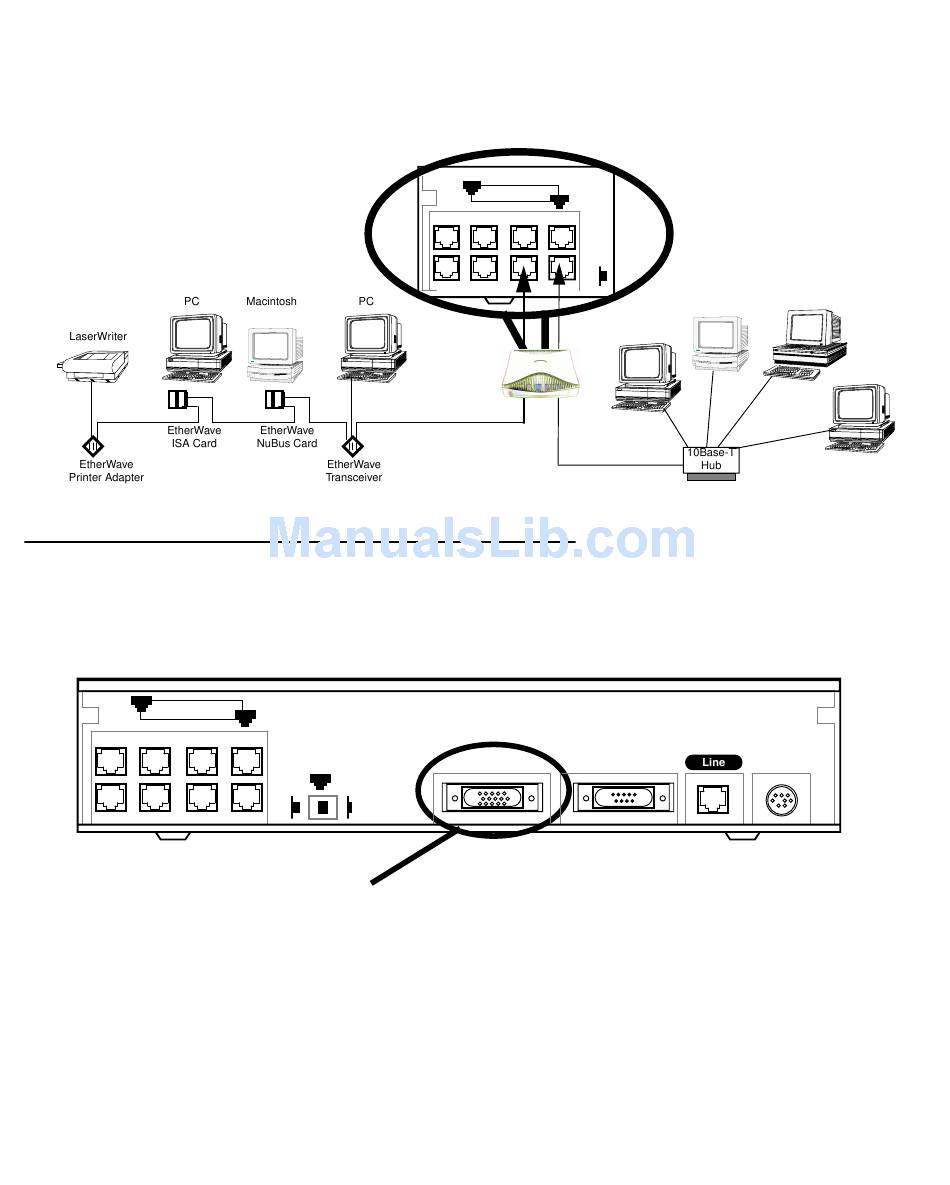

Netopia R7100 Auxiliary port for connecting an external modem
8
Ethernet
By default, the Auxiliary port on your Netopia R7100 is enabled for remote console configuration via an
external asynchronous modem. This means that all you have to do is connect your modem to the Auxiliary port
and configure its settings in the Line Configuration screens under the WAN Configuration menu.
For pinout information on the HD-15 to DB-25 modem cable, see
Appendix F, "Technical Specifications and Safety Information."
