Ikon Profile
1. LED:
DMX
On
DMX input present
MASTER
On
Master Mode
SLAVE
ON
Slave Mode
2. Button:
MENU
To select the programming functions
UP
To go forward in the selected functions
DOWN
To go backward in the selected functions
ENTER
To con rm the selected functions
3. Fuse (T 2A): Protect the unit from damage of over current
4. Display: To show the various menus and the selected function
5. Power In/Out: Power cable input/output connections
6. DMX In/Out: 3-pin XLR connections for DMX 512 operation
7. Flags: Use these to adjust the framing of your gobo
8. Knobs: Move to adjust the beam angle from 15 to 4 0 degree and to focus the gobo
9. Spring: To lock the color gel frame into place
ADJ Products, LLC - www.adj.com - Ikon Profile User Manual Page 4

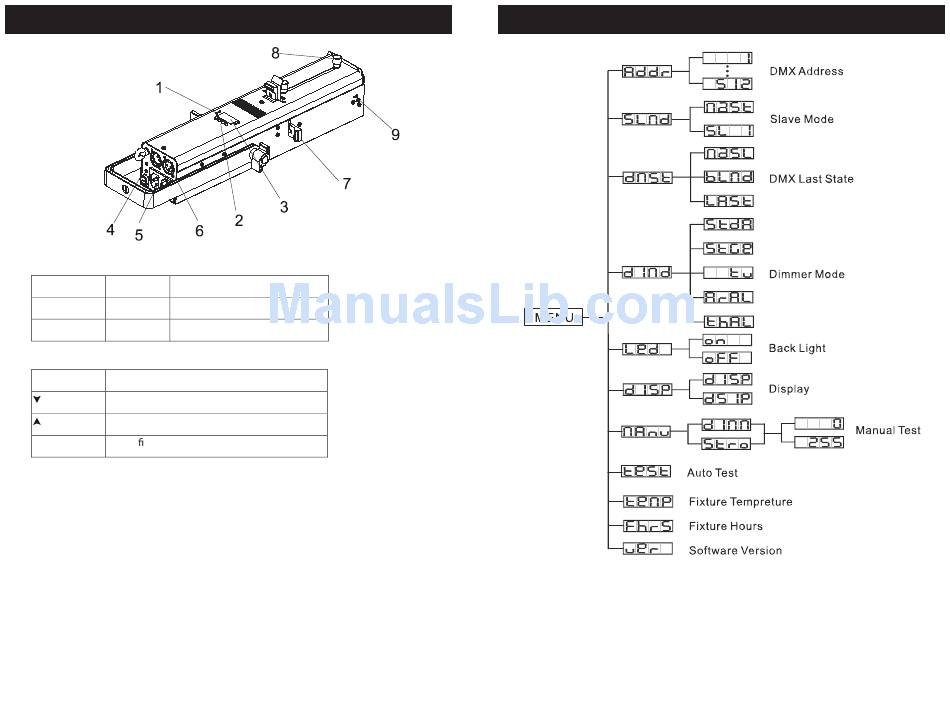

Fixture Layout
Ikon Profile
ADJ Products, LLC - www.adj.com - Ikon Profile User Manual Page 5
System Menu
