The unit should be mounted using a mounting clamp (not provided),
affixing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is firmly fixed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit's weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the fixture. The equip-
ment must be installed by a professional, and it must be installed in a
place where it is out of the reach of people's grasp.
Ikon Profile
(LUX) 15 35200
(LUX) 30 9500
0 1.0
Distance(m)
Ikon Profile
ADJ Products, LLC - www.adj.com - Ikon Profile User Manual Page 12

Installation

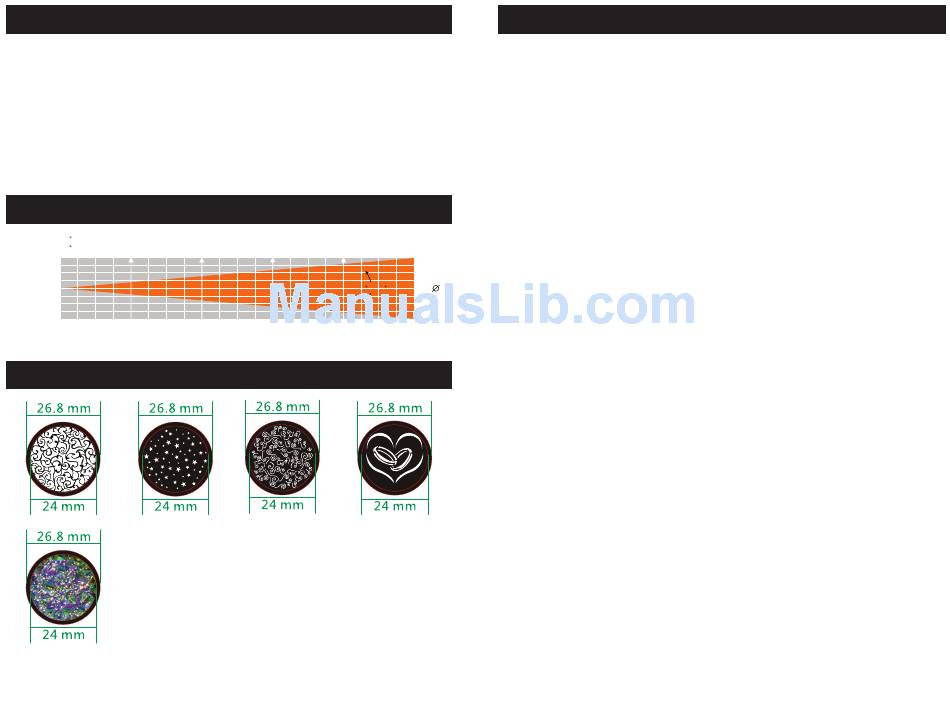

Photometric Chart
8930 3790 2120
2360 985 583
15 ~
2.0 3.0 4.0
Ikon Profile
The UC IR (sold separately) infrared remote gives you control of
various functions (See below). To control the fixture you must aim the
remote at the front of the fixture and be no more than 30 feet away.
The Ikon Profile comes with the Airstream IR remote transmitter.
The transmitter plugs into the headphone jack of your iOS phone
or tablet. To control your IR fixture you must raise the volume to the
maximum on your iOS phone or table and aim the transmitter at the
front of the fixture and be no more than 15 feet away. After you have
purchased the Airstream IR transmitters, the app is a free download
from the app store for your iOS phone or tablet. The app comes with
3 pages of control depending on the IR fixture you are using. Please
see below for IR functions including the corresponding app page.
1280
374
Works with App page 1.
STAND BY - Pressing this button will blackout the fixture.
0m( )
30
FULL ON - This button is invalid for this fixture.
5.0
STROBE - Press and hold this button to activate strobing.
FADE/GOBO - This button is invalid for this fixture.
Gobos
"DIMMER +" and "DIMMER -" - Use these buttons to adjust the out-
put intensity.
1-9 - These buttons are invalid for this fixture.
SOUND ON & OFF - These button's are invalid for this fixture.
SHOW - This button is invalid for this fixture.
ADJ Products, LLC - www.adj.com - Ikon Profile User Manual Page 13
ADJ UC IR Control
