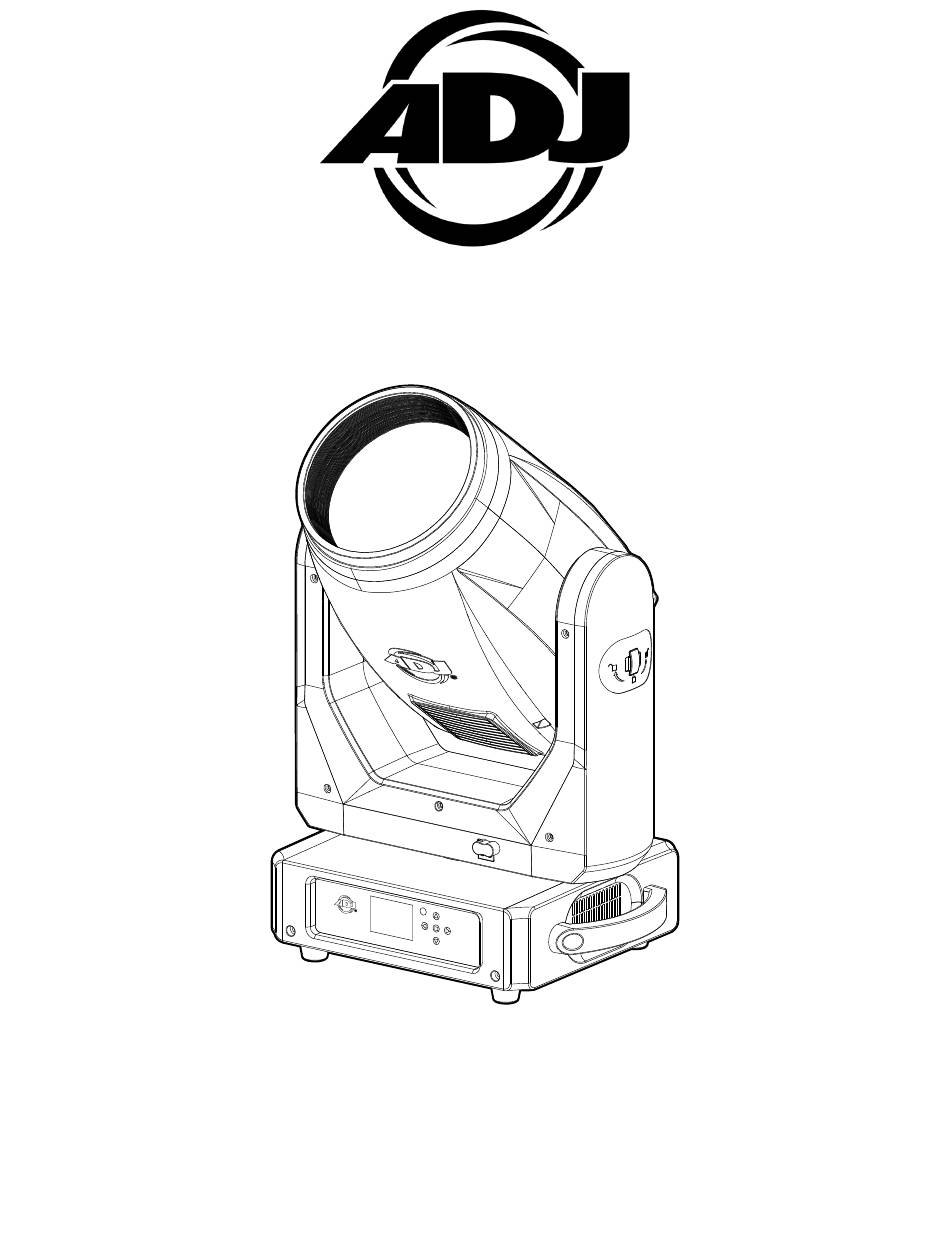

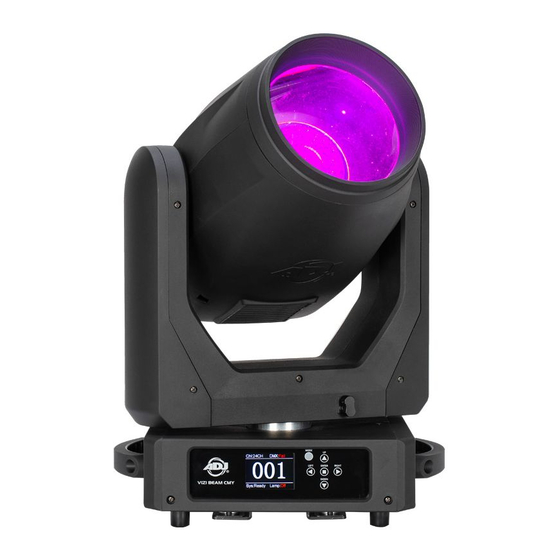

  • Page 1 MO DE V IZ I B E A M C M Y LE FT EN TE RIG HT DO WN 1 1 . . 比 比 0 0 0 0 例 例 VIZI BEAM CMY User Manual...
  • Page 2 ©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.

  • Page 3: Specifications

    C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Discharge Lamp Warning Overview Color Flags and Color Wheels Gobo Wheel Pan-Tilt Lock Lamp Replacement Installation Guidelines System Menu DMX Setup DMX Traits Error Codes Remote Device Management (RDM) Maintenance Guidelines Specifications...

  • Page 4: General Information

    BOX CONTENTS Omega Brackets 1.83M locking power cable CUSTOMER SUPPORT Contact ADJ Service for any product related service and support needs. Also visit forums.adj.com with questions, comments or suggestions. ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-2650 | Fax: 323-832-2941 | support@adj.com...

  • Page 5: L I M I T E D Wa R R A N T Y ( U S A O N Ly )

    All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product.

  • Page 6: Safety Guidelines

    This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! THE FIXTURE EMITS A HIGH-INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER.

  • Page 8: D I S C H A R G E L A M P Wa R N I N G

    D I S C H A R G E L A M P WA R N I N G This fixture is equipped with a DISCHARGE LAMP, which is highly susceptible to damage if mishandled. NEVER touch the lamp with your bare hands, as the oil from your hands will shorten the lamp’s life.
  • Page 9 O V E R V I E W Lens Tilt Lock System Menu Display MODE LEFT RIGHT ENTER DOWN VIZI BEAM CMY MO DE VI ZI BE AM CM LEF T ENT ER RIG HT Pan Lock Carrying Handle Lamp Access Panel...

  • Page 10: Color Wheel

    C O L O R F L A G S A N D C O L O R W H E E L S CMY COLOR FLAGS CYAN MAGENTA YELLOW COLOR WHEEL Pos. 1 Pos. 2 Pos. 3 Pos. 4 Pos.

  • Page 11: G O B O W H E E L

    G O B O W H E E L Pos. 1 Pos. 2 Pos. 3 Pos. 4 Pos. 5 Pos. 6 Pos. 7 Pos. 8 Pos. 9 Pos. 10 Pos. 11 Pos. 12 Pos. 13 Pos. 14 Pos. 15 Pos. 16 Pos.
  • Page 12 PA N - T I LT L O C K S Before removing lamp, place fixture on a stable flat surface in an INDOOR DUST FREE location. Ensure moving head is locked into a right angle position with both PAN and TILT locks engaged. Tilt Lock Pan Lock Pan Unlock...

  • Page 13: Lamp Replacement

    L A M P R E P L A C E M E N T Caution: Always replace with the exact same type of lamp and fuse, unless otherwise specified by an authorized ADJ service technician. Replacing with anything other than the specified part can damage your unit and will void your manufacturer’s warranty.

  • Page 14: Electrical Connections

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep the fixture a minimum of 0.7 feet (0.2m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should handle all electrical connections and/or installations.
  • Page 15 I N S TA L L AT I O N G U I D E L I N E S OMEGA BRACKETS INSTALLATION Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener ¼...
  • Page 16 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture.
  • Page 17 I N S TA L L AT I O N G U I D E L I N E S POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers, which are focused directly towards the exterior housing and/or penetrate the front lens opening of Elation lighting fixtures, can cause severe internal damage including burning of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wiring,...

  • Page 18: System Menu

    S Y S T E M M E N U The Vizi Beam CMY features a display screen with a 6-button control pad, which can be used to easily adjust any device settings. • The MODE button cycles through main menu options, or returns to the previous menu without making changes.
  • Page 19 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION Shall be used to set the units starting DMX address channel. Depending on set DMX mode, unit shall not allow to 001 - 512 DMX Address be addressed any higher that will not...
  • Page 20 S Y S T E M M E N U MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION 000-255 Tilt 000-255 Cyan 000-255 Magenta 000-255 Yellow 000-255 Color 000-255 Set Manual Control values remain Manual Multicolor Effect 000-255 set when no DMX signal is present, Control including through a power cycle.
  • Page 21 S Y S T E M M E N U DMX Settings Select DMX Settings, and press ENTER button to confirm. Use UP/DOWN buttons to select DMX Address, DMX CH Mode, or No DMX Status. DMX Address — DMX512 address setting Select DMX Address, and press ENTER button to confirm.
  • Page 22 S Y S T E M M E N U Pan/Tilt Reset Select Pan/Tilt Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store. Personality (continued) Color Reset Select Color Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.
  • Page 23 S Y S T E M M E N U Manual Control Select Manual Control, and press ENTER button to confirm. Current channel will show on the display. Use UP/DOWN button to select Pan, Tilt, Color, Gobo, Prism1, Prism2, RPrism, Shutter, Dimmer, Dimmer Fine, Focus, or Frost, press ENTER button to confirm, then Use UP/DOWN button to adjust value 000 to 255, press ENTER button to store, and the fixture will run as the channel value indicates.

  • Page 24: D M X S E T U P

    D M X S E T U P Power Supply: The ADJ Vizi Beam CMY incorporates an electronic ballast, which automatically senses the voltage when it is plugged into the power source. With the electronic ballast, this unit can be plugged in anywhere.
  • Page 25 2 and 3 of a male XLR connector (DATA + and DATA -). Insert this unit into the female XLR connector of the last unit in one’s daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

  • Page 26: Dmx Traits

    D M X T R A I T S CHANNEL DMX VALUE FUNCTION 20CH 24CH 000-255 Pan Fine 000-255 Tilt 000-255 000-255 Tilt Fine Cyan 0 -100% 000-255 Magenta 0 - 100% 000-255 000-255 Yellow 0 - 100% Color 000-003 White 004-007 Color1...
  • Page 27 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 20CH 24CH Color Macros - CMY and Color Wheel 000-031 032-039 Macro1 040-047 Macro2 048-055 Macro3 056-063 Macro4 064-071 Macro5 072-079 Macro6 080-087 Macro7 088-095 Macro8 096-103 Macro9 104-111 Macro10...
  • Page 28 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 20CH 24CH Static Gobo 000-007 Open 008-010 Gobo1 011-013 Gobo2 014-016 Gobo3 017-019 Gobo4 020-022 Gobo5 023-025 Gobo6 026-028 Gobo7 029-031 Gobo8 032-034 Gobo9 035-037 Gobo10 038-040 Gobo11 041-043 Gobo12...
  • Page 29 D M X T R A I T S CHANNEL DMX VALUE FUNCTION 20CH 24CH Prism2 000-007 Close 008-255 Open Prism2 Rotation 000-127 0% ~ 100% 128-189 Clockwise Rotation Fast to Slow 190-193 Stop 194-255 Counter-Clockwise Rotation Slow to Fast Shutter 000-031 Close...

  • Page 30: Error Group

    E R R O R C O D E S When power is applied, the unit will automatically enter a “reset/test” mode. This mode brings all the internal motors to home position. If there is an internal problem with one or more of the motors, an error code will flash in the display in the form of “XXer”, where “XX”...

  • Page 31: R E M O T E D E V I C E M A N A G E M E N T ( R D M )

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

  • Page 32: Maintenance

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.
  • Page 33 S P E C I F I C AT I O N S Light Source: Control: Protocols: DMX512 & RDM OSRAM Sirius HRI 310W PRO Discharge Lamp Control Mode: DMX512 & Manual (On-board (6,000 hr.) Controls) Color temperature: 7850K (+/- 500K) 2 DMX Channel Modes: 14/16 Channels CRI: 86 (+/- 5) Color LCD display with 4-button function menu...

  • Page 34: Dimension Drawings

    D I M E N S I O N D R AW I N G S Drawings not to scale Ø16.4in. [Ø417mm] 18.4in. [468mm] 2.0in. [51mm] 1 1 . . 比 比 0 0 0 0 例 例 1 1 . . 比...

  • Page 35: Fcc Statement

    O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM VIZ315 1237000338 ADJ Vizi Beam CMY TRIGGER CLAMP N/A Heavy Duty Wrap Around Hook Style Clamp SIP126 5 ft. (1.5m) IP66 Twist Lock Power Link Cable AC5PDMX5PRO 5 ft.
