ADJ Ikon Profile User Instructions page 6

Ikon Profile
Channel Value
1
0 - 7
8 - 15
16 - 131
132 - 139
140 - 181
182 - 189
190 - 231
232 - 239
240 - 247
248 - 255
2 0 - 255
3
0 - 20
21 - 40
41 - 60
61 - 80
81 - 100
101 - 255
Ikon Profile
ADJ Products, LLC - www.adj.com - Ikon Profile User Manual Page 10
DMX Values & Traits
Function
STROBING/SHUTTER
CLOSED
OPEN
STROBE SLOW - FAST
OPEN
FAST CLOSE - SLOW OPEN
OPEN
SLOW CLOSE - FAST OPEN
OPEN
RANDOM STROBE
OPEN
MASTER DIMMER 0% - 100%
DIMMER MODE
STANDARD
STAGE
TV
ARCHITECTURAL
THEATRE
DEFAULT DIMMER SETTING

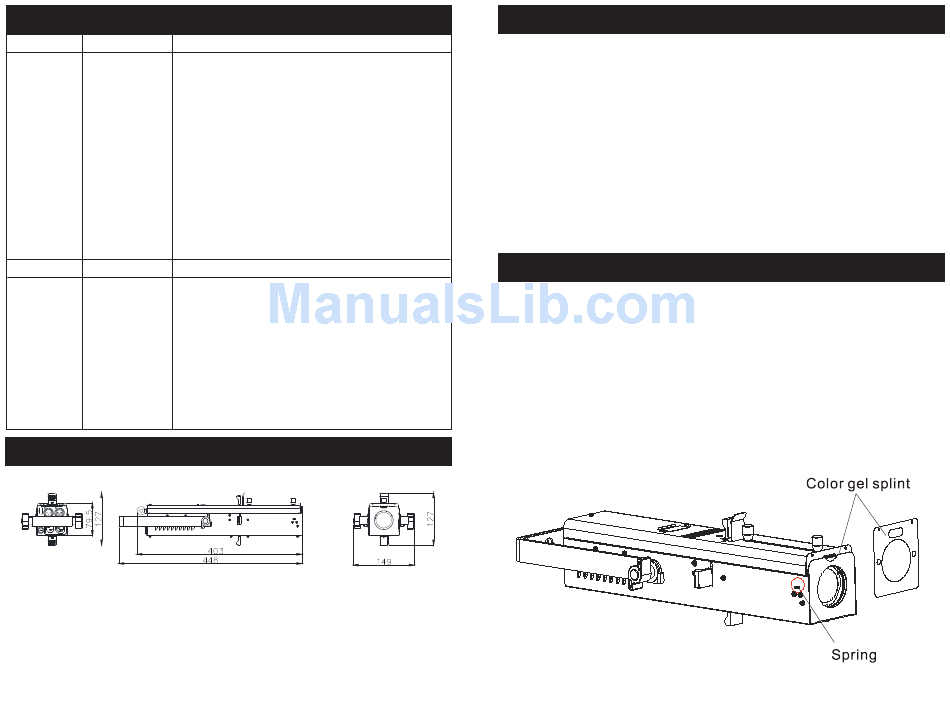

CAD Drawing
Ikon Profile
The Ikon Profile gobo can be interchanged at any time and allows
you to customize your system.
To replace gobo;
1. Gently slide the gobo housing out of the top of unit. The gobo
housing is located in front of the top flag.
2. Once the gobo housing has been removed, remove the retaining
ring that holds the gobo in. This can easily be done using needle
nose pliers.
3. Remove and replace the gobo with your desired replacement.
Reinsert the retainer ring, and make sure the ring rests firmly
against the gobo.
4. Slide the gobo assembly back into place.
Ikon Profile
A color gel (not included) can be added to the front of the Ikon Profile
and can be interchanged at any time. This allows you to customize
your system.
To add a color gel;
1. Locate the color gel frame at the front of the unit. Slide the spring
lever back and slide the gel frame out of the holder.
2. Once the gel frame has been removed slide your desired color gel
into the middle of the frame.
3. Slide the spring back and slide the gel frame into place.
ADJ Products, LLC - www.adj.com - Ikon Profile User Manual Page 11
Gobo Replacement
Adding a Color Gel
