Ikon Profile WW
1. LED:
DMX
PRIMARY
SECONDRY
2. Button:
MENU
UP
DOWN
ENTER
3. Fuse (T 2A): Protects the unit from overcurrent damage.
4. Display: Shows the various menus and selected functions.
5. Power In/Out: Power cable input/output connections.
6. DMX In/Out: 3-pin XLR connections the DMX-512 operation.
7. Flags: Used to adjust the gobo framing.
8. Knobs: Used to adjust the beam angle and focus the gobo.
9. Spring: Locks the color gel frame into place.
ADJ Products, LLC - www.adj.com - Ikon Profile WW User Manual Page 5
On
DMX input present
On
Primary Mode
On
Secondary Mode
Select the displayed function
Scroll backward through function list
Scroll forward through function list
Confirm the selected function

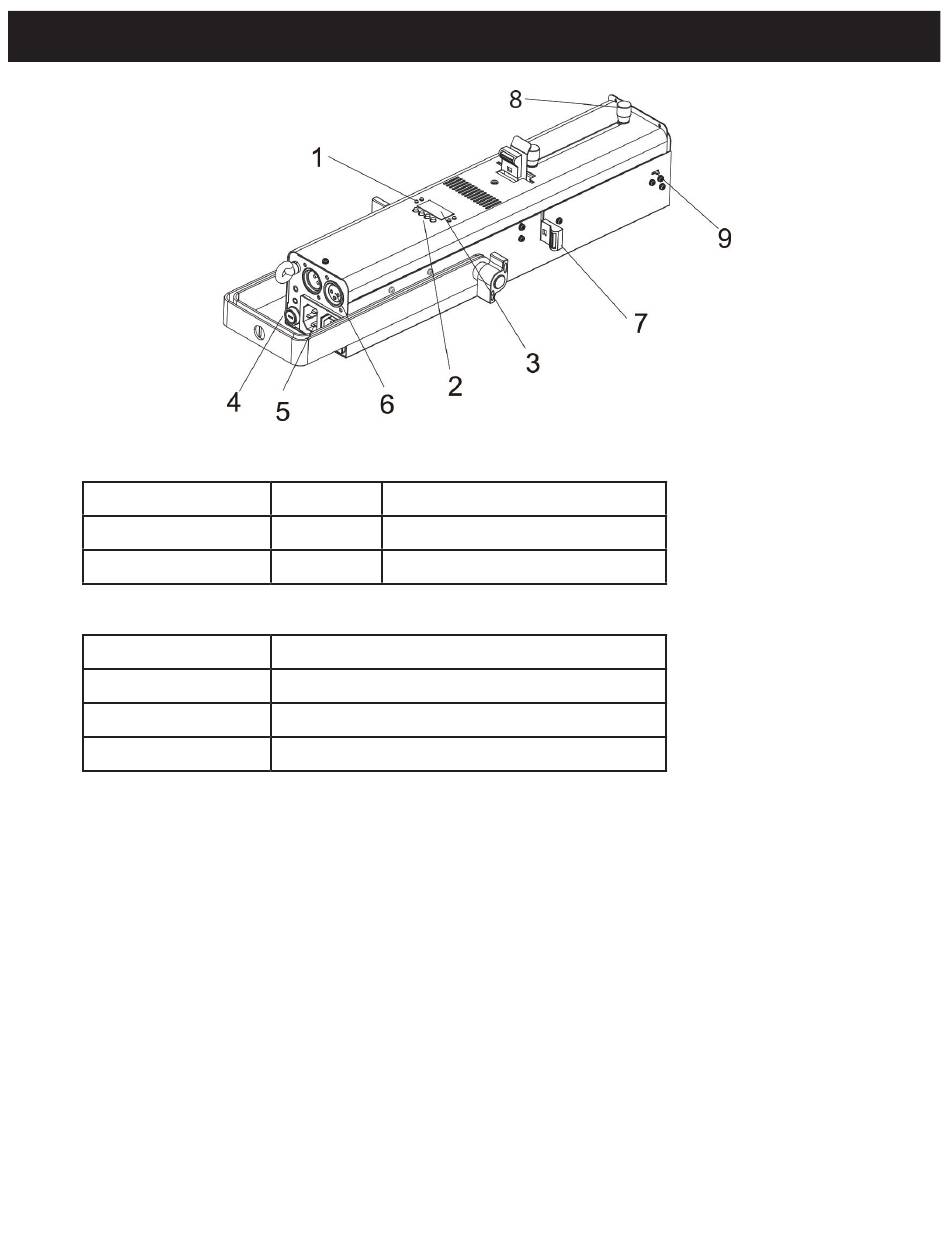

Fixture Layout
