User Manual

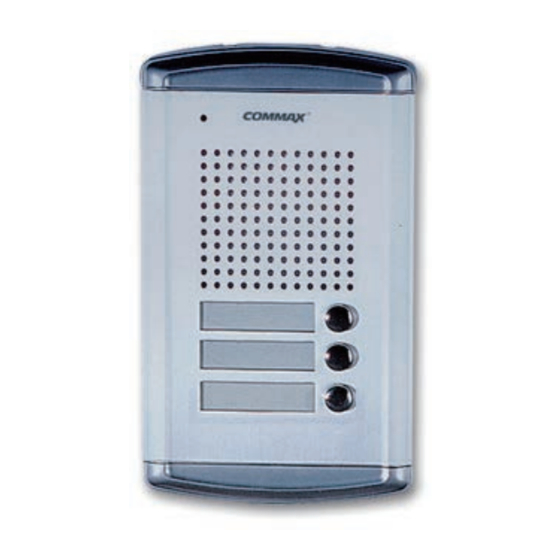

Door Unit DR-2A3N
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
Advertisement
Related Manuals for Commax DR-2A3N
Summary of Contents for Commax DR-2A3N
-
Page 1: User Manual
User Manual Door Unit DR-2A3N • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. - Page 2 Overview ① Microphone : Transmits visitor’s voice.(Outdoor ⇨ Indoor) ② Call Button : Call to household. ③ Speaker : Transmits householder’s voice.(Indoor ⇨ Outdoor) ④ Name Tag : Name of each household. ① ③ ④ ②...
-
Page 3: Wiring And Installation
Wiring and Installation 1. Fix the hole of bracket with wall hole. 2. Connect Room station cables as appeared in the figure below. 3. Put the door unit inside of a back box as shown in the figure below. 4. Connect Door Release cable as appeared in the figure below. 5. - Page 4 ROOM STATION 1 ROOM STATION 2 DR-2A3N ROOM STATION 3...
-
Page 5: Specification
Contents BOLT/NUT/WRENCH 2.5# DR-2A3N Manual BOLT/NUT/WRENCH 3X30 Specification Model No. DR-2A3N Rated voltage/Power consumption (supplied from Room Unit) Wiring 3 Wired Installation Flush mounted type Dimension 123 X 210 X 16(59)mm Operating Temp. -10°C ~ +50°C... - Page 6 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com Printed In Korea / 2011.07.105 PM132A3N0010...
