User Manual
DOOR STATION DR-2GN / 2GNR
• Thank you for purchasing COMMAX products.
• Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
• The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Commax DR-2GN
Summary of Contents for Commax DR-2GN
-
Page 1: User Manual
User Manual DOOR STATION DR-2GN / 2GNR • Thank you for purchasing COMMAX products. • Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. • The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
www.safemag.ru Contents 1. Introdution............. 3 2. Important Safeguard ........4 3. Overview............5 4. Wiring & Installation ........7 5. Specifications..........10 www.safemag.ru... -
Page 3: Introdution
The model number is located on the bottom and record the serial number in the space provided below(available). Refer to these numbers whenever you call upon your COMMAX dealer regarding this product. Model No. -
Page 4: Important Safeguard
www.safemag.ru 2. Important Safeguards ▲ Damage Requiring Service: This equipment from the power source and source and refer servicing to qualified service personnel under the following conditions: ⓐ when the power is damaged. ⓑ if liquid has been spiled or objects have hallen into the unit ⓒ... -
Page 5: Overview

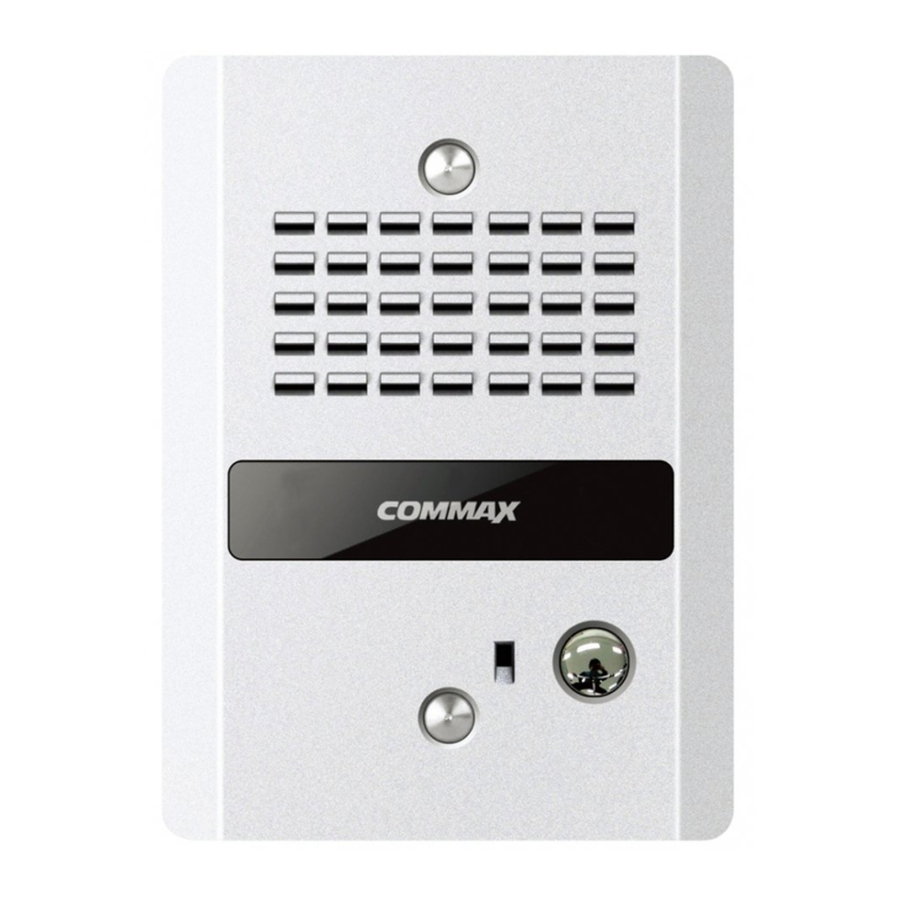

www.safemag.ru 3. Overview www.safemag.ru... - Page 6 www.safemag.ru Contents Name 1 Front case 2 Stationary hole 4 Operation Status LED 3 Speaker trasmits visitor’ s voice (outdoor->indoor) 5 Microphone transmits householder’ s voice(indoor-outdoor) 6 Call button 7 Door Release CABLE (+) WHITE, (-) BLACK (RED, BLUE Room station) 8 CABLE www.safemag.ru...
-
Page 7: Wiring & Installation
www.safemag.ru 4. Wiring & Installation 1. Connect Room station cables as appeared in the figure.(polarity with care) 2. Connect Door Release cable as appeared in the figure. (applied only for DR-2GNR) 3. Check to see whether the system functions. www.safemag.ru... - Page 8 www.safemag.ru 4. If there is no hole on the wall, you can allocate the wire on the groove around the case as appeared in the figure. www.safemag.ru...
- Page 9 www.safemag.ru 5. Place the system on the wall and mount with screws supplied. www.safemag.ru...
-
Page 10: Specifications
5. Specification Model DR-2GN/2GNR specification Wiring System (household) DOOR PHONE 2-wire system Communication method Synchronous Call System Rated voltage (Supplied from the DOOR PHONE) Operating Temperature -10℃ ~ +40℃ 93.5(W) × 126(H) × 18(D) Dimensions Weight (g) Communication distance 50m /ø0.8... - Page 11 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. : Tel.; +82-31-7393-540~550 Fax.; +82-31-745-2133 Web site : www.commax.com PM132GN00010 Printed In Korea / 2011.07.105 www.safemag.ru...
