  • Page 1 www.jbctools.com SOLDER FEED STATION...

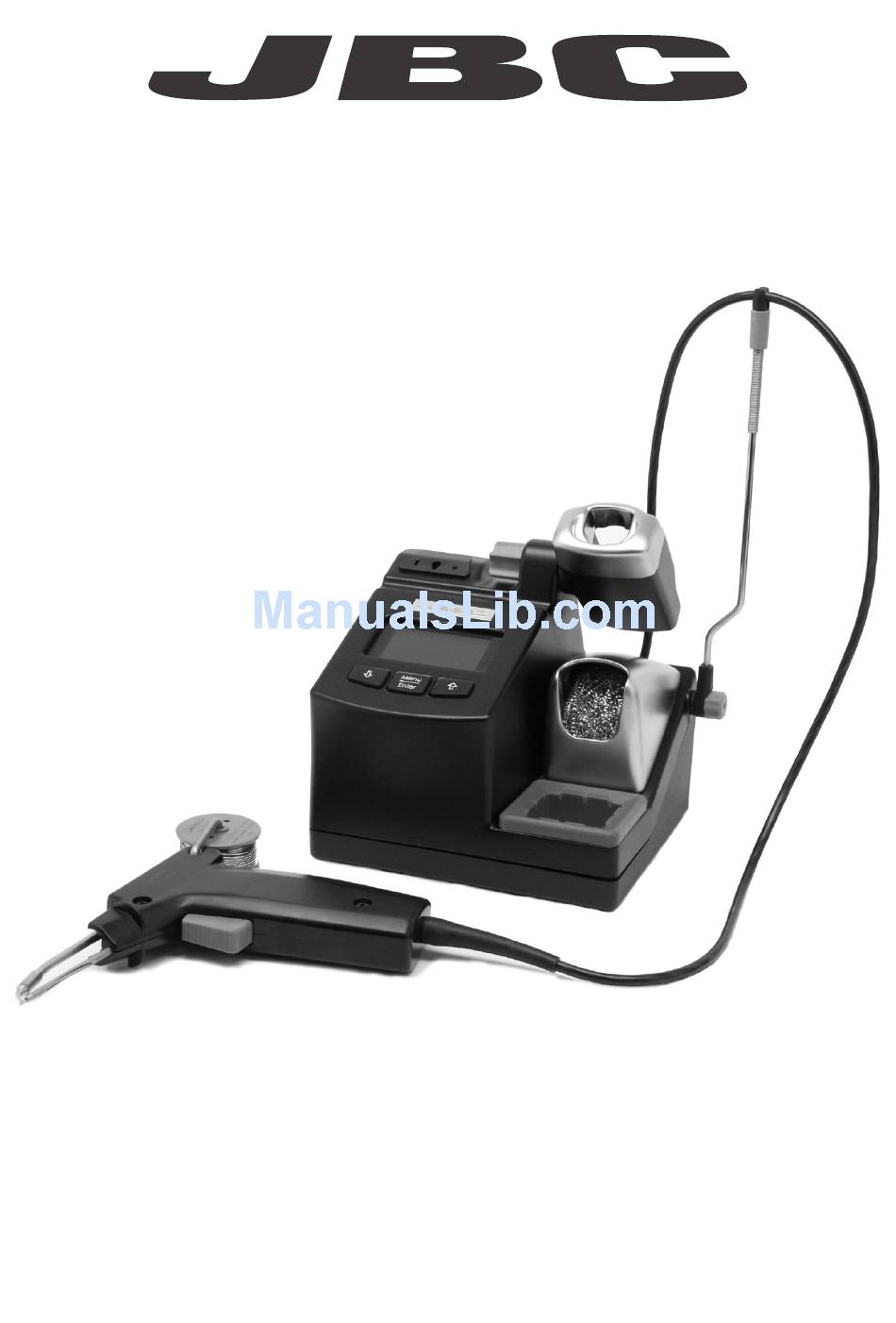

  • Page 2 CF / SOLDER FEED STATION CF-2C / CF-1C / CF-9C AP130-A Control Unit Solder Feed Iron 0006559 CL6210 Brass Wool S0354 Sponge Feeding tube 0002801 Reel POWER CORD MANUAL w w w.jbctools.com SOLDER FEED STATION...
  • Page 3: Installation

    INSTALLATION AP130-A Solder Feed Iron CONTROL UNIT Main switch Power Cord Socket Equipotential connection USB-B connector to PC: - Update station software - Create graphs of the soldering process - Manage and monitor parameters via PC Cable collector PART NAMES Intelligent Heat Management Process Control Tip Cleaning System...
  • Page 4: Adjustable Stand

    CF / SOLDER FEED STATION ADJUSTABLE STAND The tool stand is easily adjustable. Loosen the tightening knob to adjust the position. CABLE COLLECTOR Loosen the tightening knob to adjust the position Slide the green piece down to place the wire.
  • Page 5: Cleaning Options

    CLEANING OPTIONS Full set of clean option: sponge, metal wool and brush S0331 Sponge S0354 Sponge The smoothest cleaning method. The sponge has to be kept wet (not soaked) using distilled water. CL6205 Inox Wool CL6220 Brushes Provides a deeper cleaning on the tip. More agressive on the tip than the wool.
  • Page 6: Changing The Cartridge

    CF / SOLDER FEED STATION SOLDER FEED IRON AP130-A Solder Feed Iron The AP130-A offers a ‘third hand’ by feeding soldering wire of diameters 0.8 to 1 mm. Specifically suitable for high-volume soldering jobs, and whenever an extra hand is needed.
  • Page 7 REPLACING THE REEL Press Press the empty reel to remove it and replace it Before fitting a new reel, pull out the solder with a new one. remaining inside the solder direction tube. Insert the solder into its hole checking that the wire becomes straight.
  • Page 8: Control Screen

    CF / SOLDER FEED STATION CONTROL SCREEN Selected temp. 3 5 0 Tip temperature P o w e r 1 0 % % Instant power supplied to the tool Decrease & Increase & move up move down Access Menu &...
  • Page 9: Heat Management

    HEAT MANAGEMENT JBC stations intelligently manage the tool temperature and it helps to extend the tip life: Expected life (hours)* Temp (ºC) Sleep Working Temp Temp Work mode: Lift tool from the stand and the tool tip heats up to the selected temperature.
  • Page 10: Maintenance

    REPAIR - Repairs should be performed only by a specialist. Otherwise JBC can not rule out the risk of accident. - JBC offers you a professional after-sales service for your equipment.
  • Page 11 SAFETY It is imperative to meet the following safety guidelines to protect health and prevent electric shock, injury, fire or explosions. - Keep children and non-trained personnel away from the equipment. - The mains cable must be plugged into approved bases. - The tool should be placed in the stand when not in use.
  • Page 12: Technical Specifications

    - Output Peak Power: 130W. - Safety transformer, mains separator and double isolation. - CF-2C 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. - CF-1C 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. - CF-9C 100V 50/60Hz. Input fuse: 2A. Output: 23,5V.
